纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.523[02]) - RIPPER (RP) - 'RECO' - OPTIONAL CODE 76074876 - VERSION (03) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
195 次

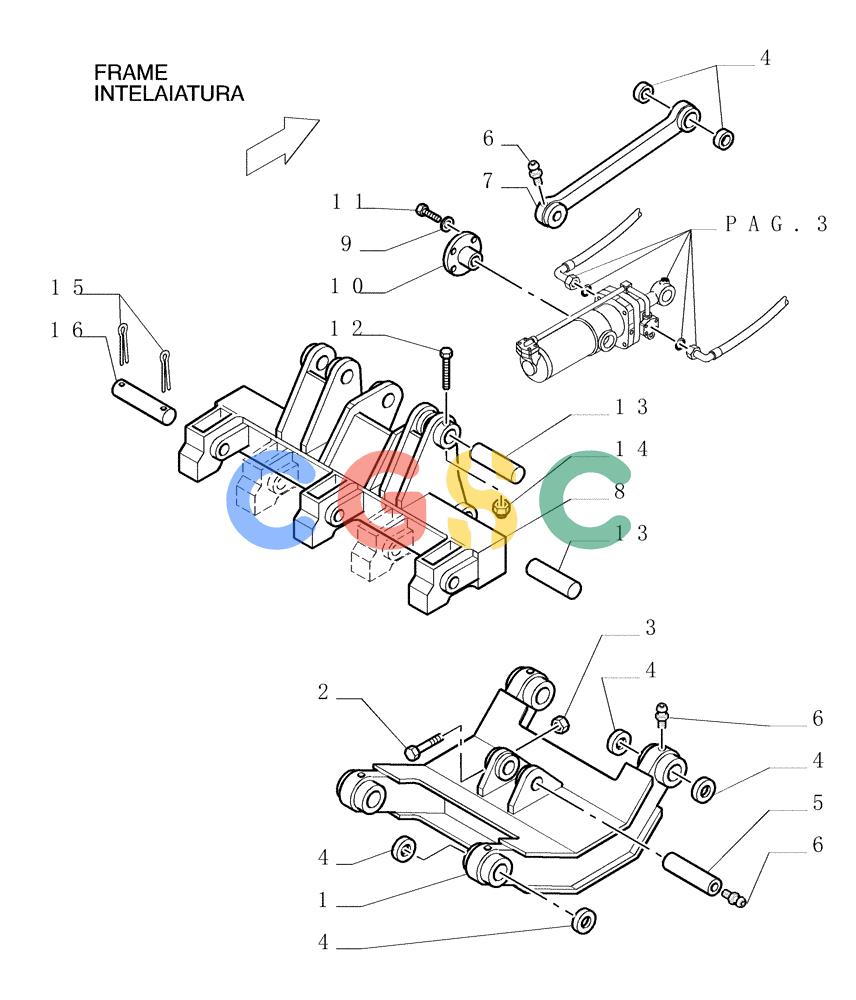

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76031519 | [1] | FRAME | LEC- LOWER |
| 2. | 70929970 | [1] | SCREW | LEC Superseded by part number: 426-1296 |
| 3. | 70924450 | [1] | NUT | LEC |
| 4. | 76031521 | [16] | BUSHING | LEC |
| 5. | 76031522 | [1] | LOCK PIN | LEC |
| 6. | 13407211 | [11] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 7. | 76031523 | [2] | ARM | LEC |
| 8. | 76031524 | [1] | BAR | LEC |
| 9. | 70900703 | [8] | WASHER | LEC |
| 10. | 76031526 | [2] | LOCK PIN | LEC |
| 11. | 70921411 | [8] | SCREW | LEC Superseded by part number: 88685 |
| 12. | 11115831 | [2] | BOLT,Hex, M14 x 40, 10.9, Full Thd | LEC12X1.5X130 Superseded by part number: 87555733 |
| 13. | 76031516 | [4] | LOCK PIN | LEC |
| 14. | 12577521 | [2] | NUT,M12 x 1.75 | LEC |
| 15. | 76031528 | [6] | COTTER PIN | LEC |
| 16. | 76031529 | [3] | LOCK PIN | LEC |
