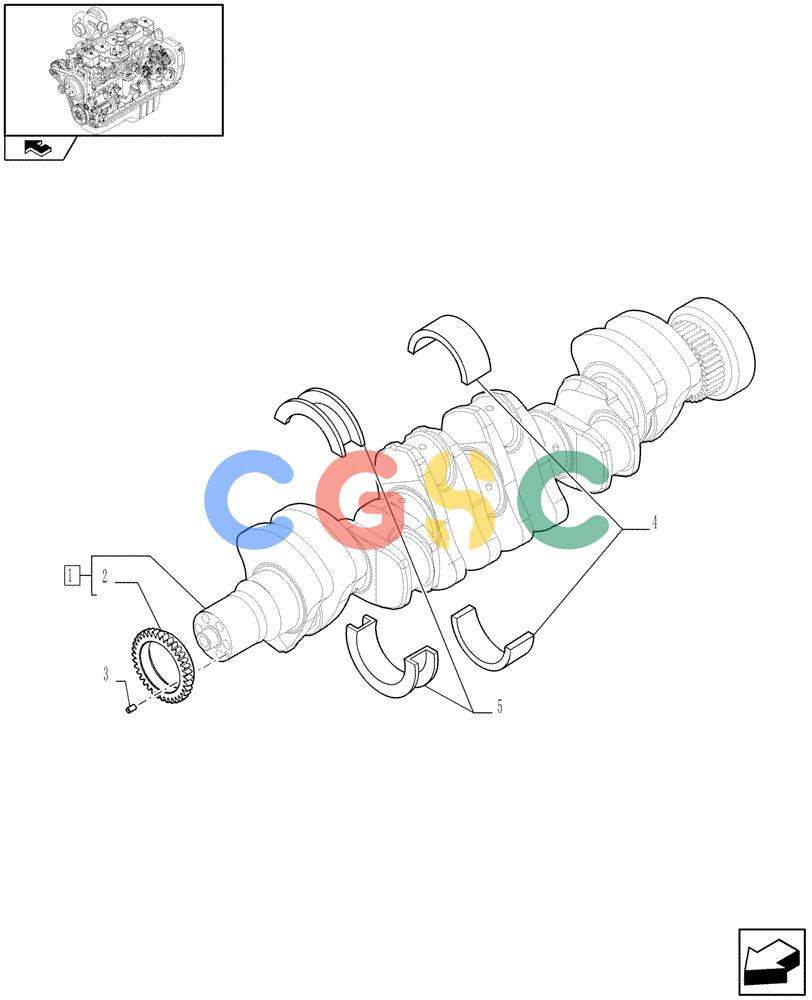

神钢零件查询(F4GE9684D J603) - ENGINE - 504360957 - 84152357 (1/14-12/14) (0.08.0) - CRANKSHAFT (2853820) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
560 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852306 | [1] | CRANKSHAFT | TORASSY Superseded by part number: 504203872 |
| 2. | 4893386 | [1] | GEAR,36 T | TOR |
| 3. | 4899046 | [1] | DOWEL,M6 x 9 L | TOR |
| 4. | 2995787 | [6] | SET OF STD MAIN BRGS | TOR |
| 4. | 2995788 | [6] | SET OF MAIN BRGS-.25 | TOR Superseded by part number: |
| 4. | 2995789 | [6] | SET OF MAIN BRGS - | TOR |
| 5. | 2995784 | [1] | SET OF THRUST WASHER | TOR |
| 5. | 2995785 | [1] | SET OF MAIN BRGS-.25 | TOR |
| 5. | 2995786 | [1] | SET OF THRUST WASHER | TOR- 0,500 |
