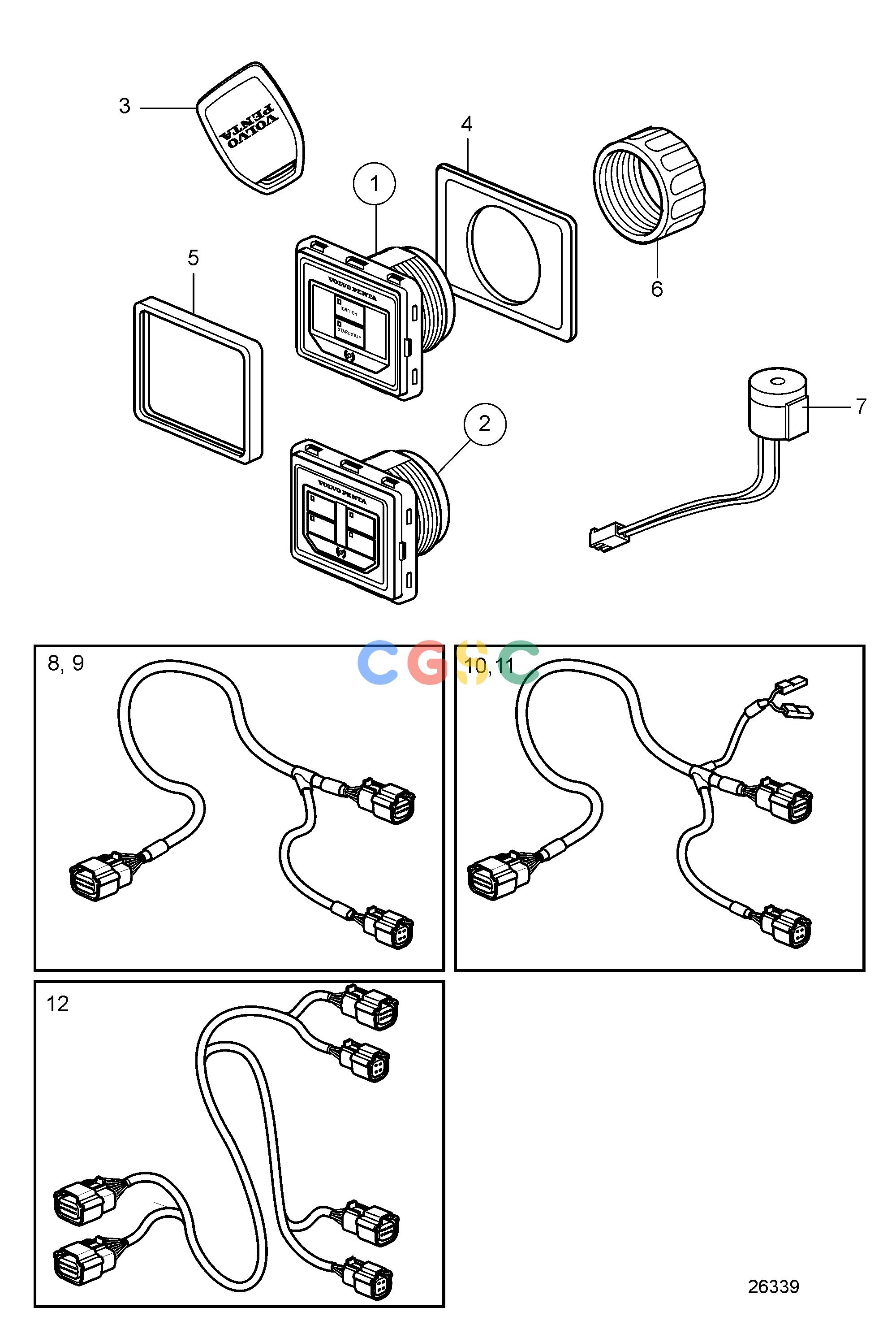

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GElectrical Systeme-Key, EVC-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
759 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22499599
|
[1] |
Panel
|
Single panel
|
| 2. |
22499602
|
[1] |
Panel
|
Twin panel
|
| 3. |
21758351
|
[2] |
Key
|
|
| 4. |
21758360
|
[1] |
Gasket
|
|
| 5. |
21467057
|
[1] |
Frame
|
|
| 6. |
3808134
|
[1] |
Nut
|
|
| 7. |
21358227
|
[1] |
Buzzer
|
|
| 8. |
21693204
|
[1] |
Cable
|
e-Key single harness
|
| 9. |
21693208
|
[1] |
Cable
|
e-Key twin harness
|
| 10. |
21693202
|
[1] |
Cable
|
e-Key single harness with Lanyard
|
| 11. |
21693206
|
[1] |
Cable
|
e-Key twin harness with Lanyard
|
| 12. |
21876876
|
[1] |
Cable
|
e-Key quad harness
|
