纽荷兰零件查询(DC180.B) - CRAWLER DOZER TIER 2 (3/03-) (9.556[01]) - DRSWBAR H.D. HD LONG - OPTIONAL CODE 784256041 - VERSION (01-02) New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
310 次

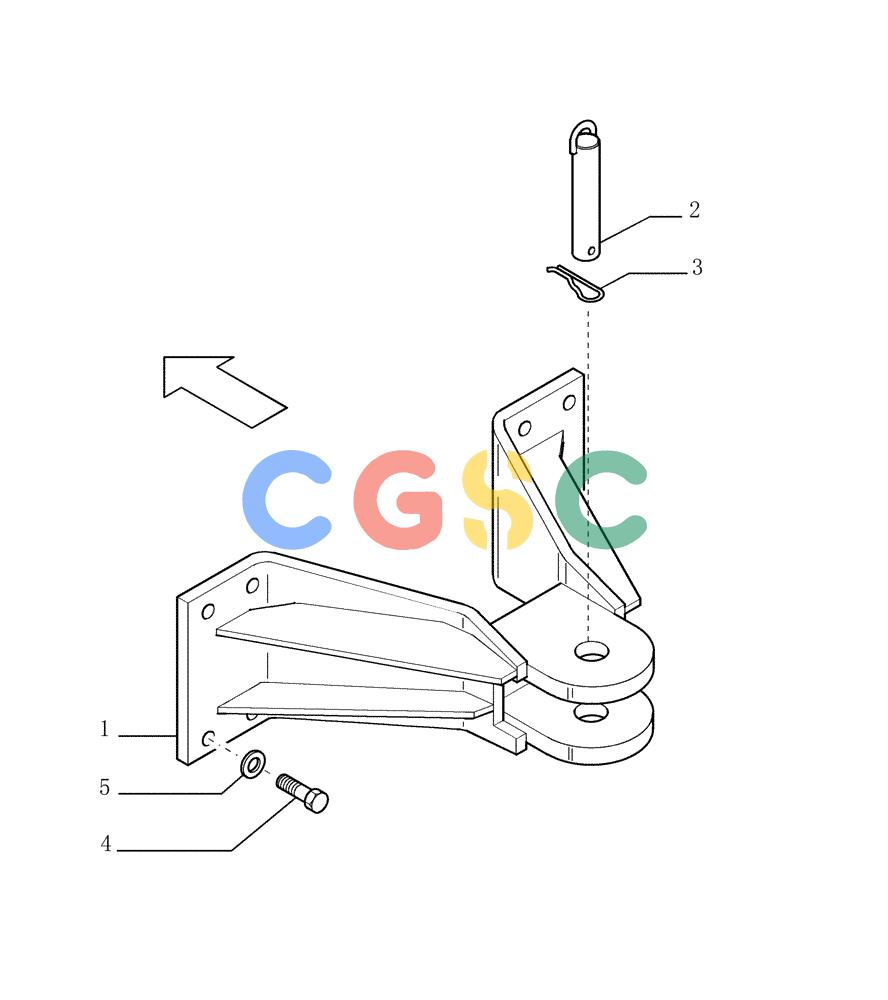

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76092096 | [1] | TOW HOOK | LEC Superseded by part number: 76090682 |
| 2. | 79016702 | [1] | PIN | LEC |
| 3. | 8268534 | [1] | ROLL PIN,7mm OD | LEC |
| 4. | 15997231 | [8] | BOLT,Hex, M24 x 2 x 65mm, Cl 10.9, Full Thd | BHB Superseded by part number: 15997237 |
| 5. | 10517671 | [8] | LOCK WASHER,24.3mm ID x 39.8mm OD x 5.5mm Thk | MOD24.3X5.5 Superseded by part number: 10572571 |
