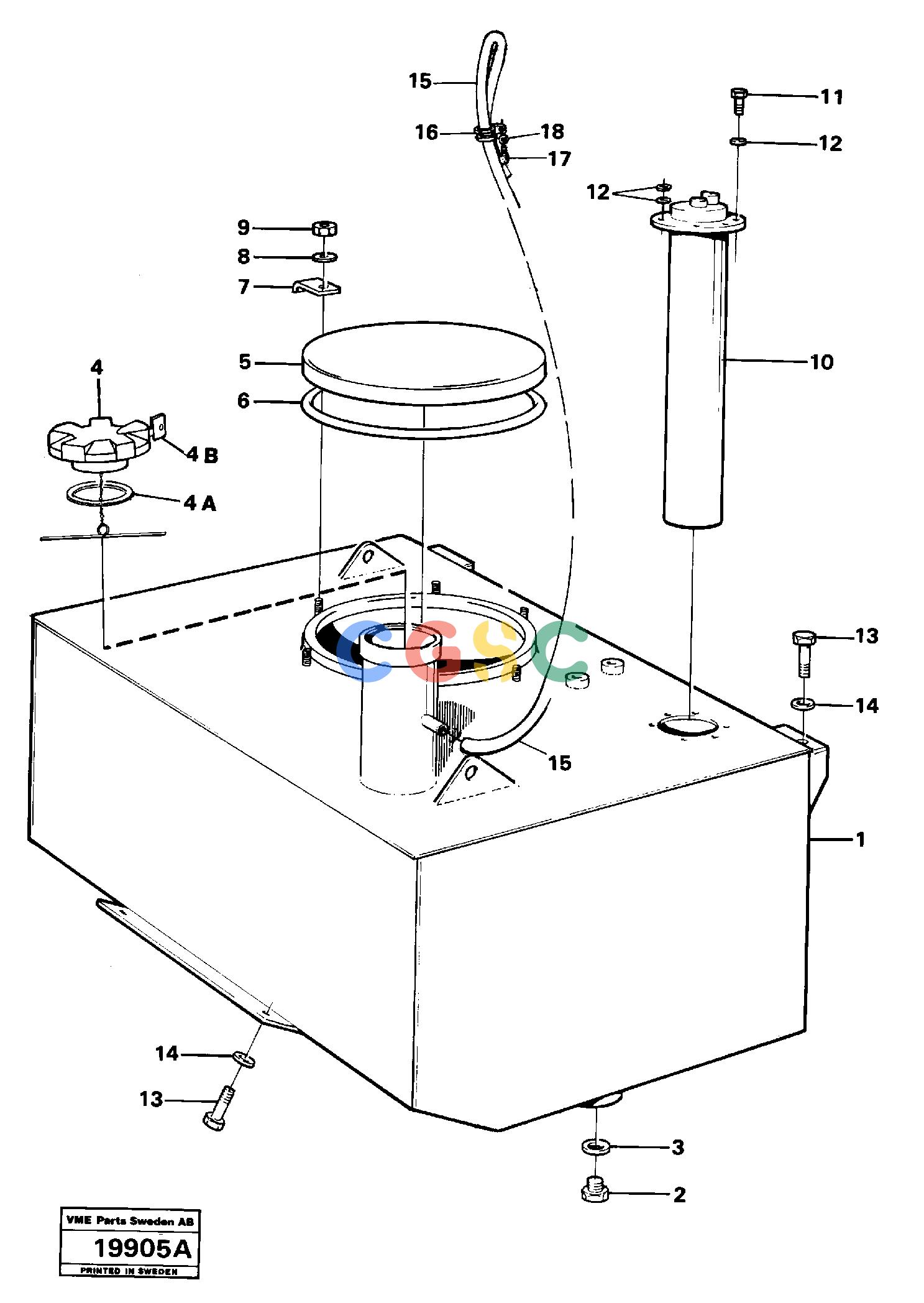

沃尔沃零件查询L50 Fuel tankL50 S/N -6400/-60300 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
470 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4939035
|
[1] |
Cover
|
|
| 6. |
VOE4939034
|
[1] |
Sealing ring
|
|
| 7. |
VOE11018449
|
[6] |
Clamp
|
|
| 8. |
VOE13955894
|
[6] |
Washer
|
|
| 9. |
VOE946036
|
[6] |
Lock nut
|
|
| 1. |
VOE4949647
|
[1] |
Fuel tank
|
|
| 10. |
VOE4786126
|
[1] |
Tank unit
|
|
| 11. |
VOE956094
|
[6] |
Cross recessed screw
|
|
| 12. |
VOE957170
|
[7] |
Gasket
|
|
| 13. |
VOE970945
|
[4] |
Hexagon screw
|
|
| 14. |
VOE13960143
|
[4] |
Washer
|
|
| 15. |
VOE943518
|
[REQ] |
Hose
|
L=1400
|
| 16. |
VOE13949747
|
[1] |
Clamp
|
|
| 17. |
VOE13955295
|
[1] |
Screw
|
|
| 18. |
VOE13955894
|
[1] |
Washer
|
|
| 2. |
VOE4948183
|
[1] |
Plug
|
|
| 3. |
VOE957184
|
[1] |
Gasket
|
|
| 4. |
VOE1189577
|
[1] |
Filler cap
|
LÅSBART / LOCKABLE
|
| 4A. |
VOE1698164
|
[1] |
Gasket
|
|
| 4B. |
VOE11991396
|
[2] |
Key
|
|
