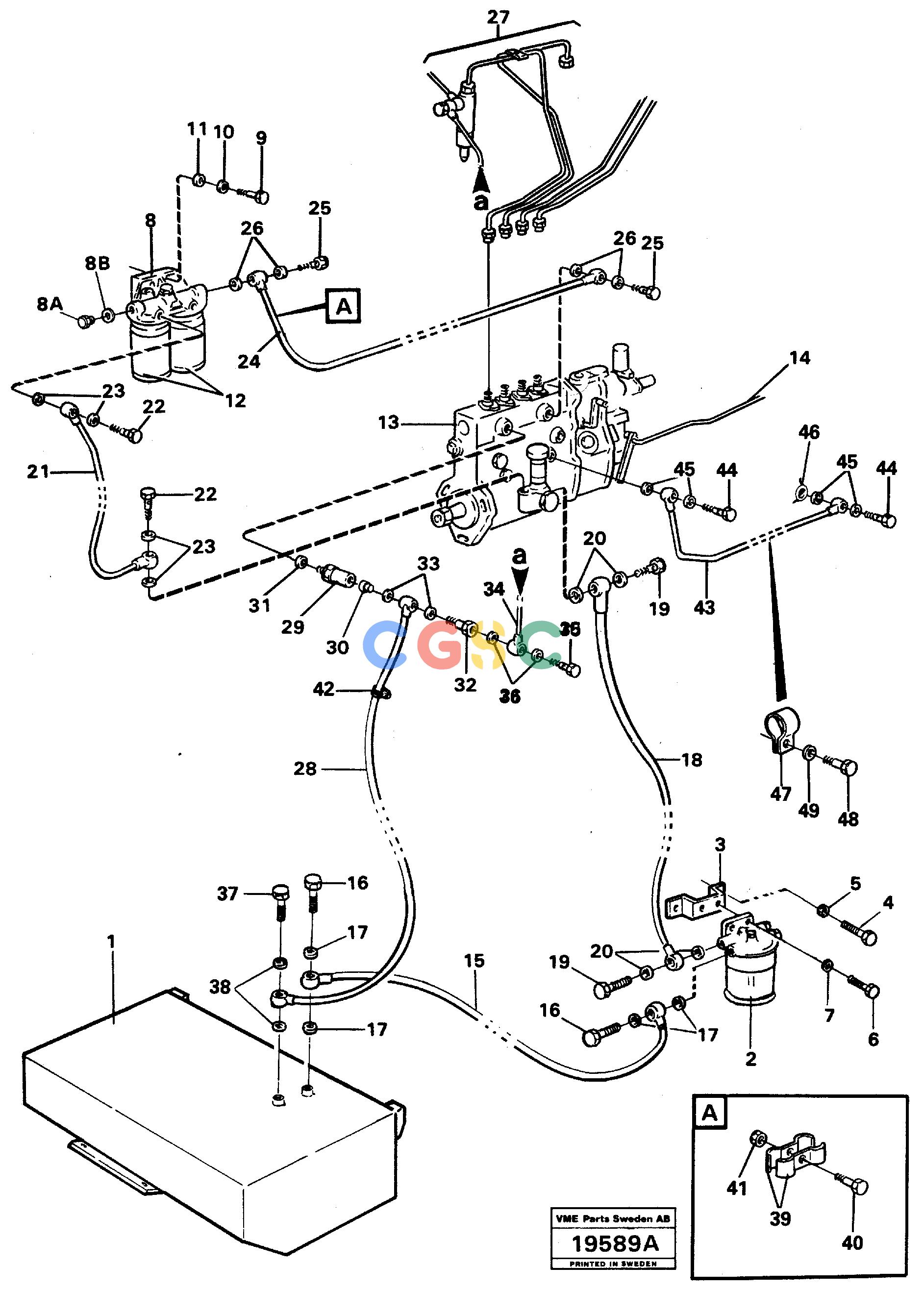

沃尔沃零件查询L50 Fuel systemL50 S/N -6400/-60300 USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
129 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13942336
|
[2] |
Spring washer
|
|
| 49. |
VOE955893
|
[1] |
Plain washer
|
|
| 6. |
VOE13970947
|
[2] |
Hexagon screw
|
|
| 7. |
VOE976945
|
[2] |
Washer
|
|
| 8. |
|
[1] |
Filter Housing
|
|
| 8A. |
VOE960630
|
[3] |
Plug
|
|
| 8B. |
VOE13947621
|
[3] |
Plane gasket
|
|
| 9. |
VOE13940162
|
[2] |
Screw
|
|
| 1. |
|
[1] |
Fuel tank
|
|
| 10. |
VOE13942336
|
[2] |
Spring washer
|
|
| 11. |
VOE13940097
|
[2] |
Washer
|
|
| 12. |
|
[2] |
Fuel filter
|
|
| 13. |
|
[1] |
Injection pump
|
|
| 14. |
|
|
Control
|
|
| 15. |
VOE4804704
|
[1] |
Fuel hose
|
|
| 16. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 17. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 18. |
VOE4804508
|
[1] |
Fuel hose
|
|
| 2. |
VOE4880463
|
[1] |
Water separator
|
|
| 19. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 20. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 21. |
VOE4804599
|
[1] |
Fuel pipe
|
|
| 22. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 23. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 24. |
VOE4804601
|
[1] |
Fuel pipe
|
|
| 25. |
VOE60113509
|
[2] |
Hollow screw
|
|
| 26. |
VOE13947621
|
[4] |
Plane gasket
|
|
| 27. |
|
[1] |
Fuel lines and
|
|
| |
|
|
injectors
|
|
| 3. |
|
[1] |
Bracket
|
|
| 28. |
VOE4774632
|
[1] |
Fuel hose
|
|
| 29. |
VOE7035096
|
[1] |
Overflow valve
|
E PROD
|
| 30. |
VOE238614
|
[1] |
Valve
|
|
| |
VOE479775
|
[1] |
Overflow valve
|
E PROD
|
| 31. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 32. |
VOE7016496
|
[1] |
Hollow screw
|
|
| 33. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 34. |
|
[1] |
Fuel pipe
|
|
| 35. |
VOE7074033
|
[1] |
Hollow screw
|
|
| 36. |
VOE947620
|
[2] |
Gasket
|
|
| 37. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 4. |
VOE955534
|
[2] |
Hexagon screw
|
|
| 38. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 39. |
VOE404279
|
[2] |
Clamp
|
|
| 40. |
VOE956094
|
[1] |
Cross recessed screw
|
|
| 41. |
VOE13955781
|
[1] |
Nut
|
|
| 42. |
VOE13949747
|
[1] |
Clamp
|
|
| 43. |
VOE4804757
|
[1] |
Oil pipe
|
|
| 44. |
VOE7048634
|
[2] |
Hollow screw
|
|
| 45. |
VOE13947281
|
[4] |
Gasket
|
|
| 46. |
|
[1] |
Cylinder block
|
|
| 47. |
VOE940374
|
[1] |
Clamp
|
|
| 48. |
VOE955511
|
[1] |
Hexagon screw
|
|
