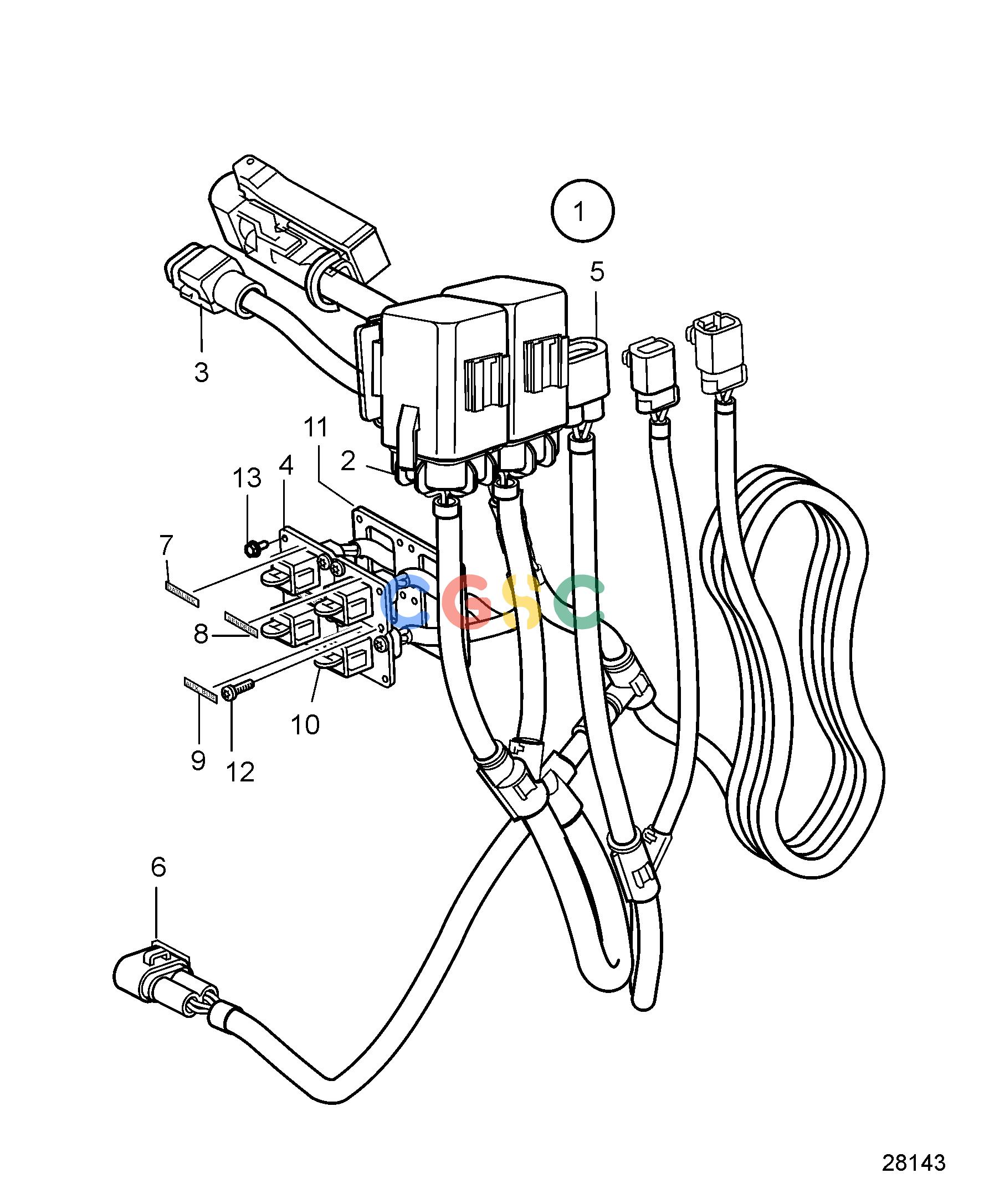

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GElectrical SystemWiring Harness AQ DriveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21731613
|
[1] |
Wiring harness
|
|
| 2. |
3587172
|
[2] |
Relay socket
|
|
| 3. |
874091
|
[1] |
Housing
|
|
| 4. |
992330
|
[4] |
Housing
|
|
| 5. |
3843097
|
[1] |
Connector
|
|
| 6. |
3883773
|
[1] |
Connector
|
|
| 7. |
21227096
|
[1] |
Decal
|
|
| 8. |
21227098
|
[1] |
Decal
|
|
| 9. |
21734847
|
[2] |
Decal
|
|
| 10. |
3840433
|
[4] |
Sealing plug
|
|
| 11. |
21768003
|
[1] |
Bracket
|
|
| 12. |
969278
|
[12] |
Six point socket scr
|
|
| 13. |
968476
|
[4] |
Flange screw
|
|
