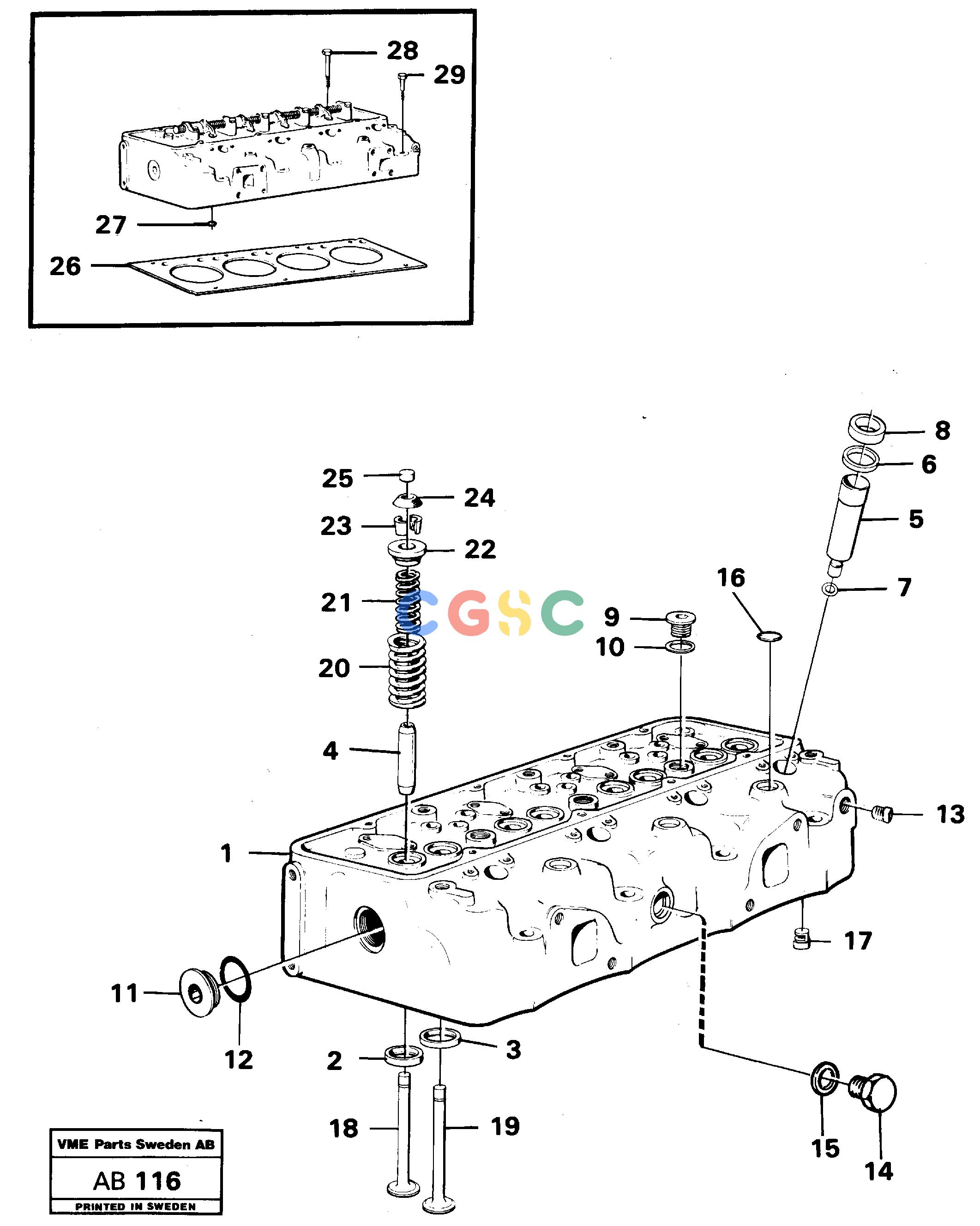

沃尔沃零件查询L50 Cylinder headL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE421316
|
[4] |
Valve seat
|
0,20" O SZ
|
| 3. |
VOE4804548
|
[4] |
Valve seat
|
STD
|
| |
VOE466307
|
[4] |
Valve seat
|
0,20" O SZ
|
| 4. |
VOE466386
|
[8] |
Valve guide
|
|
| 5. |
VOE477928
|
[4] |
Socket
|
|
| |
VOE4804708
|
[1] |
Cylinder head
|
|
| 6. |
VOE466405
|
[4] |
Sealing ring
|
|
| 7. |
VOE466922
|
[4] |
Sealing ring
|
|
| 8. |
VOE466420
|
[4] |
Ring
|
|
| 9. |
VOE466230
|
[3] |
Plug
|
|
| 10. |
VOE420166
|
[3] |
Gasket
|
|
| 11. |
VOE785765
|
[0001] |
Plug
|
|
| 12. |
VOE785766
|
[0001] |
Gasket
|
|
| 13. |
VOE952358
|
[0001] |
Plug
|
|
| 14. |
VOE467365
|
[0001] |
Plug
|
|
| 15. |
VOE469327
|
[0001] |
Gasket
|
|
| |
|
[1] |
Cylinder head
|
|
| 16. |
VOE477026
|
[0003] |
Expansion plug
|
|
| 17. |
VOE465420
|
[0004] |
Nozzle
|
|
| 18. |
VOE466379
|
[0004] |
Valve
|
|
| 19. |
VOE421680
|
[0004] |
Exhaust valve
|
|
| 20. |
VOE466384
|
[0008] |
Valve spring
|
|
| 21. |
VOE466383
|
[0008] |
Valve spring
|
|
| 22. |
VOE466382
|
[0008] |
Washer
|
|
| 23. |
VOE468305
|
[16] |
Valve sleeve
|
|
| 24. |
VOE469456
|
[8] |
Protecting ring
|
|
| 25. |
VOE478074
|
[8] |
Valve cap
|
|
| 1. |
|
[1] |
Cylinder head
|
|
| |
VOE11990104
|
[1] |
Gasket kit
|
|
| 26. |
VOE11030027
|
[1] |
Gasket
|
|
| 27. |
VOE422413
|
[1] |
Sealing ring
|
|
| 28. |
VOE421218
|
[16] |
Screw
|
|
| 29. |
VOE787458
|
[4] |
Screw
|
|
| 2. |
VOE466373
|
[4] |
Valve seat
|
STD
|
