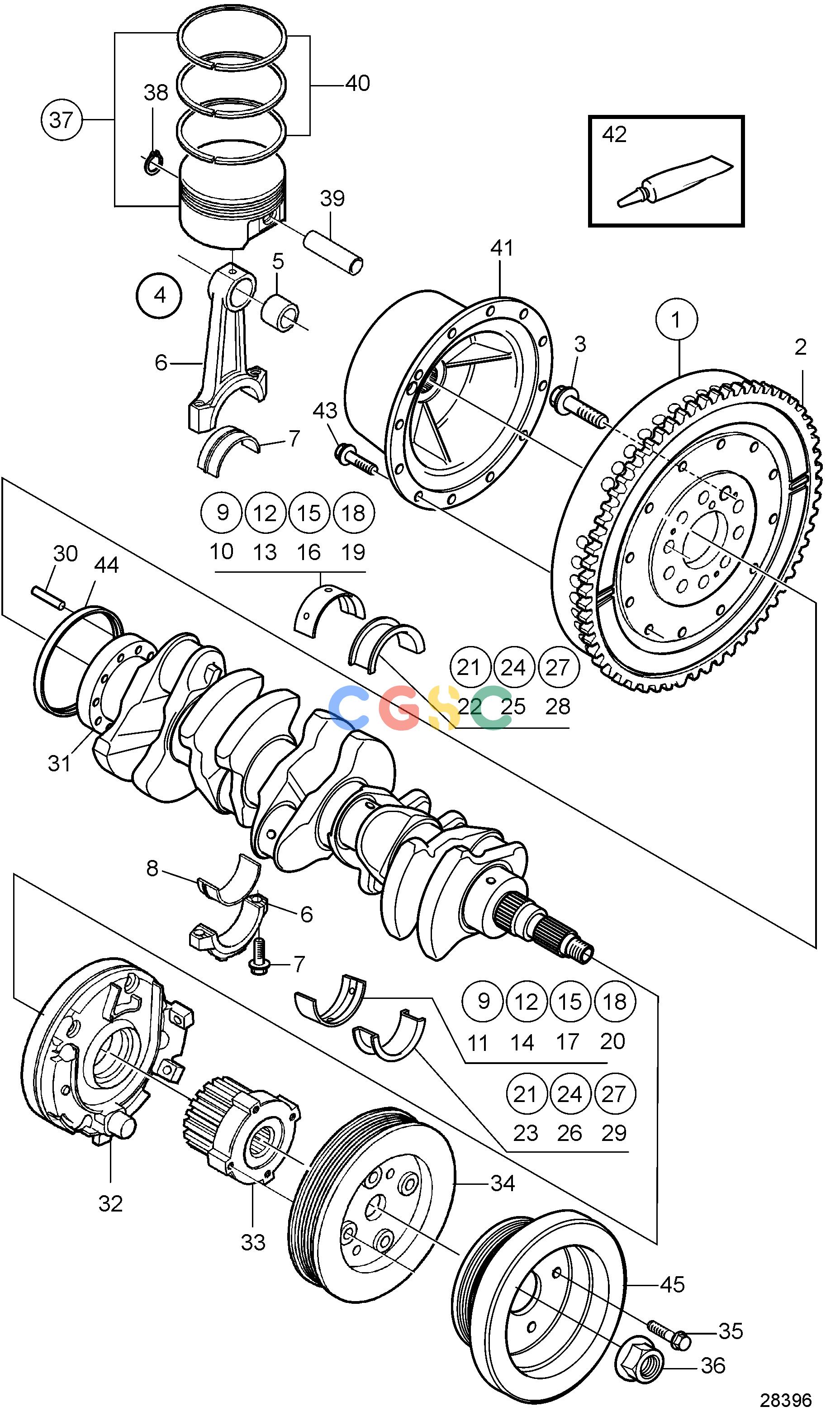

| 1. |
21517500
|
[1] |
Flywheel
|
|
| 2. |
21517489
|
[1] |
Gear ring
|
|
| 3. |
9454743
|
[10] |
Screw
|
|
| 4. |
31258013
|
[5] |
Connecting rod
|
|
| 5. |
|
|
|
|
| 6. |
|
|
|
|
| 7. |
9497858
|
[2] |
Screw
|
|
| 8. |
31251996
|
[1] |
Big-end bearing kit
|
|
| 9. |
31251378
|
[5] |
Main bearing
|
Without flange, red, See Workshop Manual
|
| 10. |
31330321
|
[5] |
Main bearing
|
Red, Without flange, upper, See workshop Manual
|
| 11. |
30777951
|
[5] |
Main bearing
|
Red, Without flange, lower, See workshop Manual
|
| 12. |
31251379
|
[5] |
Main bearing
|
Without flange, yellow, See Workshop Manual
|
| 13. |
31330322
|
[5] |
Main bearing
|
Yellow, Without flange, upper, See workshop Manual
|
| 14. |
30777952
|
[5] |
Main bearing
|
Yellow, Without flange, lower, See workshop Manual
|
| 15. |
31251380
|
[5] |
Main bearing
|
Without flange, blue, See Workshop Manual
|
| 16. |
31330323
|
[5] |
Main bearing
|
Blue, Without flange, upper, See workshop Manual
|
| 17. |
30777953
|
[5] |
Main bearing
|
Blue, Without flange, lower, See workshop Manual
|
| 18. |
31251381
|
[5] |
Main bearing
|
Without flange green, See Workshop Manual
|
| 19. |
31330324
|
[5] |
Main bearing
|
Green, Without flange, upper, See workshop Manual
|
| 20. |
30777954
|
[5] |
Main bearing
|
Green, Without flange, lower, See workshop Manual
|
| 21. |
31339144
|
[1] |
Thrust bearing
|
With flange, red, See Workshop Manual
|
| 22. |
31316541
|
[1] |
Flange bearing
|
Red, With flange, upper, See workshop Manual
|
| 23. |
31316551
|
[1] |
Flange bearing
|
Red, With flange, lower, See workshop Manual
|
| 24. |
31339145
|
[1] |
Thrust bearing
|
With flange, yellow, See Workshop Manual
|
| 25. |
31316542
|
[1] |
Flange bearing
|
Yellow, With flange, upper, See workshop Manual
|
| 26. |
31316552
|
[1] |
Flange bearing
|
Yellow, With flange, lower, See workshop Manual
|
| 27. |
31339146
|
[1] |
Thrust bearing
|
With flange, blue, See Workshop Manual
|
| 28. |
31316543
|
[1] |
Flange bearing
|
Blue, With flange, upper, See workshop Manual
|
| 29. |
31316553
|
[1] |
Flange bearing
|
Blue, With flange, lower, See workshop Manual
|
| 30. |
973660
|
[1] |
Spring pin
|
|
| 31. |
31293424
|
[1] |
Crankshaft
|
|
| 32. |
30777092
|
[1] |
Oil pump
|
|
| 33. |
30777171
|
[1] |
Pulley
|
|
| 34. |
31258122
|
[1] |
Oscillation damper
|
|
| 35. |
984755
|
[4] |
Flange screw
|
|
| 36. |
3531111
|
[1] |
Nut
|
|
| 37. |
21714074
|
[1] |
Piston kit
|
Replaced by 31339781
|
| 37. |
31339781
|
[1] |
Piston kit
|
|
| 38. |
30777225
|
[1] |
Lock ring
|
|
| 39. |
|
|
|
|
| 40. |
30750678
|
[1] |
Piston ring kit
|
|
| 41. |
21373176
|
[1] |
Flexible coupling
|
|
| 42. |
828250
|
[1] |
Lubricating grease
|
|
| 43. |
946671
|
[6] |
Flange screw
|
|
| 44. |
9458178
|
[1] |
Sealing ring
|
|
| 45. |
21255747
|
[1] |
Vibration damper
|
|
