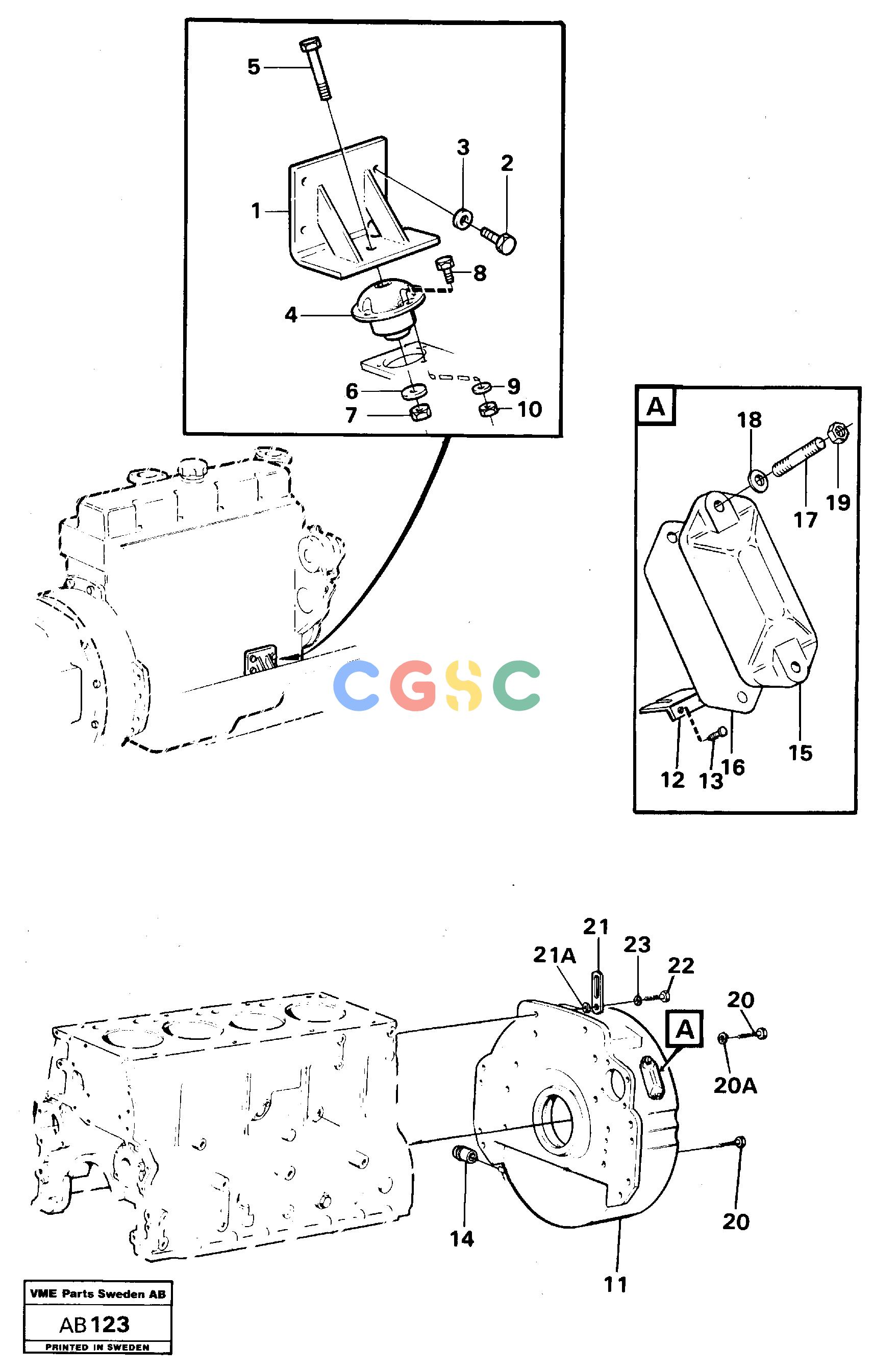

沃尔沃零件查询L50 Engine support and flywheel housingL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
201 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4939323
|
[1] |
Bracket
|
RH
|
| |
VOE4939324
|
[1] |
Bracket
|
LH
|
| 2. |
VOE955563
|
[8] |
Hexagon screw
|
|
| 3. |
VOE4850822
|
[8] |
Spacer
|
|
| 4. |
VOE11101991
|
[2] |
Rubber damper
|
|
| 5. |
VOE955398
|
[2] |
Hexagon screw
|
|
| 6. |
VOE13949394
|
[4] |
Washer
|
|
| 7. |
VOE955786
|
[2] |
Hexagon nut
|
|
| 8. |
VOE13970972
|
[6] |
Hexagon screw
|
|
| 9. |
VOE940280
|
[6] |
Spring washer
|
|
| 10. |
VOE13971072
|
[6] |
Hexagon nut
|
STD
|
| |
VOE13971069
|
[6] |
Hexagon nut
|
USA
|
| 11. |
VOE4804802
|
[1] |
Flywheel housing
|
|
| 12. |
VOE4804159
|
[1] |
Setting indicator
|
|
| 13. |
VOE905654
|
[2] |
Drive screw
|
|
| 14. |
VOE17229696
|
[1] |
Pipe
|
|
| 15. |
VOE4772168
|
[1] |
Cover
|
|
| 16. |
VOE4804167
|
[1] |
Gasket
|
|
| 17. |
VOE924054
|
[2] |
Stud
|
|
| 18. |
VOE955892
|
[2] |
Plain washer
|
|
| 19. |
VOE946035
|
[2] |
Lock nut
|
|
| 20. |
VOE955578
|
[2] |
Hexagon screw
|
L=45
|
| |
VOE955580
|
[6] |
Hexagon screw
|
L=57
|
| |
VOE955583
|
[2] |
Hexagon screw
|
L=76
|
| 20A. |
VOE941911
|
[10] |
Spring washer
|
|
| 21. |
VOE843711
|
[2] |
Bracket
|
|
| 21A. |
VOE955899
|
[4] |
Plain washer
|
ID=15
|
| 22. |
VOE955560
|
[2] |
Hexagon screw
|
|
| 23. |
VOE60110353
|
[2] |
Washer
|
ID=13
|
