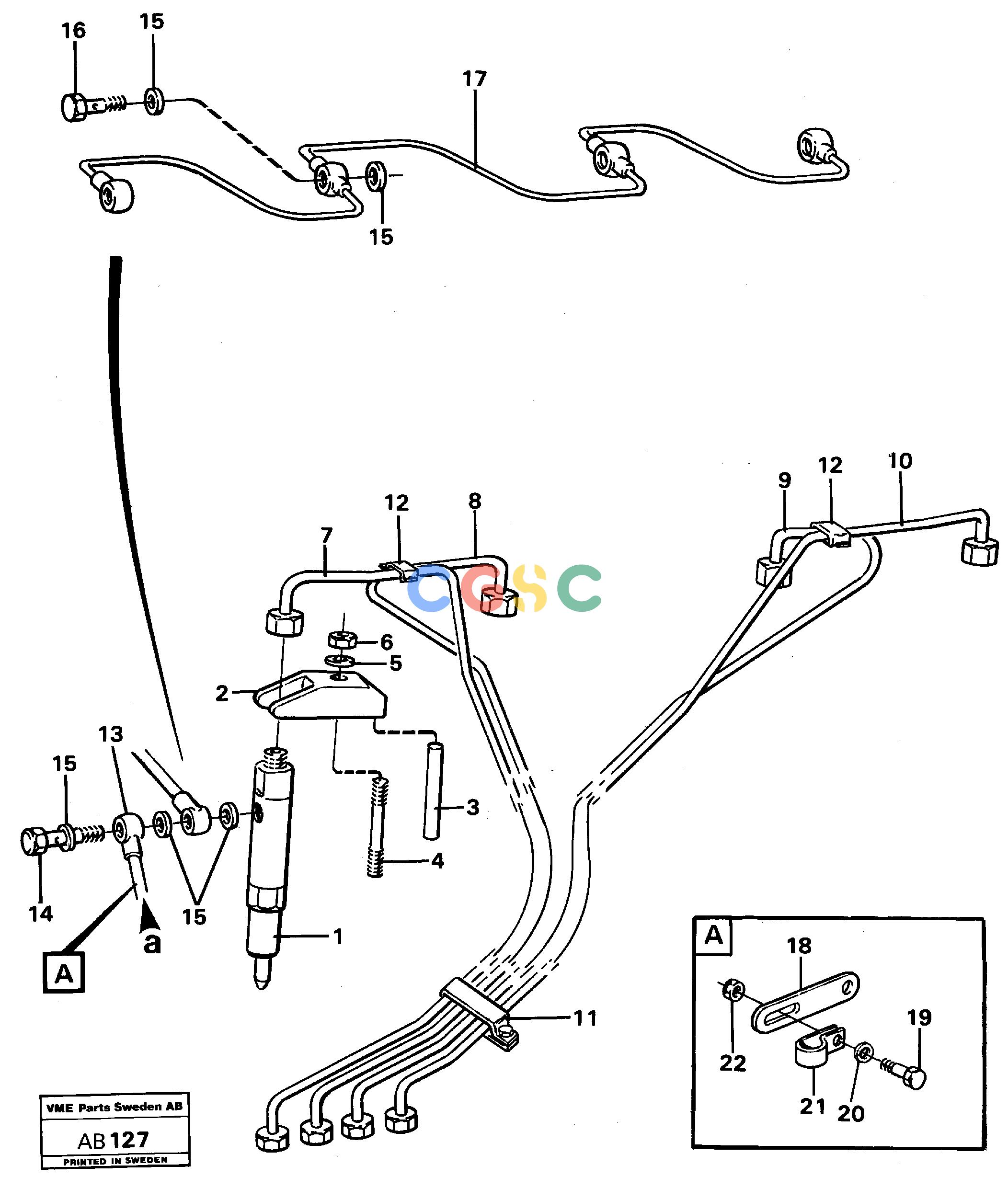

沃尔沃零件查询L50 Fuel lines and injectorsL50 S/N 6401- / 60301- USA NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
355 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[4] |
Injector
|
|
| 2. |
VOE469797
|
[4] |
Nozzle retainer
|
|
| 3. |
VOE4804589
|
[4] |
Pin
|
STD
|
| |
VOE4804929
|
[4] |
Pin
|
|
| 4. |
VOE4804590
|
[4] |
Stud
|
|
| 5. |
VOE13942336
|
[4] |
Spring washer
|
|
| 6. |
VOE13971068
|
[4] |
Hexagon nut
|
|
| 7. |
VOE4804748
|
[1] |
Delivery pipe
|
|
| 8. |
VOE4804749
|
[1] |
Delivery pipe
|
|
| 9. |
VOE4804750
|
[1] |
Delivery pipe
|
|
| 10. |
VOE4804751
|
[1] |
Delivery pipe
|
|
| 11. |
VOE8194353
|
[1] |
Clamp
|
|
| 12. |
VOE8194351
|
[2] |
Clamp
|
|
| 13. |
VOE4804603
|
[1] |
Fuel pipe
|
|
| 14. |
VOE7074034
|
[1] |
Hollow screw
|
|
| 15. |
VOE947620
|
[9] |
Gasket
|
|
| 16. |
VOE7074033
|
[3] |
Hollow screw
|
|
| 17. |
VOE4804582
|
[1] |
Leak-off line
|
|
| 18. |
|
[1] |
Bracket
|
|
| 19. |
VOE956094
|
[1] |
Cross recessed screw
|
|
| 20. |
VOE955893
|
[1] |
Plain washer
|
|
| 21. |
VOE7121563
|
[1] |
Clamp
|
|
| 22. |
VOE13955781
|
[1] |
Nut
|
|
