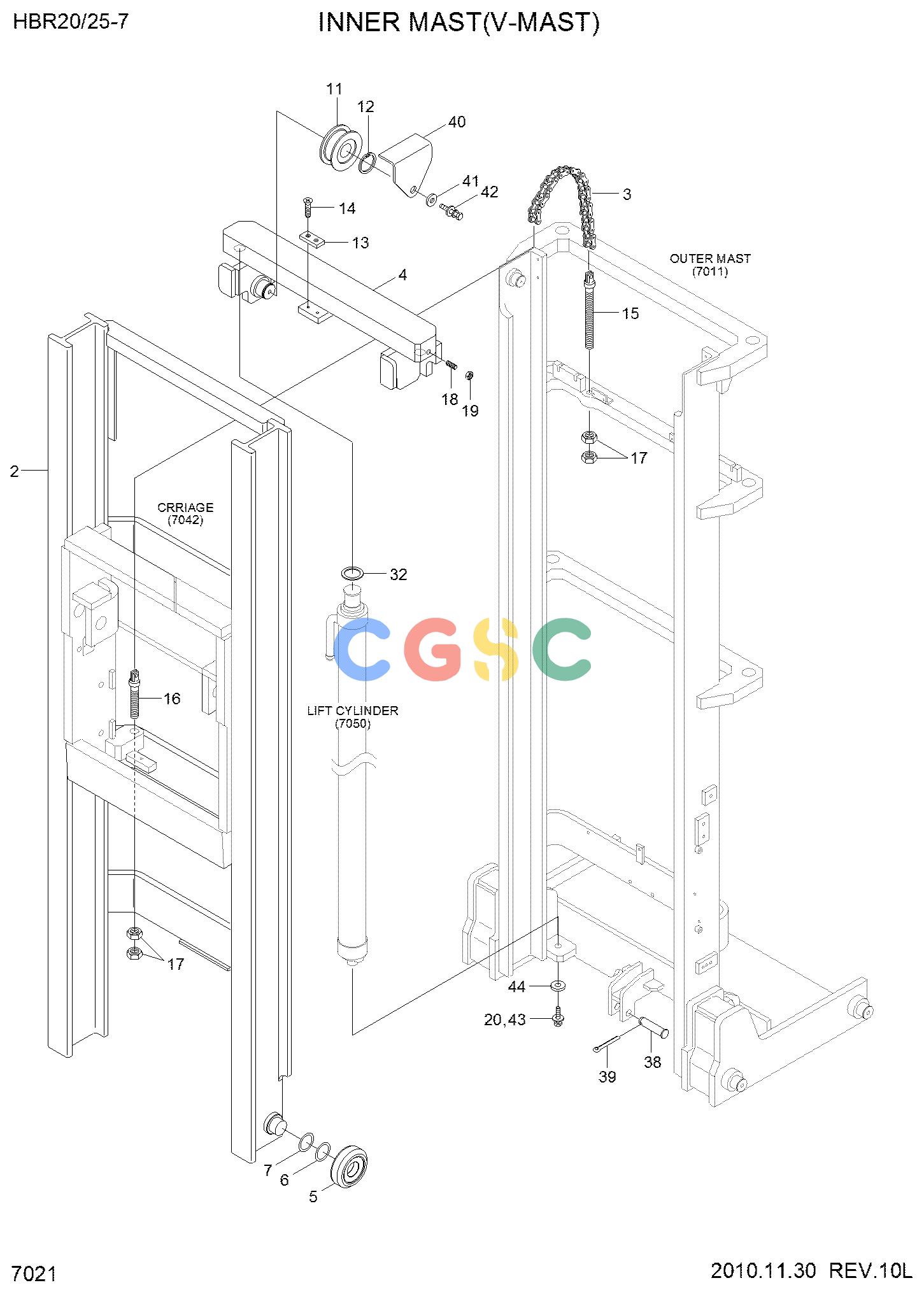

现代零件查询HBR20/25-7 INNER MAST(V-MAST, KIA)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
387 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
61FS-14090
|
[1] |
INNER MAST WA
|
|
| 3. |
8451814300
|
[2] |
CHAIN-LIFT
|
|
| 3-1. |
62FG-18900
|
[2] |
JOINT LINK KIT-CHAIN
|
|
| 4. |
61FS-13300
|
[1] |
SUPPORT WA
|
|
| 5. |
6600181100-01
|
[2] |
BEARING-ROLLER
|
|
| 6. |
6600187900
|
[2] |
SHIM(0.5T)
|
|
| 7. |
6600188000
|
[2] |
SHIM(1.0T)
|
|
| 11. |
F12500390
|
[2] |
CHAIN SHEAVE BEARING
|
|
| 12. |
S601-040004
|
[6] |
RING-SNAP
|
|
| 13. |
5223026500
|
[1] |
STOPPER
|
|
| 14. |
S141-060162
|
[2] |
SCREW-FLAT HD
|
|
| 15. |
5243041800-01
|
[2] |
BOLT-ANCHOR
|
|
| 16. |
5243044900-01
|
[2] |
BOLT-ANCHOR
|
|
| 17. |
S206-181002
|
[8] |
NUT-HEX
|
|
| 18. |
S111-120304
|
[2] |
SCREW-SET HEX SOCKET
|
|
| 19. |
62FD-18900
|
[2] |
JOINT LINK KIT-CHAIN
|
|
| 20. |
S037-123026
|
[2] |
BOLT-W/WASHER
|
|
| 32. |
37B9AE2030
|
[2] |
SHIM(1.0T)
|
|
| 38. |
1222011200-02
|
[1] |
PIN
|
|
| 39. |
S461-500402
|
[1] |
PIN-SPLIT
|
|
| 40. |
FMC0200452
|
[2] |
GUARD-CHAIN
|
|
| 41. |
S403-101002
|
[2] |
WASHER-PLAIN
|
|
| 42. |
S037-103022
|
[2] |
BOLT-W/WASHER
|
|
| 43. |
S037-122052
|
[2] |
BOLT-W/WASHER
|
|
| 44. |
61FG-18400
|
[2] |
SPACER
|
|
