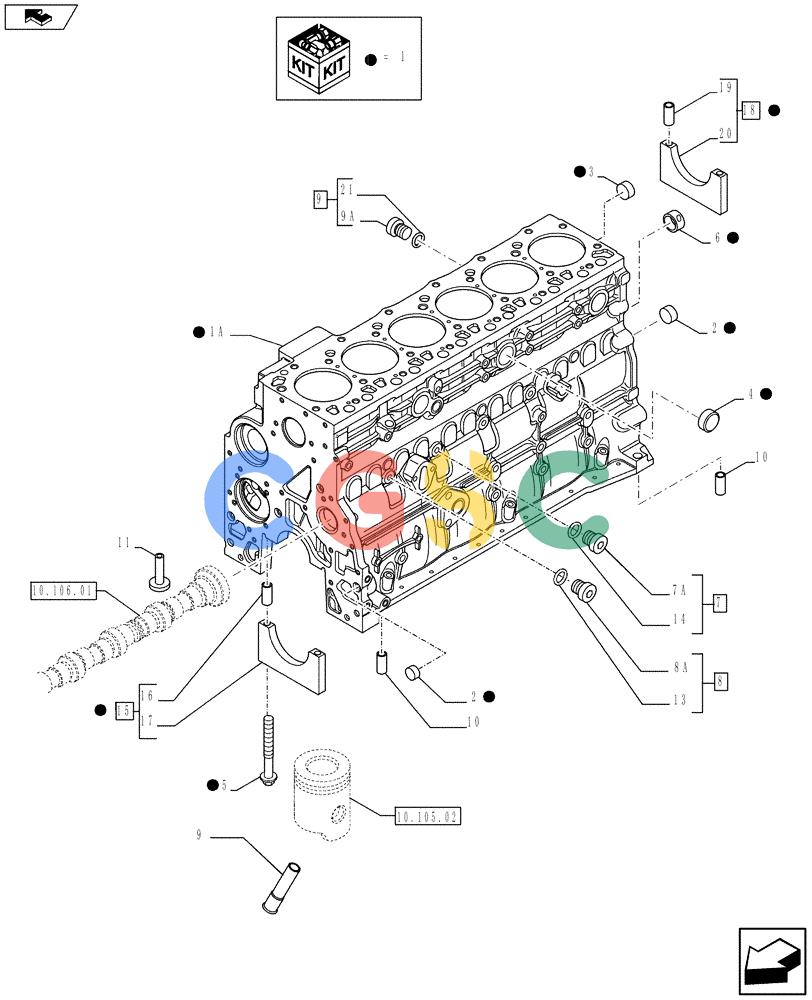

神钢零件查询(F4GE9684D J604) - ENGINE 5801385853 - 84369830 (1/07-12/11) (10.001.02) - CRANKCASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
528 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | 4895039 | [2] | EXPANSION PLUG,M17.73 | TOR |
| 3. | 4895038 | [6] | EXPANSION PLUG,M58.06 | TOR |
| 4. | 4895228 | [3] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 5. | 4891353 | [14] | SCREW,Flg Hd, M12 x 1.5 x 120 | TOR |
| 6. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 7. | 4895605 | [1] | HEX SOCKET PLUG,M14 x 1.5 | TORASSY Contains Ref.7A, 14 |
| 7A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 8. | 4899009 | [2] | PLUG,M10 x1 | TORASSY Contains Ref.8A, 13 |
| 8A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 9. | 4895392 | [3] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY Contains Ref.9A, 21 |
| 10. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 11. | J931623 | [12] | TAPPET | CAS Superseded by part number: 4895180 |
| 13. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TOR |
| 14. | 4899115 | [1] | O-RING,2.2mm Thk x 11.3mm ID | TOR |
| 15. | 4895919 | [6] | BEARING ASSY,86.1mm D | TORASSY Contains Ref.16,17 |
| 16. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 17. | 4892951 | [1] | BEARING CAP,24.5 mm | TOR |
| 18. | 4895921 | [1] | BEARING ASSY,86.1mm D | TORASSY Contains Ref.19, 20 |
| 19. | 4899026 | [2] | DOWEL,M18 x 10 | TOR |
| 21. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TOR |
