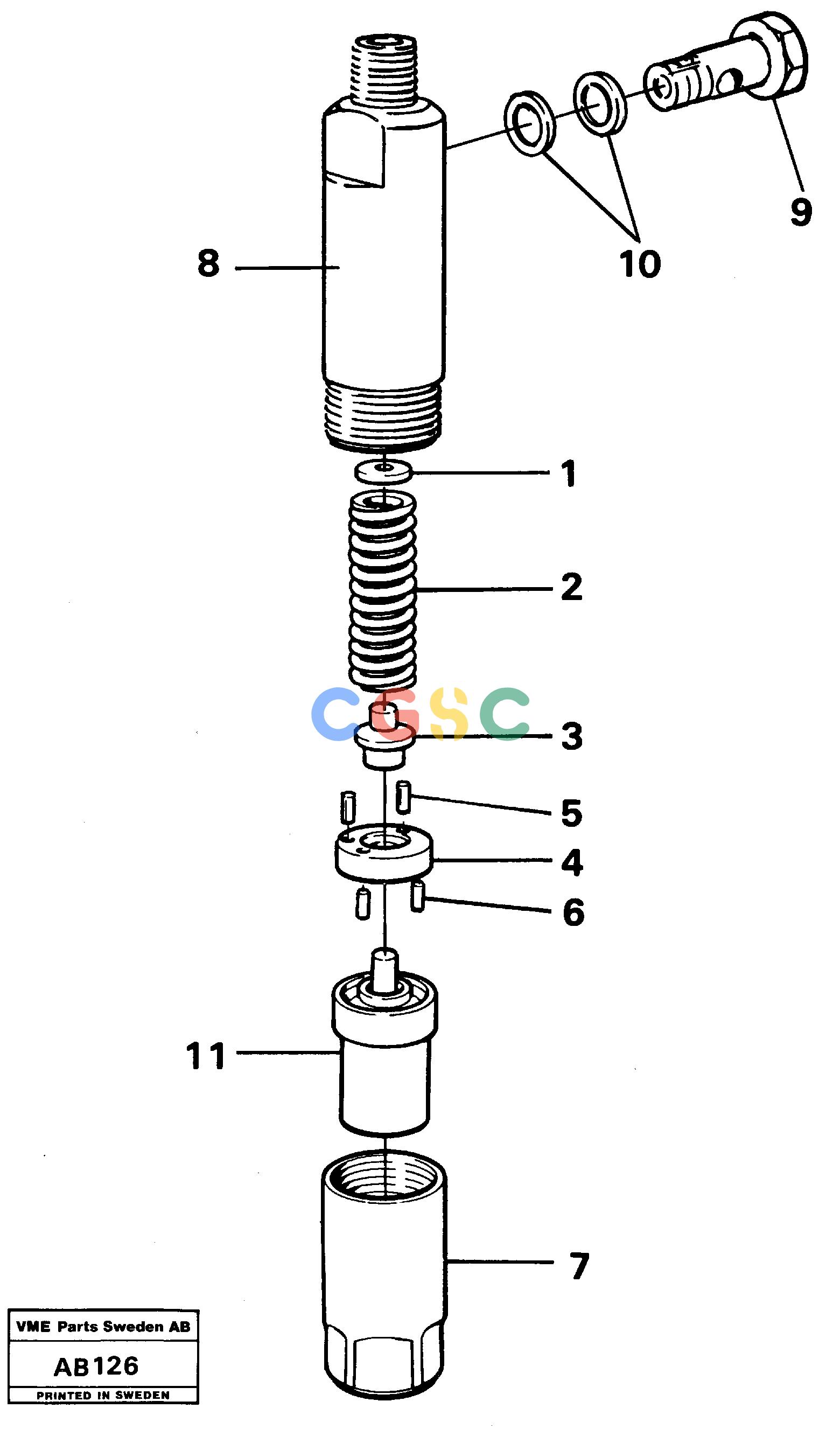

沃尔沃零件查询L50 InjectorL50 S/N 6401- / 60301- USA4880892-4881573NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
700 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE3094407
|
[REQ] |
Shim
|
THICK=1,08
|
| |
VOE11701085
|
[REQ] |
Shim
|
THICK=1,12
|
| |
VOE3094408
|
[REQ] |
Shim
|
THICK=1,16
|
| |
VOE846963
|
|
Adjusting washer
|
THICK=1,18
|
| |
VOE11701282
|
[REQ] |
Shim
|
THICK=1,20
|
| |
VOE11700776
|
[REQ] |
Shim
|
THICK=1,24
|
| |
VOE4880892
|
[1] |
Injector
|
STD
|
| |
VOE11701049
|
[REQ] |
Shim
|
THICK=1,28
|
| |
VOE4881573
|
|
Injector
|
90417
|
| |
VOE859356
|
[REQ] |
Shim
|
THICK=1,30
|
| |
VOE11701106
|
[REQ] |
Shim
|
THICK=1,32
|
| |
VOE11700831
|
[REQ] |
Shim
|
THICK=1,36
|
| |
VOE846966
|
[REQ] |
Adjusting washer
|
THICK=1,38
|
| |
VOE244800
|
[REQ] |
Shim
|
THICK=1,40
|
| |
VOE11702405
|
[REQ] |
Shim
|
THICK=1,42
|
| |
VOE11700690
|
[REQ] |
Shim
|
THICK=1,44
|
| |
VOE11701281
|
[REQ] |
Shim
|
THICK=1,48
|
| |
VOE11701783
|
[REQ] |
Shim
|
THICK=1,52
|
| |
VOE11700728
|
[REQ] |
Shim
|
THICK=1,54
|
| |
VOE11700653
|
[REQ] |
Shim
|
THICK=1,56
|
| |
VOE468827
|
[1] |
Nozzle retainer
|
|
| |
VOE11700835
|
[REQ] |
Shim
|
THICK=1,60
|
| |
VOE4881467
|
|
Nozzle retainer
|
|
| |
VOE11701162
|
[REQ] |
Shim
|
THICK=1,64
|
| |
VOE11700126
|
[REQ] |
Shim
|
THICK=1,68
|
| |
VOE3094477
|
[REQ] |
Shim
|
THICK=1,72
|
| |
VOE6213408
|
[REQ] |
Shim
|
THICK=1,76
|
| |
VOE11701050
|
[REQ] |
Shim
|
THICK=1,80
|
| |
VOE6212420
|
[REQ] |
Shim
|
THICK=1,82
|
| |
VOE244808
|
[REQ] |
Shim
|
THICK=1,84
|
| |
VOE6213409
|
[REQ] |
Shim
|
THICK=1,88
|
| |
VOE244795
|
[REQ] |
Shim
|
THICK=1,92
|
| |
VOE3094467
|
[REQ] |
Shim
|
THICK=1,96
|
| 2. |
VOE244820
|
[1] |
Compression spring
|
|
| 1. |
VOE11700654
|
[REQ] |
Shim
|
THICK=1,00
|
| |
VOE11701280
|
[REQ] |
Shim
|
THICK=1,04
|
| 3. |
VOE849010
|
[1] |
Screw
|
|
| |
VOE3094859
|
[1] |
Retainer
|
|
| 4. |
VOE1698513
|
[1] |
Washer
|
|
| 5. |
VOE844339
|
[2] |
Pin
|
|
| 6. |
VOE244447
|
[2] |
Pin
|
|
| 7. |
VOE3092030
|
[1] |
Nut
|
|
| |
|
|
Cap nut
|
|
| 8. |
|
[1] |
Housing
|
|
| 9. |
VOE7074033
|
[1] |
Hollow screw
|
|
| |
VOE11703339
|
|
Hollow screw
|
|
| 10. |
VOE947620
|
[2] |
Gasket
|
|
| 11. |
VOE4880895
|
[1] |
Nozzle
|
|
| |
VOE4881572
|
|
Nozzle
|
|
