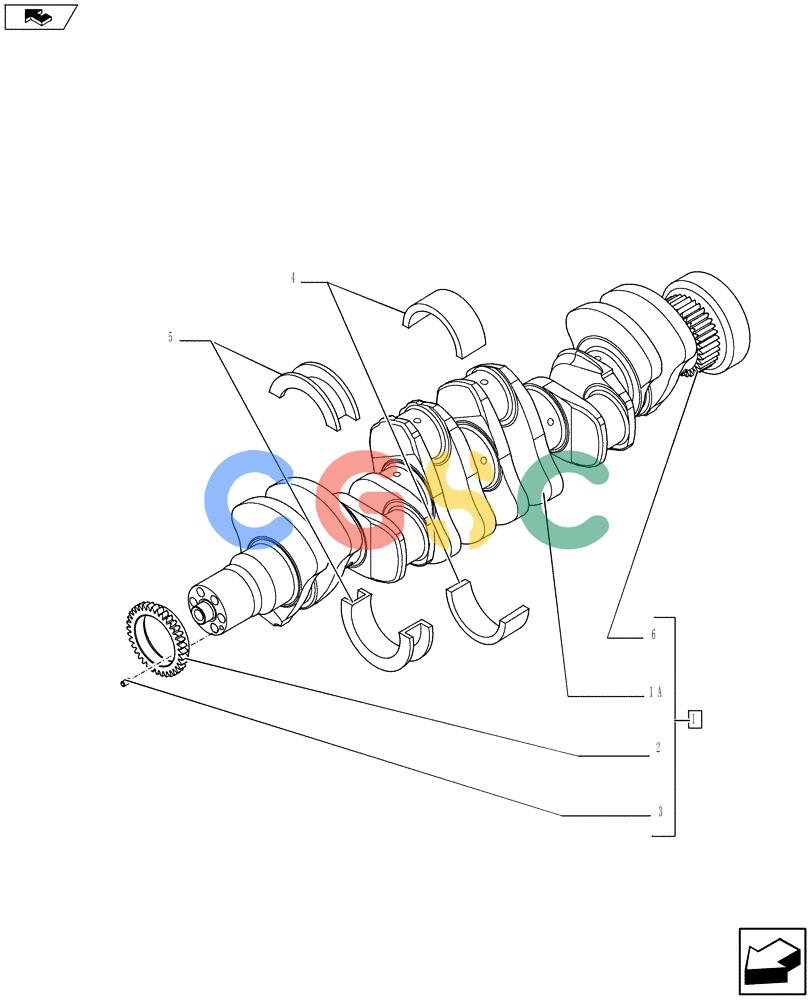

神钢零件查询(F4GE9684D J604) - ENGINE 5801385853 - 84369830 (1/07-12/11) (10.103.01) - CRANKSHAFT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
120 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2852305 | [1] | CRANKSHAFT | TOR- ASSY Contains Ref.1A, 2, 3 Superseded by part number: 4899046, 504203872 |
| 1A. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2. | 4893386 | [1] | GEAR,36 T | TOR |
| 3. | 4899046 | [1] | DOWEL,M6 x 9 L | TOR |
| 4. | 2853815 | [6] | BEARING HALF | BHBSTD Superseded by part number: 2995787 |
| 4. | 4895017 | [6] | BEARING HALF | TOR Superseded by part number: 2995787 |
| 5. | 2853816 | [1] | BEARING HALF | BHBSTD Superseded by part number: 2995784 |
| 5. | 4895414 | [1] | BEARING HALF | TOR Superseded by part number: 2995784 |
| 6. | 4892438 | [1] | GEAR,36T | TOR |
