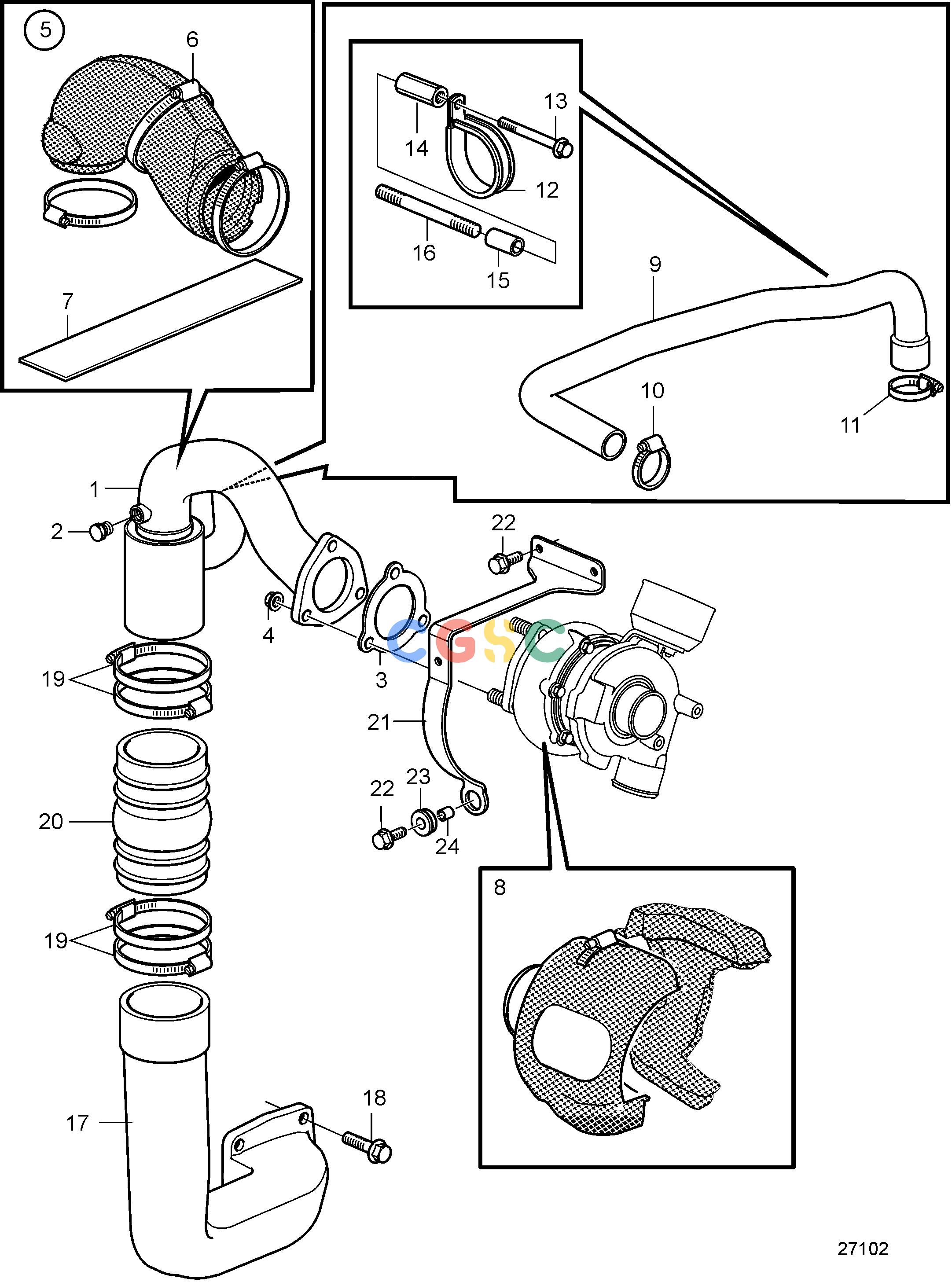

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GIntake and Exhaust SystemExhaust Manifold and Heat ProtectionEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21192127
|
[1] |
Exhaust pipe
|
|
| 2. |
981749
|
[1] |
Plug
|
|
| 3. |
1275549
|
[1] |
Gasket
|
|
| 4. |
981152
|
[3] |
Flange nut
|
|
| 5. |
21985884
|
[1] |
Heat shield
|
|
| 6. |
982694
|
[1] |
Hose clamp
|
|
| 7. |
22030177
|
[1] |
Heat shield
|
|
| 8. |
21985886
|
[1] |
Heat shield
|
|
| 9. |
21104921
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow.
|
| 10. |
961669
|
[1] |
Hose clamp
|
|
| 11. |
961670
|
[1] |
Hose clamp
|
|
| 12. |
969194
|
[1] |
Clamp
|
|
| 13. |
946440
|
[1] |
Flange screw
|
|
| 14. |
21264221
|
[1] |
Spacer nut
|
|
| 15. |
977801
|
[1] |
Spacer sleeve
|
|
| 16. |
953060
|
[1] |
Stud
|
|
| 17. |
21190796
|
[1] |
Exhaust pipe
|
|
| 18. |
3841928
|
[4] |
Flange screw
|
|
| 19. |
853012
|
[4] |
Hose clamp
|
|
| 20. |
3863450
|
[1] |
Bellows
|
|
| 21. |
21441559
|
[1] |
Bracket
|
|
| 22. |
946440
|
[3] |
Flange screw
|
|
| 23. |
992404
|
[1] |
Grommet
|
|
| 24. |
40005089
|
[1] |
Spacer
|
|
