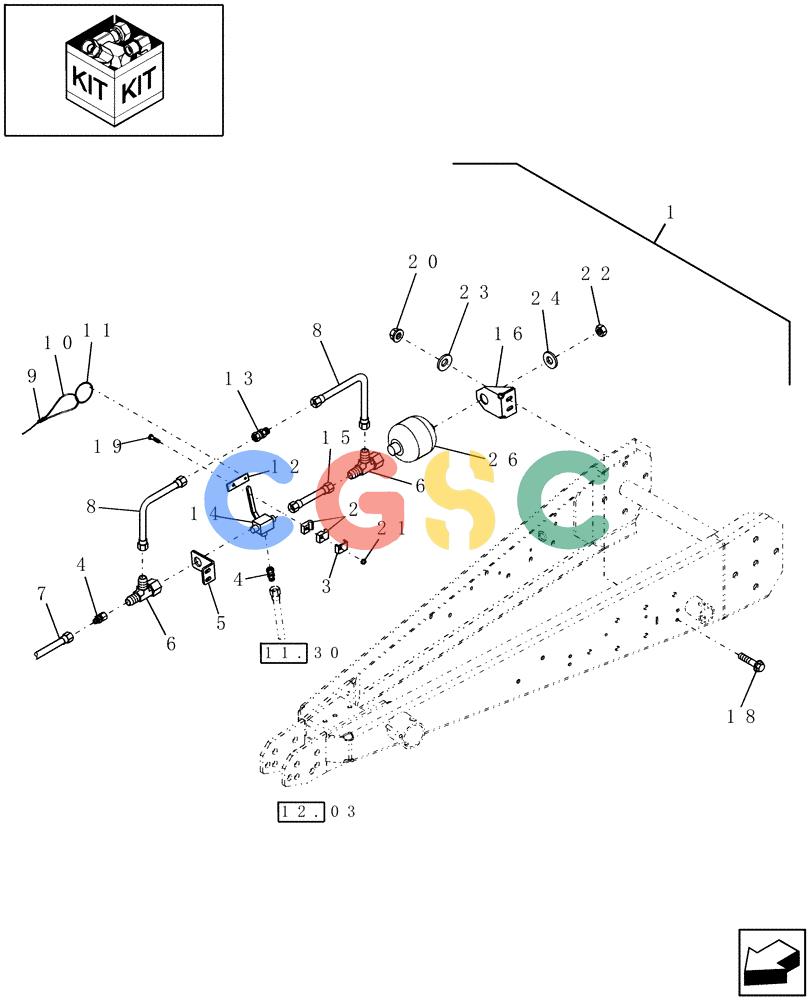

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.63) - EMERGENCY BRAKE KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
613 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87013240
|
[1] |
DIA KIT, HARVESTER
|
PA
Emergency Brake, Includes: Installation Instructions Superseded by part number: 87347917
|
| 2. |
433008
|
[2] |
CLAMP
|
NH
|
| 3. |
433101
|
[1] |
SUPPORT
|
NH
|
| 4. |
84078124
|
[3] |
HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5
|
ZED
|
| 5. |
87018976
|
[1] |
ANGLE
|
PA
|
| 6. |
734031
|
[2] |
HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female
|
ZED
Swivel Tee
|
| 7. |
87019858
|
[1] |
HOSE,0.38" ID x 67.00", SAE 100R1, SAE 100R17
|
PA
|
| 8. |
87026853
|
[2] |
HYD TUBE,9.52 mm DIA x 69, 69 mm L
|
PA
|
| 9. |
84607248
|
[2] |
WIRE CLAMP
|
ZED
|
| 10. |
9839198
|
[1] |
CABLE
|
ZED
|
| 11. |
84078105
|
[1] |
RING
|
ZED
|
| 12. |
921153
|
[1] |
PLATE
|
ZED
|
| 13. |
84078038
|
[1] |
VALVE,M16 x 1.5 x M16 x 1.5
|
ZED
Non Return
|
| 14. |
84320121
|
[1] |
DRAINCOCK/TAP SUPPLY,M16 x 1.5 x M16 x 1.5
|
ZED
|
| 15. |
PL
|
[1] |
PROCURE LOCALLY
|
BAS
Tube, Hydraulic
|
| 16. |
87020352
|
[1] |
SUPPORT
|
PA
Superseded by part number: 84078103
|
| 18. |
844-8030
|
[4] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87779272, 9804260
|
| 19. |
814-6040
|
[1] |
BOLT,Hex, M6 x 1 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120102
|
| 20. |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 21. |
832-46406
|
[1] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 22. |
308823
|
[1] |
NUT,M28 x 1.5, Cl 8
|
ZED
|
| 23. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 24. |
140110
|
[1] |
WASHER,31mm ID x 40mm OD x 3mm Thk
|
ZED
|
