沃尔沃零件查询L50E EngineBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
492 次

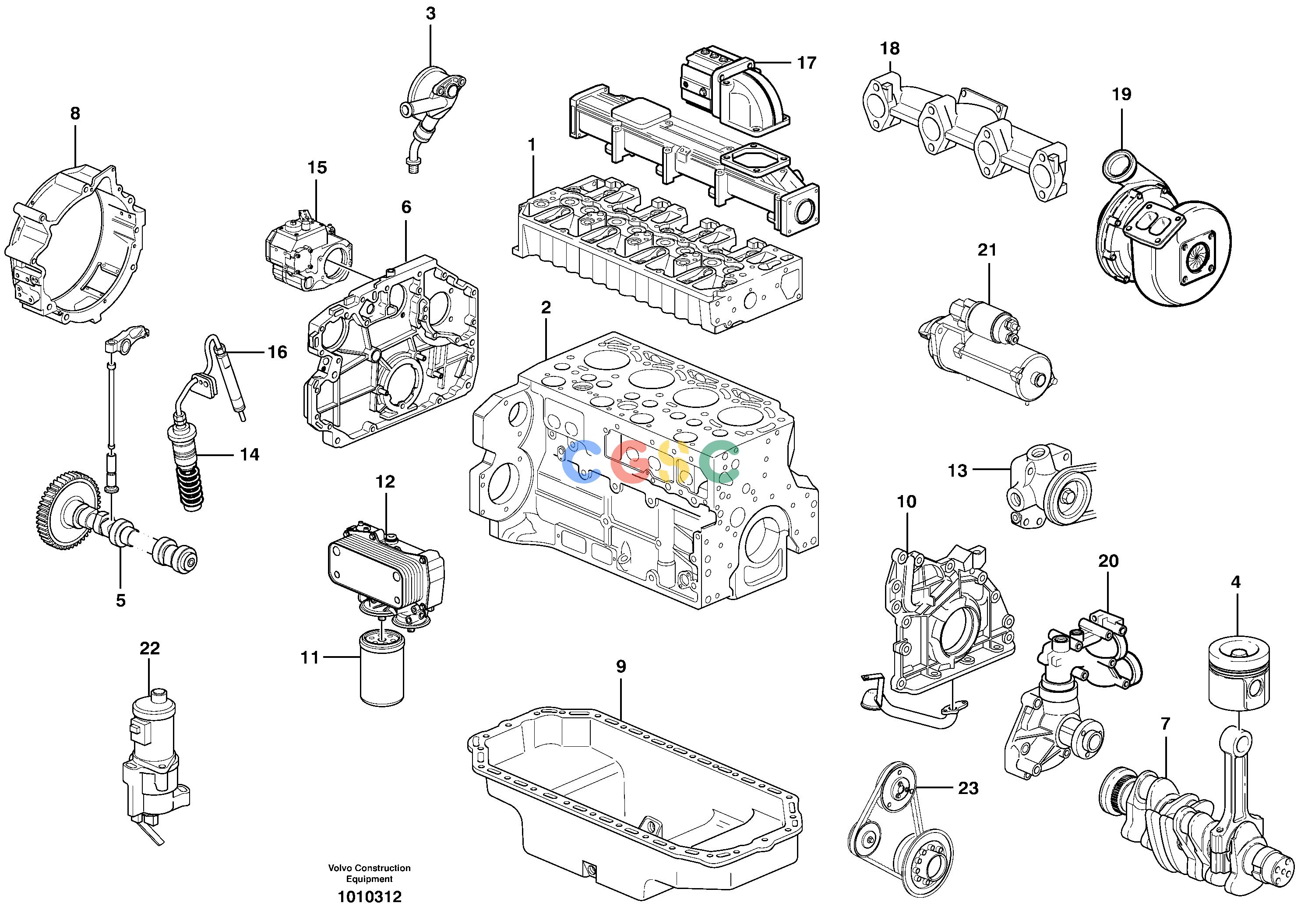

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE11410478
|
|
Engine
|
D4DLAE2
|
| 1. |
|
[1] |
Cylinder head
|
|
| 2. |
|
[1] |
Cylinder block
|
|
| 3. |
|
[1] |
Crankcase ventilation
|
|
| 4. |
|
[4] |
Piston
|
|
| 5. |
|
[1] |
Valve mechanism
|
|
| 6. |
|
[1] |
Timing gear casing
|
|
| 7. |
|
[1] |
Crankshaft
|
|
| 8. |
|
[1] |
Flywheel Hsg
|
|
| 9. |
|
[1] |
Oil sump
|
|
| 10. |
|
[1] |
Lubricating system
|
|
| 11. |
|
[1] |
Oil filter
|
|
| 12. |
|
[1] |
Oil cooler
|
|
| 13. |
|
[1] |
Fuel pump
|
|
| 14. |
|
[4] |
Injcection pump
|
|
| 15. |
|
[1] |
Regulator
|
|
| 16. |
|
[4] |
Fuel lines, injectors
|
|
| 17. |
|
[1] |
Inlet pipe
|
|
| 18. |
|
[1] |
Exhaust pipe
|
|
| 19. |
|
[1] |
Turbocharger
|
|
| 20. |
|
[1] |
Water pump and thermo
|
|
| 21. |
|
[1] |
Starter motor
|
|
| 22. |
|
[1] |
Stop solenoid
|
|
| 23. |
|
[1] |
Belt Xmsn
|
|
