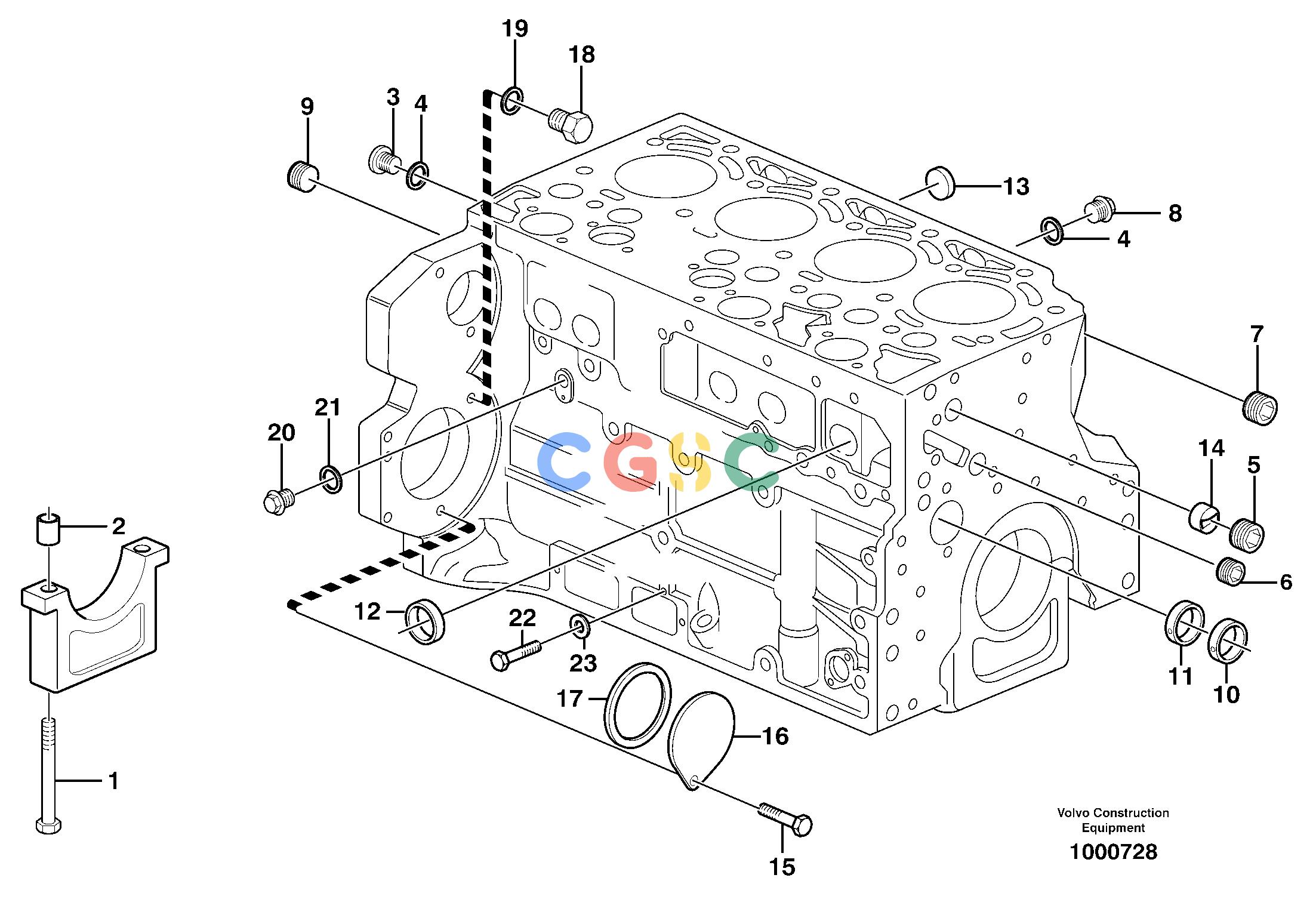

沃尔沃零件查询L50E Cylinder blockBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
784 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE24425842
|
[1] |
Crankcase
|
ENG - 1064049
|
| |
VOE20791246
|
[1] |
Crankcase
|
ENG 1064050 - 01099408
|
| |
VOE22425892
|
[1] |
Crankcase
|
ENG 01099409 -
|
| 1. |
VOE20460006
|
[10] |
Screw
|
|
| 2. |
VOE20460001
|
[10] |
Bushing
|
|
| 3. |
VOE945065
|
[1] |
Plug
|
|
| 4. |
VOE13969011
|
[3] |
Gasket
|
|
| 5. |
VOE20405717
|
[1] |
Plug
|
|
| 6. |
VOE20405719
|
[1] |
Plug
|
|
| 7. |
VOE20508600
|
[2] |
Plug
|
|
| 8. |
VOE20405716
|
[2] |
Plug
|
|
| 9. |
VOE20785813
|
[1] |
Plug
|
ENG - 1070375
|
| |
VOE20785813
|
[1] |
Plug
|
ENG 1070376 -
|
| 10. |
VOE20459999
|
[4] |
Camshaft bushing
|
|
| 11. |
VOE20459998
|
[1] |
Camshaft bushing
|
|
| 12. |
VOE20405721
|
[6] |
Core plug
|
|
| 13. |
VOE20412745
|
[2] |
Core plug
|
|
| 14. |
VOE20405584
|
[1] |
Guide sleeve
|
|
| 15. |
VOE975108
|
[2] |
Flange screw
|
|
| 16. |
VOE24426064
|
[1] |
Cover
|
|
| 17. |
VOE20412359
|
[1] |
Sealing ring
|
|
| 18. |
VOE20441859
|
[1] |
Plug
|
|
| 19. |
VOE13947281
|
[1] |
Gasket
|
|
| 20. |
VOE20405716
|
[1] |
Plug
|
|
| 21. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 22. |
VOE20459899
|
[2] |
Screw
|
|
| 23. |
VOE20459900
|
[2] |
Sealing ring
|
|
