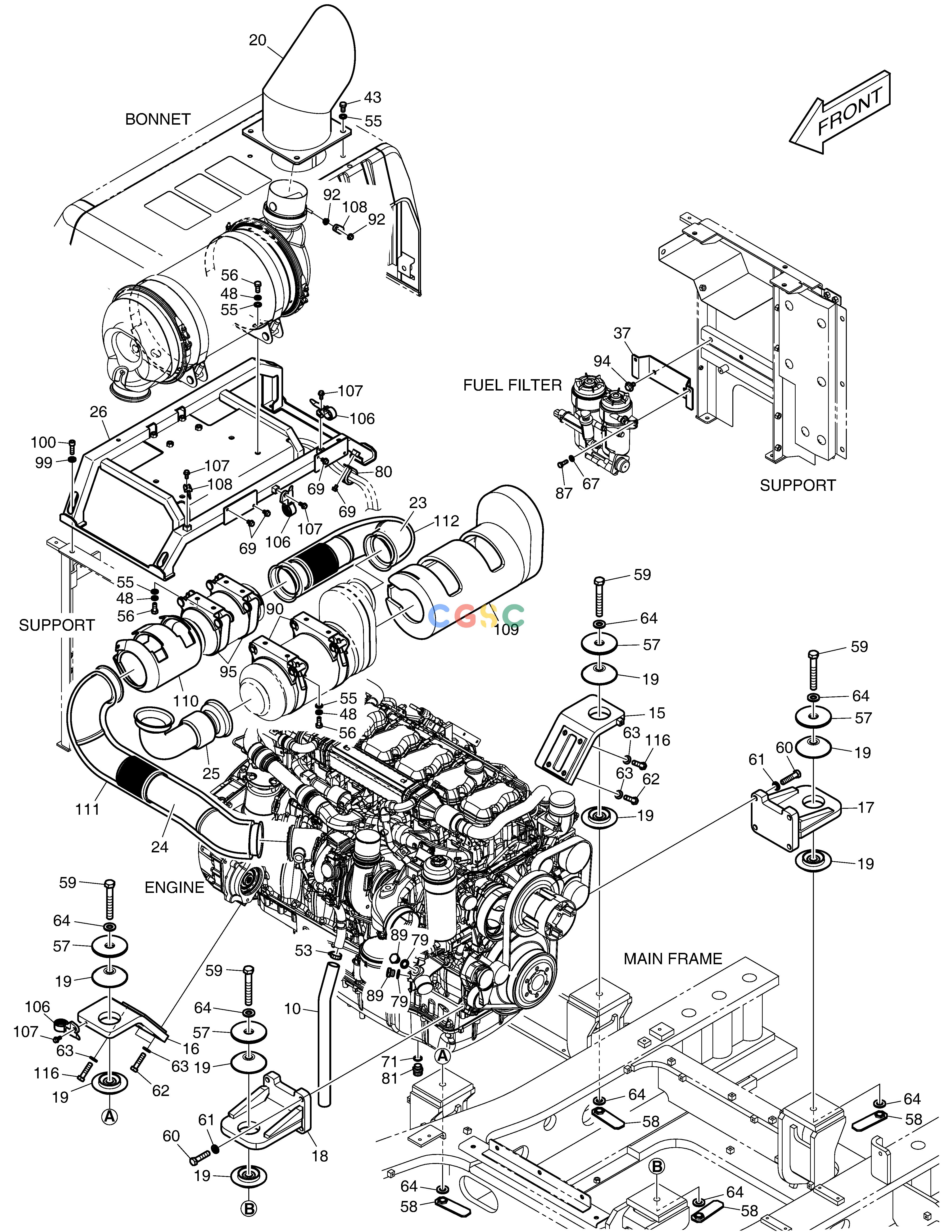

斗山零件查询ENGINE MOUNTING(1) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00846
|
[-] |
|
|
| 10. |
420107-00387
|
[1] |
|
|
| 100. |
S2215466
|
[4] |
BOLT
|
|
| 106. |
120402-00439
|
[3] |
CLIP
|
|
| 107. |
120106-00596
|
[4] |
BOLT
|
|
| 108. |
120402-00440
|
[2] |
CLIP
|
|
| 109. |
110935-00344
|
[1] |
|
|
| 110. |
110935-00345
|
[1] |
|
|
| 111. |
110935-00348
|
[1] |
|
|
| 112. |
110935-00349
|
[1] |
|
|
| 116. |
S0563066
|
[4] |
BOLT
|
|
| 15. |
110427-00403C
|
[1] |
|
110427-00403E
|
| 15. |
110427-00403E
|
[1] |
|
|
| 16. |
110427-00404E
|
[1] |
|
110427-00404G
|
| 16. |
110427-00404G
|
[1] |
|
|
| 17. |
110427-00409E
|
[1] |
|
|
| 18. |
110427-00400C
|
[1] |
|
|
| 19. |
161-00551
|
[8] |
RUBBER;E/G MOUNTING
|
|
| 20. |
420203-00398A
|
[1] |
|
|
| 23. |
420203-00392
|
[1] |
|
|
| 24. |
420203-00291C
|
[1] |
|
|
| 25. |
420203-00292A
|
[1] |
|
|
| 26. |
110958-01892B
|
[1] |
|
110958-01892C
|
| 26. |
110958-01892C
|
[1] |
|
|
| 37. |
110406-02158A
|
[1] |
|
|
| 43. |
S0515066
|
[4] |
BOLT
|
|
| 48. |
S5102703
|
[12] |
WASHER
|
|
| 53. |
S8470044
|
[1] |
CLAMP;HOSE
|
|
| 55. |
S5010713
|
[16] |
WASHER;PLAIN
|
|
| 56. |
S0515266
|
[12] |
BOLT
|
|
| 57. |
2114-1929
|
[4] |
WASHER
|
|
| 58. |
195-02643C
|
[4] |
SUPPORT;NUT
|
|
| 59. |
S0771566
|
[4] |
BOLT M20X1.5X140
|
|
| 60. |
S0765666
|
[8] |
BOLT
|
|
| 61. |
4114-1791A
|
[8] |
WASHER;HARD
|
|
| 62. |
S0563166
|
[4] |
BOLT M14X2.0X60
|
|
| 63. |
K1015638
|
[8] |
WASHER;HARDENED
|
|
| 64. |
DS0401181
|
[8] |
WASHER
|
|
| 67. |
S5010513
|
[3] |
WASHER
|
|
| 69. |
K1001029
|
[4] |
BOLT
|
|
| 71. |
S8180381
|
[1] |
|
|
| 79. |
401106-00337
|
[2] |
|
|
| 80. |
124-00208D7
|
[1] |
CLIP
|
|
| 81. |
410107-00010
|
[1] |
|
|
| 87. |
S0509066
|
[3] |
BOLT
|
|
| 89. |
2181-1130D5
|
[2] |
|
DS2909013
|
| 89. |
DS2909013
|
[2] |
|
|
| 90. |
110420-00647B
|
[2] |
|
110420-00647C
|
| 90. |
110420-00647C
|
[2] |
|
|
| 92. |
2121-1305
|
[2] |
NUT
|
|
| 94. |
DS0025015
|
[2] |
BOLT
|
|
| 95. |
110441-00010E
|
[2] |
|
110441-00010G
|
| 95. |
110441-00010G
|
[2] |
|
|
| 99. |
4114-1792A
|
[4] |
WASHER
|
|
