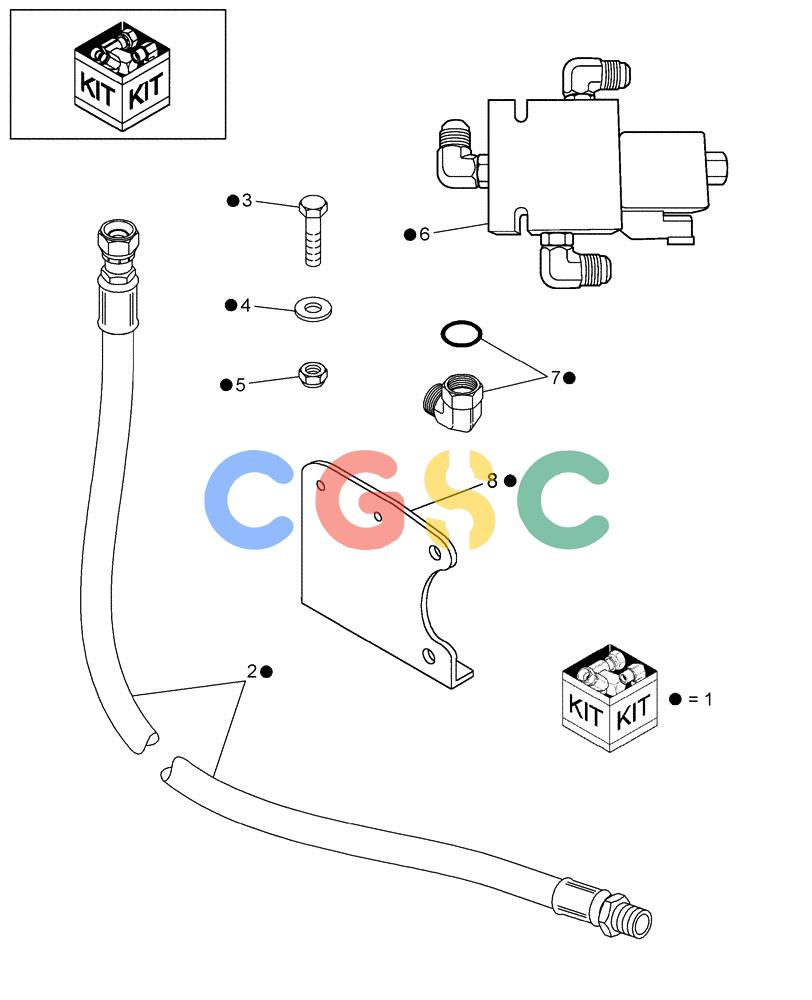

凯斯零件查询(RBX462) - CASE IH ROUND BALER (1/03-7/05) (18.97) - SPLITTER VALVE KIT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
412 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87014799
|
[1] |
DIA KIT, HARVESTER
|
PA
Splitter Valve, Includes: Installation Instructions
|
| 2. |
9600395
|
[4] |
FLEXIBLE HOSE,6.35 mm ID x 381.00 mm, SAE 100 R1
|
PA
|
| 3. |
328873
|
[2] |
BOLT,Hex, M6 x 1 x 120mm, Cl 8.8, Full Thd
|
PA
|
| 4. |
495-21031
|
[2] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 5. |
832-46406
|
[2] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 6. |
87016318
|
[2] |
VALVE
|
PA
|
| 7. |
218-5105
|
[6] |
ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
|
CAS
Includes: Ref. 9 Superseded by part number: 76344, 72186128
|
| 8. |
87038517
|
[1] |
MOUNTING PARTS
|
PA
Valve
|
| 9. |
237-6006
|
[1] |
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
|
CAS
Superseded by part number: 9617873
|
