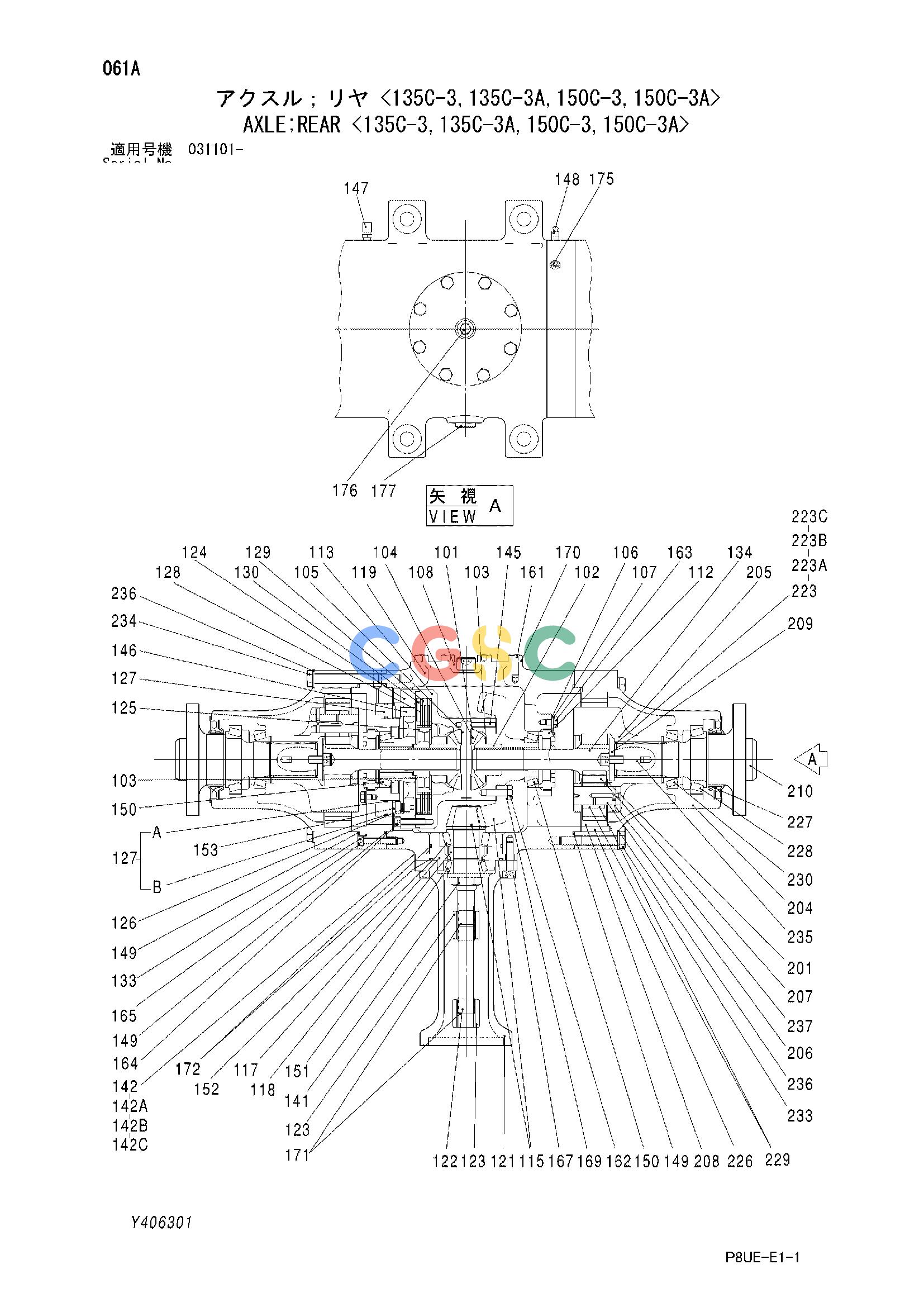

日立零件查询（CC135-3）AXLE;REAR <135C-3,135C-3A,150C-3,150C-3A> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
977 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | Y406301 | [1] | AXLE ASS'Y | |
| 101. | Y412268 | [2] | GEAR;PINION | |
| 102. | Y412269 | [2] | GEAR;BEVEL | |
| 103. | Y412270 | [3] | WASHER;THRUST | |
| 104. | Y412271 | [2] | GEAR;PINION | |
| 105. | Y412272 | [1] | SHAFT;PINION | |
| 106. | Y412273 | [2] | PLATE;LOCK | |
| 107. | Y412274 | [2] | WASHER;LOCK | |
| 108. | Y412275 | [1] | COVER | |
| 112. | Y412276 | [2] | NUT | |
| 113. | Y412277 | [1] | CASE;GEAR | |
| 115. | Y412278 | [1] | GEAR ASS'Y | |
| 117. | Y412279 | [1] | CAGE | |
| 118. | Y412280 | [1] | PIECE;DISTANT | |
| 119. | Y412281 | [1] | CASE | |
| 121. | Y412338 | [1] | ADAPTER | |
| 122. | Y412339 | [1] | SHAFT | |
| 123. | Y412284 | [2] | SLEEVE | |
| 124. | Y412285 | [1] | CASE | |
| 125. | Y412286 | [1] | CLUTCH | |
| 126. | Y412287 | [4] | SPRING | |
| 127. | Y412288 | [1] | PISTON ASS'Y | |
| 127A. | Y412289 | [1] | O-RING | |
| 127B. | 0428704 | [1] | O-RING | |
| 128. | Y412290 | [3] | PLATE;BRAKE | |
| 129. | Y412291 | [3] | PLATE | |
| 130. | Y412292 | [1] | PLATE | |
| 133. | Y412293 | [1] | CASE | |
| 134. | Y412294 | [2] | SHAFT | |
| 141. | Y412295 | [1] | NUT | |
| 142. | Y412296 | [1] | SHIM ASS'Y | |
| 142A. | Y412297 | [2] | SHIM 0.1mm | |
| 142B. | Y412298 | [1] | SHIM 0.15mm | |
| 142C. | Y412299 | [3] | SHIM 0.3mm | |
| 145. | Y412300 | [1] | PIN | |
| 146. | Y412301 | [8] | PIN | |
| 147. | 0428508 | [1] | BREATHER;AIR | |
| 148. | Y412302 | [1] | BREATHER;AIR | |
| 149. | Y412303 | [3] | O-RING | |
| 150. | Y412304 | [2] | BRG.;ROL. | |
| 151. | Y412305 | [1] | BRG.;ROL. | |
| 152. | Y412306 | [1] | BRG.;ROL. | |
| 153. | Y412307 | [1] | BRG.;NEEDLE | |
| 161. | 0763008 | [8] | BOLT | |
| 162. | 0763004 | [8] | BOLT | |
| 163. | Y412308 | [4] | BOLT | |
| 164. | Y412309 | [12] | BOLT | |
| 165. | Y412310 | [2] | BOLT | |
| 167. | Y412311 | [8] | BOLT | |
| 169. | Y412312 | [8] | WASHER;PLANE | |
| 170. | 0328832 | [8] | WASHER;SPRING | |
| 171. | Y412313 | [2] | RING;RETAINING | |
| 172. | Y412314 | [2] | O-RING | |
| 175. | Y412315 | [1] | PLUG | |
| 176. | 0153426 | [1] | PLUG | |
| 177. | 0153547 | [1] | PLUG;MAGNET | |
| 201. | Y412316 | [12] | WASHER;THRUST | |
| 204. | Y412317 | [2] | HOUSING | |
| 205. | Y412318 | [2] | SPIDER | |
| 206. | Y412319 | [6] | PIN | |
| 207. | Y412320 | [6] | GEAR;PLANETARY | |
| 208. | Y412321 | [2] | GEAR;INTERNAL | |
| 209. | Y412322 | [2] | WASHER;THRUST | |
| 210. | Y412323 | [2] | SHAFT;DRIVE | |
| 223. | Y412324 | [1] | SHIM ASS'Y | |
| 223A. | Y412325 | [2] | SHIM 0.1mm | |
| 223B. | Y412326 | [3] | SHIM 0.15mm | |
| 223C. | Y412340 | [3] | SHIM 0.5mm | |
| 226. | Y412328 | [6] | PIN | |
| 227. | Y412329 | [2] | SEAL;OIL | |
| 228. | Y412330 | [2] | BRG.;ROL. | |
| 229. | Y412331 | [12] | BRG.;NEEDLE | |
| 230. | Y412332 | [2] | BRG.;ROL. | |
| 233. | Y412333 | [12] | BOLT | |
| 234. | Y412334 | [12] | BOLT | |
| 235. | Y412335 | [2] | BOLT;SOCKET | |
| 236. | Y412336 | [24] | WASHER;PLANE | |
| 237. | Y412337 | [6] | PIN;SPRING | |
