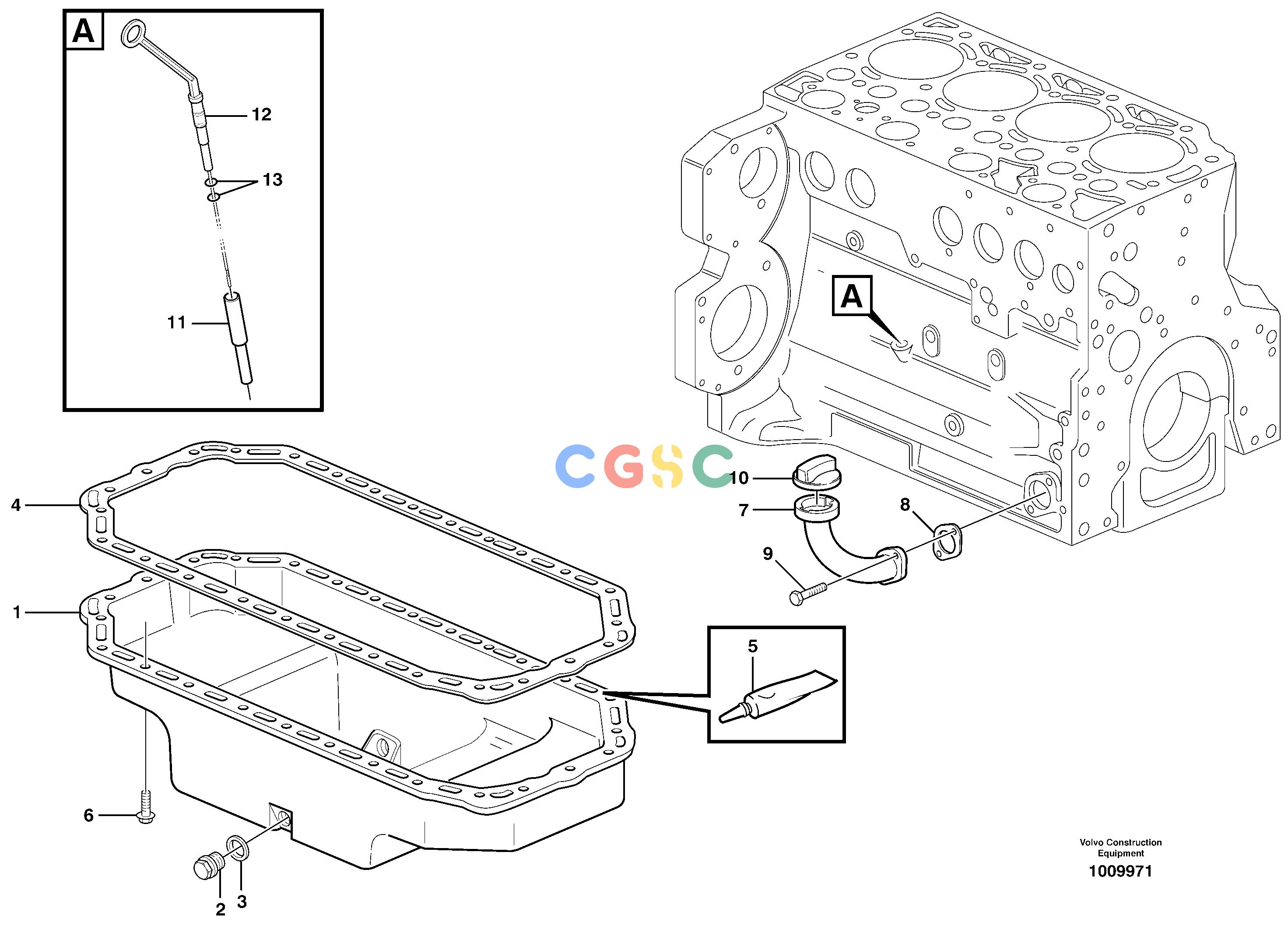

沃尔沃零件查询L50E Oil sumpBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
917 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20460018
|
[1] |
Oil pan
|
|
| 2. |
VOE20405506
|
[1] |
Plug
|
|
| 3. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 4. |
VOE20460021
|
[1] |
Gasket
|
|
| 5. |
|
[REQ] |
Packing Compound
|
|
| 6. |
VOE20405792
|
[26] |
Screw
|
|
| 7. |
VOE20496386
|
[1] |
Tube
|
|
| 8. |
VOE20405825
|
[1] |
Gasket
|
|
| 9. |
VOE20405885
|
[2] |
Screw
|
|
| 10. |
VOE20412589
|
[1] |
Filler cap
|
|
| 11. |
VOE23091815
|
[1] |
Guide tube
|
|
| 11. |
VOE21727990
|
[1] |
Sealing ring
|
|
| 12. |
VOE24426240
|
[1] |
Dipstick
|
ENG - 01099408
|
| 12. |
VOE22084982
|
[1] |
Dipstick
|
ENG 01099409 -
|
| 13. |
VOE20412343
|
[2] |
Sealing ring
|
|
