日立零件查询（CC135-3）HEAD COVER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
563 次

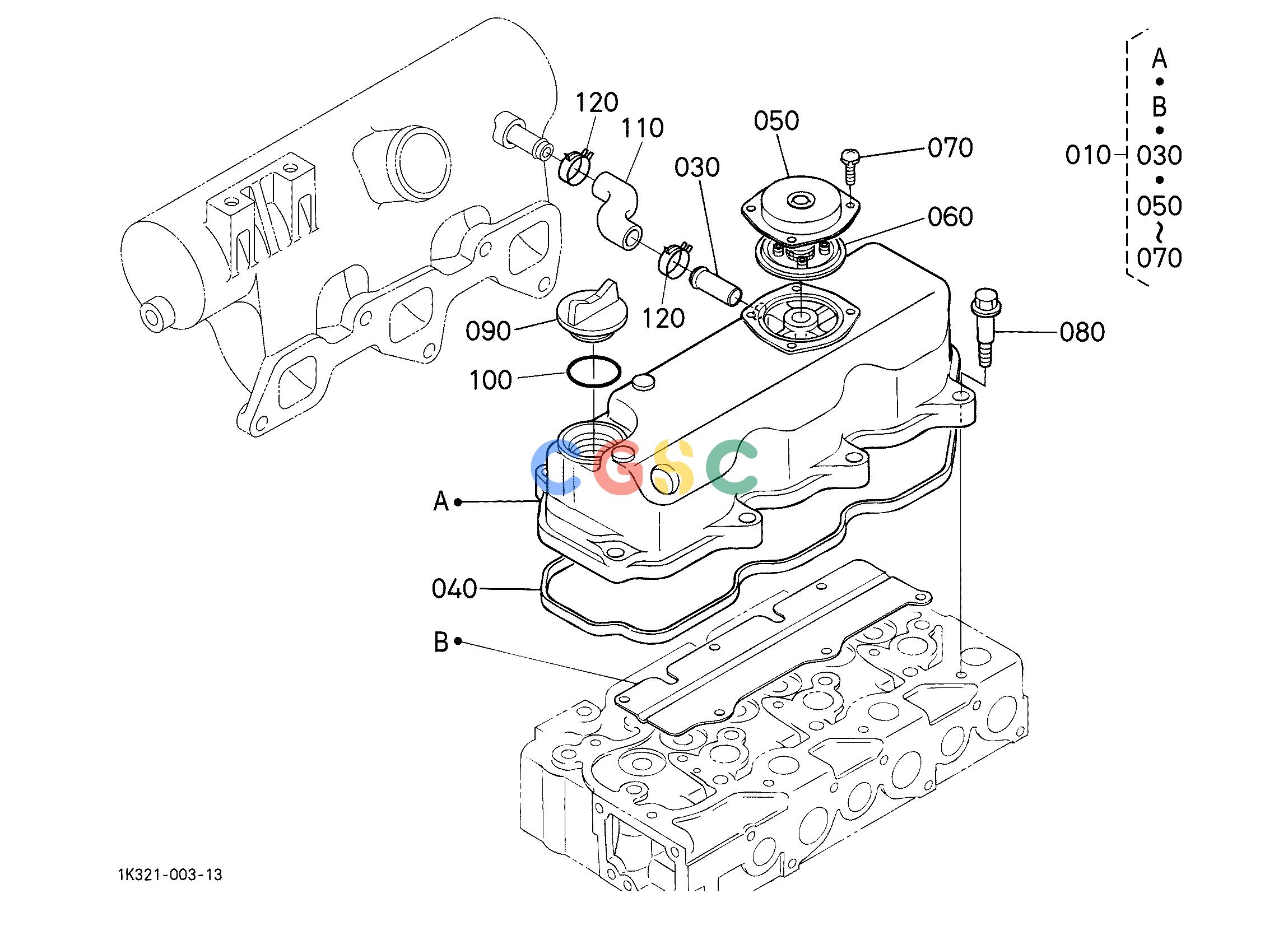

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | KBT1G75014506 | [1] | ASSY COVER,CYL.HEAD | |
| 020. | ---- | | BLANK | |
| 030. | KBT1733173342 | [1] | PIPE,WATER RETURN | |
| 040. | KBT1A02114523 | [1] | GASKET,HEAD COVER | |
| 050. | KBT1G80105120 | [1] | COVER,BREATHER | |
| 060. | KBT1G91105203 | [1] | COMP.VALVE,BREATHER | |
| 070. | KBT0302450510 | [4] | SCREW,WITH WASHER | |
| 080. | KBT1G91191022 | [8] | BOLT | |
| 090. | KBT1585233140 | [1] | PLUG,OIL FILLER | |
| 100. | KBT0481750300 | [1] | O RING | |
| 110. | KBT1K32105510 | [1] | TUBE,BREATHER | |
| 120. | KBT0931888155 | [2] | CLAMP,HOSE | |
