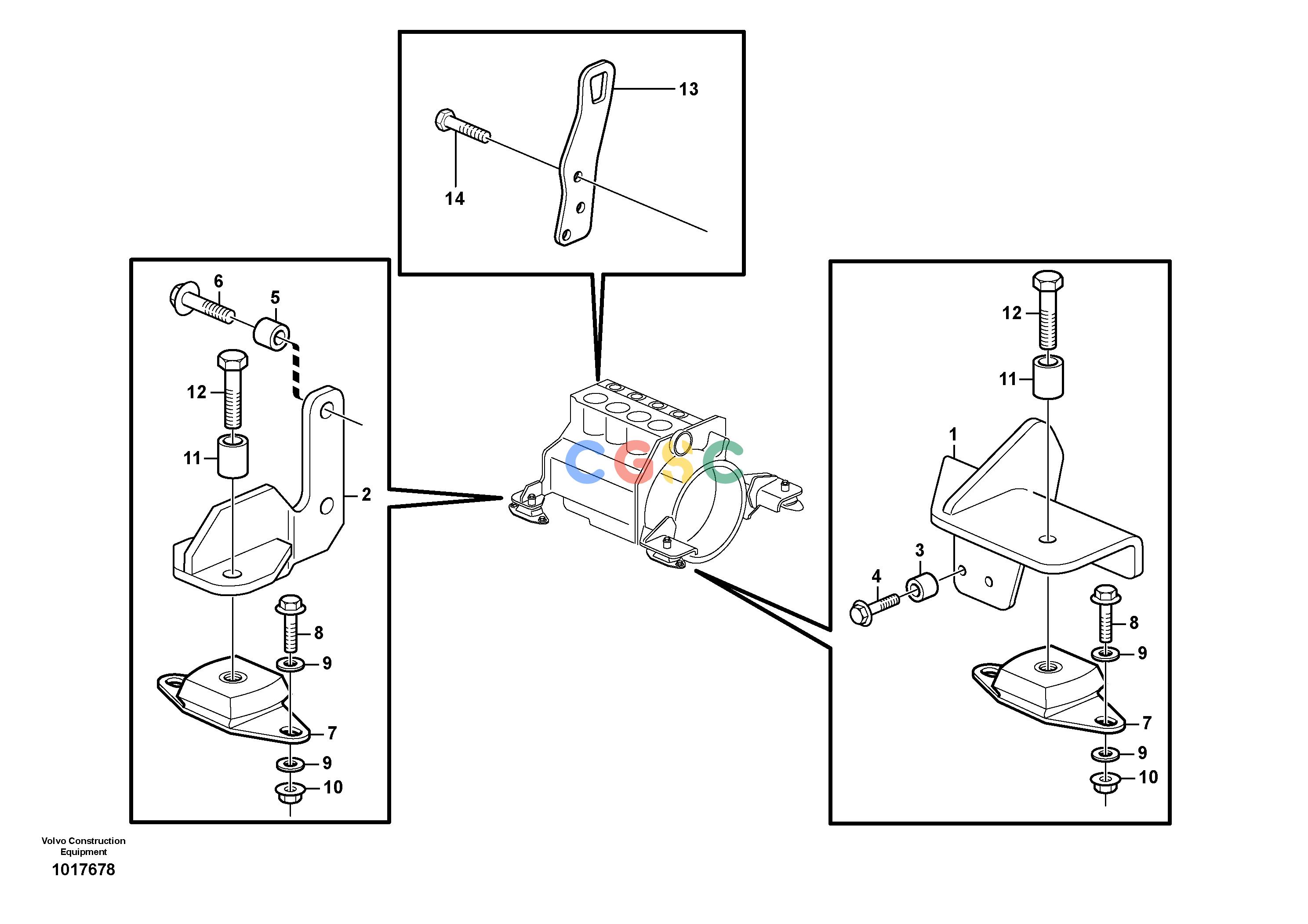

沃尔沃零件查询L50E Engine mountingBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11410392
|
[1] |
Plate
|
LH
|
| 1. |
VOE11410391
|
[1] |
Plate
|
RH
|
| 2. |
VOE11410404
|
[1] |
Engine anchorage
|
LH
|
| 2. |
VOE11410383
|
[1] |
Engine anchorage
|
RH
|
| 3. |
VOE4850822
|
[8] |
Spacer
|
|
| 4. |
VOE13965192
|
[8] |
Screw
|
|
| 5. |
VOE4713119
|
[4] |
Spacer ring
|
|
| 6. |
VOE60113129
|
[4] |
Flange screw
|
|
| 7. |
VOE11090592
|
[4] |
Rubber cushion
|
|
| 8. |
VOE13965192
|
[8] |
Screw
|
|
| 9. |
VOE13960145
|
[16] |
Washer
|
|
| 10. |
VOE971099
|
[8] |
Flange lock nut
|
|
| 11. |
VOE4713119
|
[4] |
Spacer ring
|
|
| 12. |
VOE60113129
|
[4] |
Flange screw
|
|
| 13. |
VOE20450854
|
[2] |
Lifting eye
|
|
| 14. |
VOE996813
|
[6] |
Flange screw
|
|
