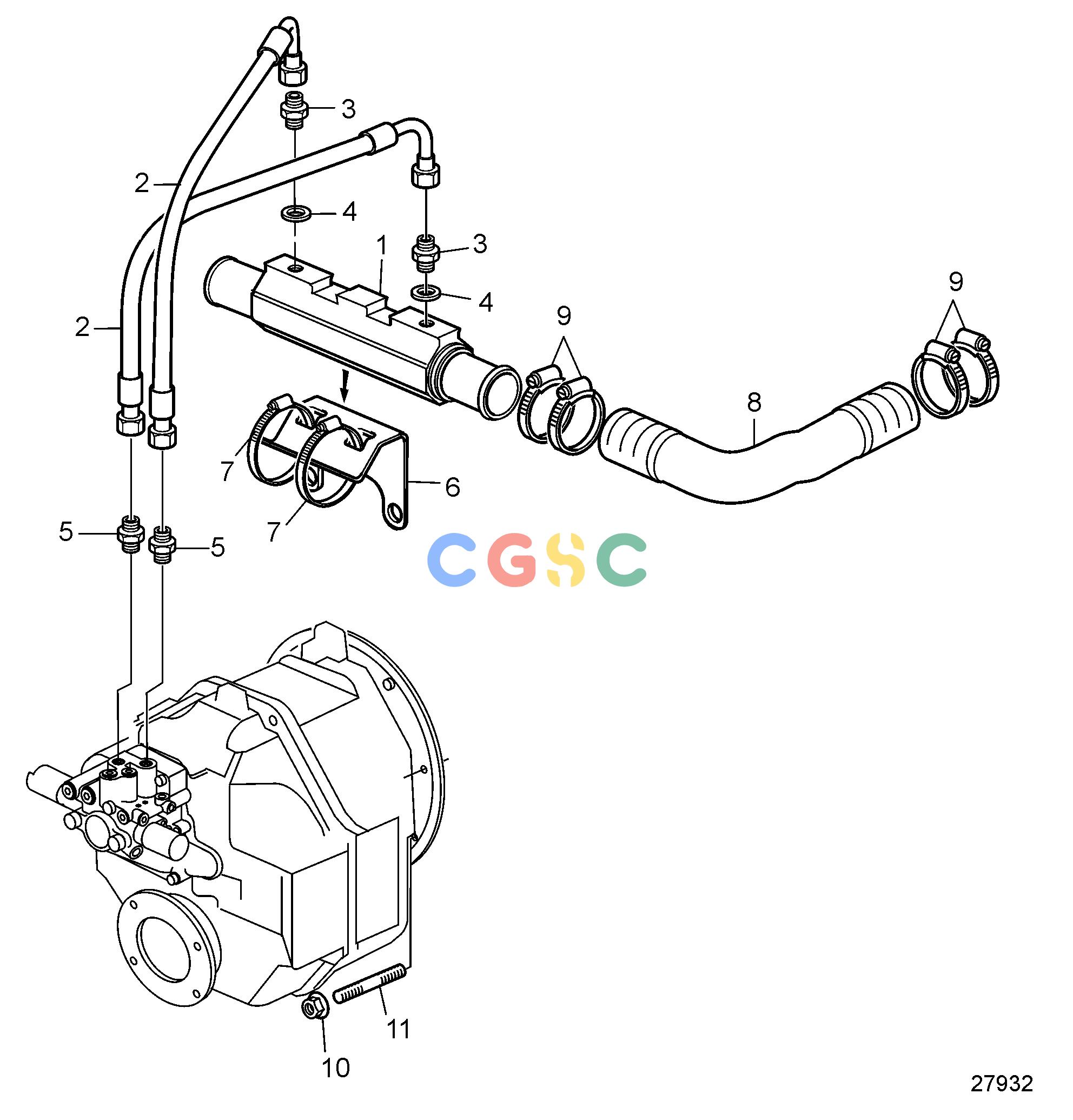

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GTransmissionsConnecting Components for HS25, HS45 and ZF45-1EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
419 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21149930
|
[1] |
Oil cooler
|
|
| 2. |
3584428
|
[2] |
Hose
|
|
| 3. |
963948
|
[2] |
Nipple
|
|
| 4. |
976930
|
[2] |
Gasket
|
|
| 5. |
941750
|
[2] |
Nipple
|
|
| 6. |
21522941
|
[1] |
Bracket
|
|
| 7. |
961673
|
[2] |
Hose clamp
|
|
| 8. |
22371868
|
[1] |
Hose
|
|
| 9. |
961669
|
[4] |
Hose clamp
|
|
| 10. |
971095
|
[6] |
Flange nut
|
|
| 11. |
953067
|
[6] |
Stud
|
|
