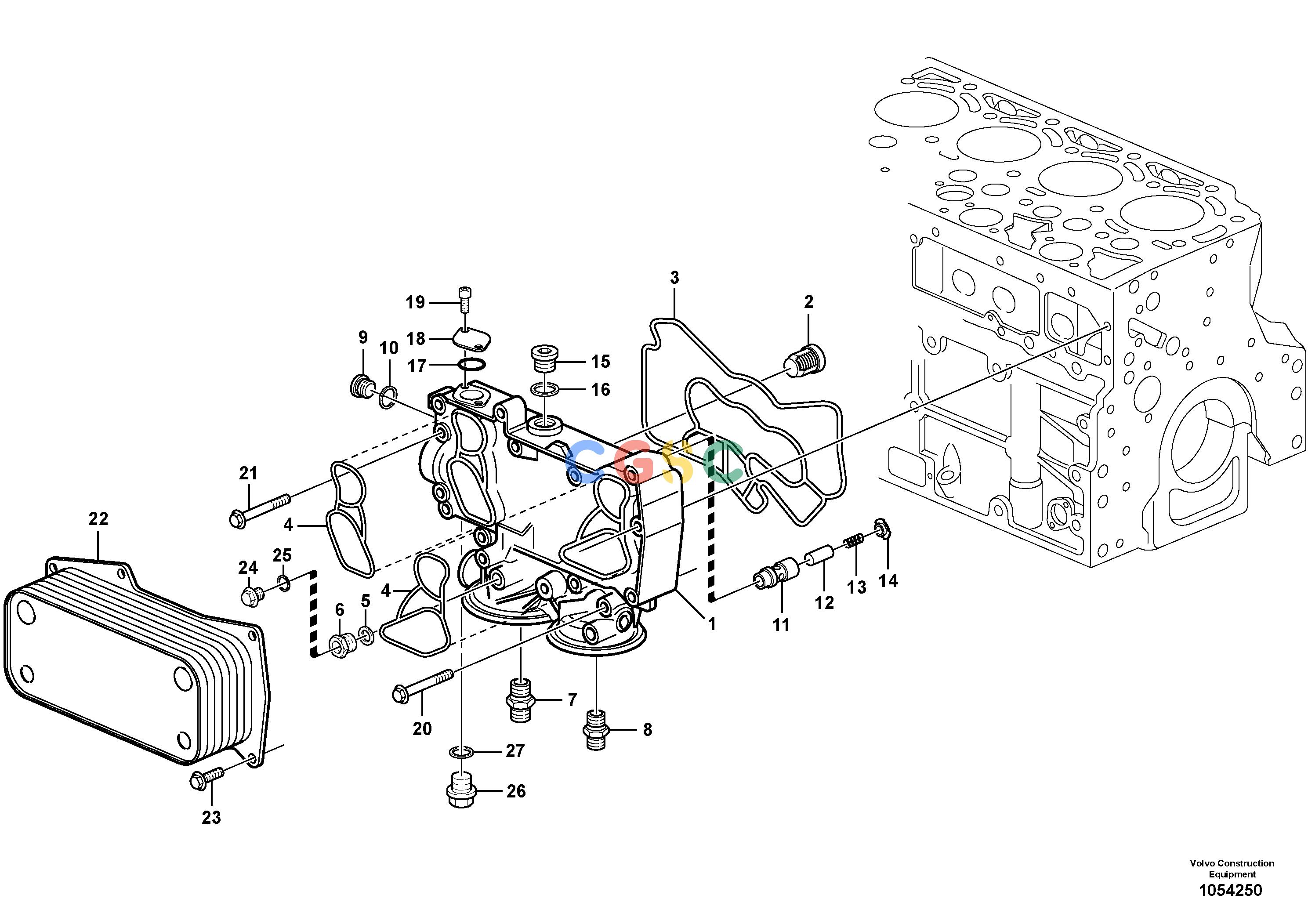

沃尔沃零件查询L50E Oil coolerBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
979 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21240959
|
[1] |
Oil cooler
|
|
| 2. |
VOE20459204
|
[1] |
Valve
|
|
| 3. |
VOE20459203
|
[1] |
Gasket
|
|
| 4. |
VOE21611489
|
[2] |
Gasket
|
|
| 5. |
VOE13969011
|
[1] |
Gasket
|
|
| 6. |
VOE21100412
|
[1] |
Screw
|
|
| 7. |
VOE20459201
|
[1] |
Nipple
|
|
| 8. |
VOE20459200
|
[1] |
Nipple
|
|
| 9. |
VOE20502245
|
[1] |
Plug
|
|
| 10. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 11. |
VOE21100405
|
[1] |
Valve seat
|
|
| 12. |
VOE20862028
|
[1] |
Control plunger
|
|
| 13. |
VOE21100407
|
[1] |
Spring
|
|
| 14. |
VOE21100410
|
[1] |
Sleeve
|
|
| 15. |
VOE20459195
|
[1] |
Plug
|
|
| 16. |
VOE13947628
|
[1] |
Plane gasket
|
|
| 17. |
VOE20405599
|
[1] |
Sealing ring
|
|
| 18. |
VOE21072778
|
[1] |
Flange
|
|
| 19. |
VOE20405885
|
[2] |
Screw
|
|
| 20. |
VOE996812
|
[3] |
Flange screw
|
|
| 21. |
VOE20405672
|
[5] |
Screw
|
|
| 22. |
VOE20532396
|
[1] |
Oil Cooler
|
|
| 23. |
VOE20405885
|
[7] |
Screw
|
|
| 24. |
VOE20450895
|
[1] |
Plug
|
|
| 24. |
VOE21011809
|
[1] |
Plug
|
INCL. SEALING RING
|
| 25. |
VOE13947281
|
[1] |
Gasket
|
|
| 26. |
VOE888474
|
[1] |
Screw
|
|
| 27. |
VOE20450890
|
[1] |
Sealing ring
|
|
