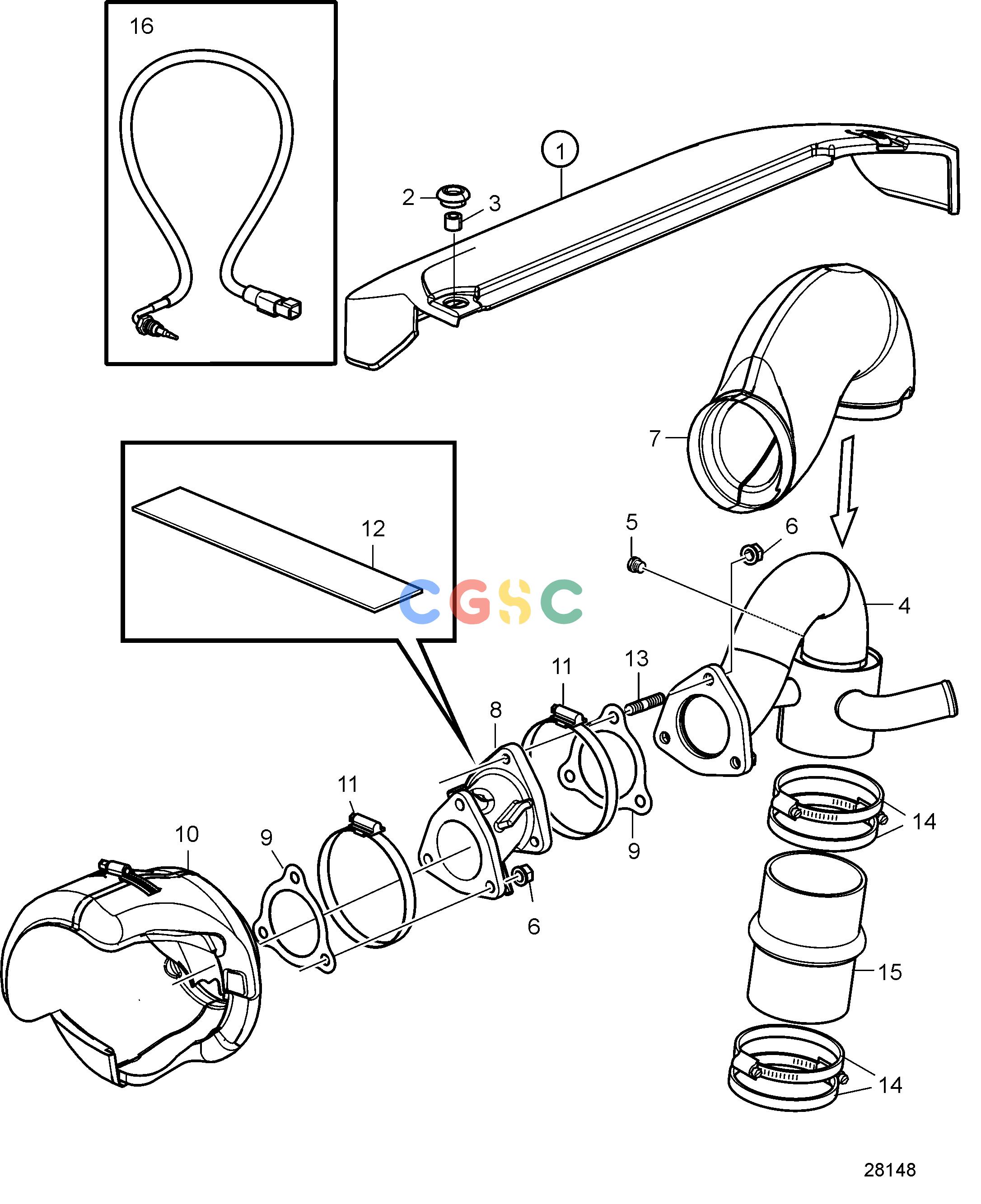

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GTransmissionsConnecting parts 290 4''EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22420909
|
[1] |
Engine casing
|
|
| 2. |
992404
|
[3] |
Grommet
|
|
| 3. |
40005089
|
[3] |
Spacer
|
|
| 4. |
22420926
|
[1] |
Exhaust pipe
|
|
| 5. |
981749
|
[1] |
Plug
|
|
| 6. |
981152
|
[6] |
Flange nut
|
|
| 7. |
21985884
|
[1] |
Heat shield
|
|
| 8. |
22394441
|
[1] |
Exhaust pipe extensi
|
|
| 9. |
1275549
|
[2] |
Gasket
|
|
| 10. |
21985886
|
[1] |
Heat shield
|
|
| 11. |
22274888
|
[2] |
Hose clamp
|
|
| 12. |
22030177
|
[1] |
Heat shield
|
|
| 13. |
977581
|
[3] |
Stud
|
|
| 14. |
22274887
|
[4] |
Hose clamp
|
|
| 15. |
843228
|
[1] |
Exhaust hose
|
|
| 16. |
21673187
|
[1] |
Temperature sensor
|
|
