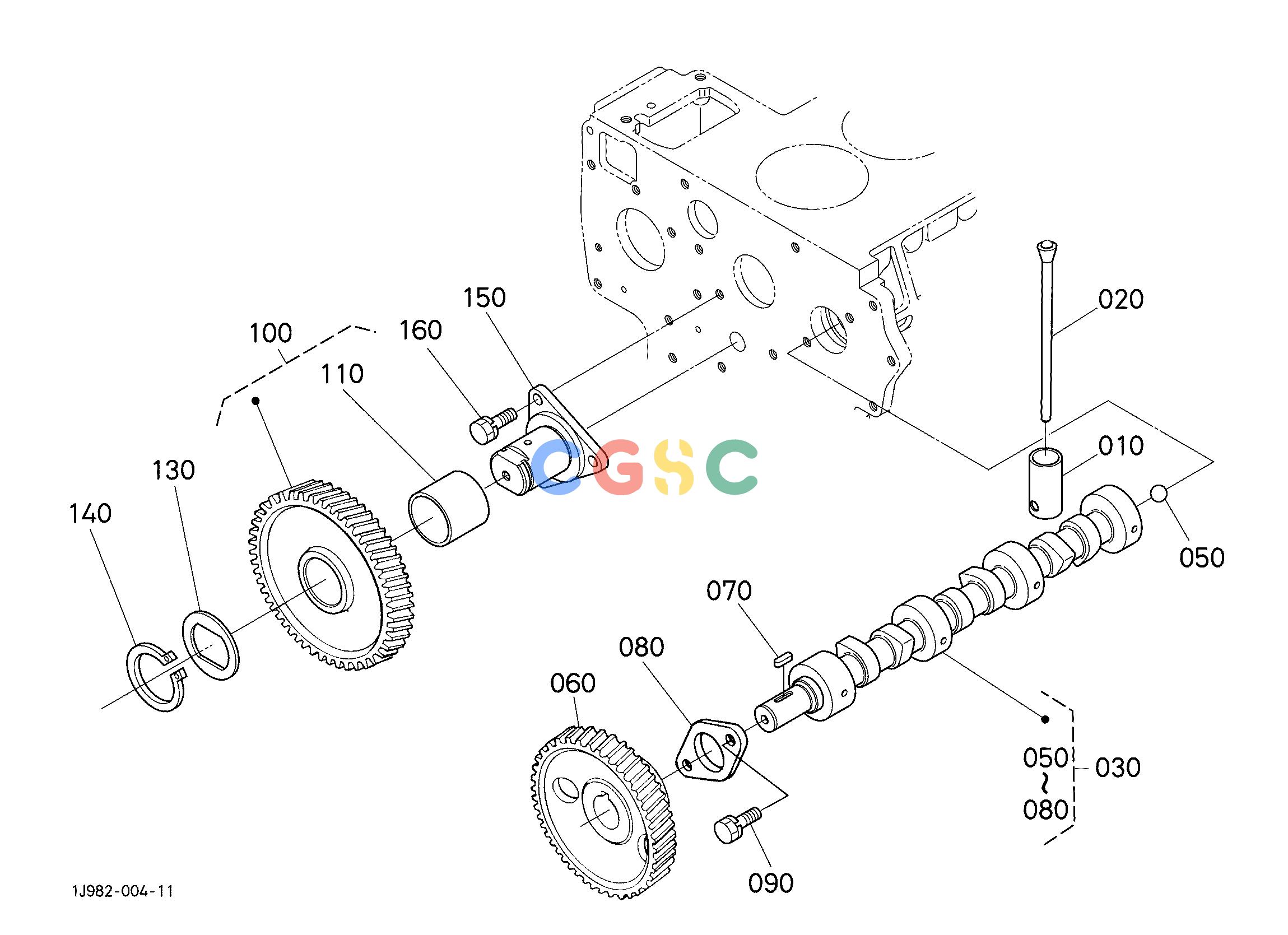

日立零件查询（CC135-3）CAMSHAFT AND IDLE GEAR SHAFT Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
342 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | KBT1560115550 | [6] | TAPPET | |
| 010. | KBT1560115553 | [6] | TAPPET | 4 |
| 020. | KBT1901315110 | [6] | PUSH ROD | |
| 030. | KBT1A04116010 | [1] | ASSY CAMSHAFT | |
| 040. | ---- | | BLANK | |
| 050. | KBT0771500401 | [1] | BALL | |
| 060. | KBT1A09116513 | [1] | GEAR,CAM | |
| 070. | KBT0571200720 | [1] | KEY,FEATHER | |
| 080. | KBT1522116270 | [1] | STOPPER,CAMSHAFT | |
| 090. | KBT0112350818 | [2] | BOLT | |
| 100. | KBT1G79124010 | [1] | COMP.GEAR,IDLE | |
| 110. | KBT1A02124980 | [1] | BUSH,IDLE GEAR | |
| 120. | ---- | | BLANK | |
| 130. | KBT1A02124370 | [1] | COLLAR | |
| 140. | KBT1545195400 | [1] | CIR CLIP,EXTERNAL | |
| 150. | KBT1A02124252 | [1] | SHAFT,IDLE GEAR | |
| 160. | KBT0112350818 | [3] | BOLT | |
