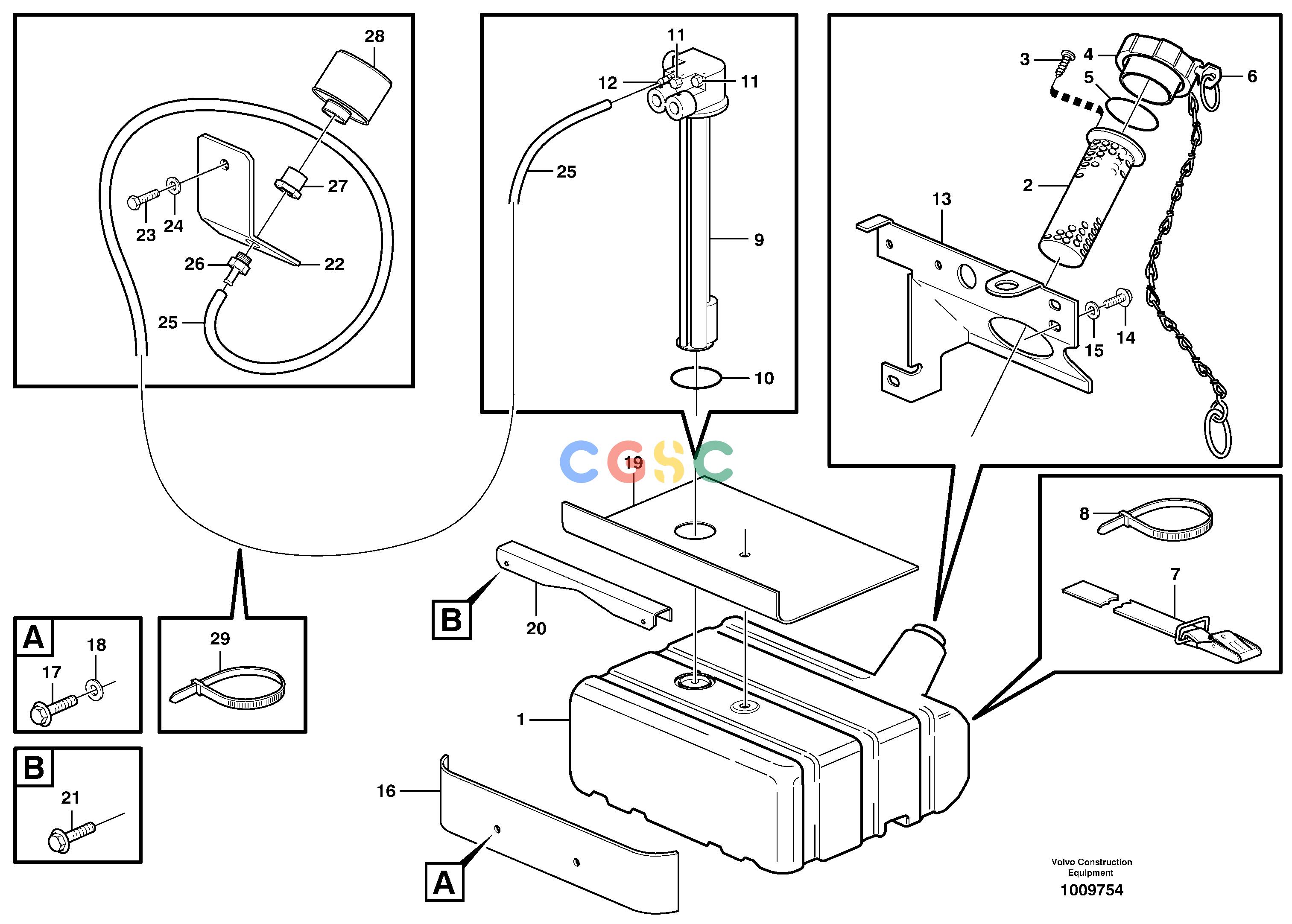

沃尔沃零件查询L50E Fuel tank with fitting partsBRAZIL, S/N 71001 -11170093-11170365NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
184 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11410586
|
[1] |
Fuel tank
|
|
| 2. |
VOE11173801
|
[1] |
Strainer
|
|
| 3. |
VOE955127
|
[2] |
Cross recessed screw
|
|
| 4. |
VOE1189577
|
[1] |
Filler cap
|
|
| 5. |
VOE1698164
|
[1] |
Gasket
|
|
| 6. |
VOE11991396
|
[2] |
Key
|
|
| 7. |
VOE11132499
|
[2] |
Retaining strap
|
L = 3200MM
|
| 8. |
VOE14016673
|
[2] |
Strip clamp
|
|
| 9. |
VOE11170365
|
[1] |
Tank unit
|
|
| |
VOE15010278
|
|
Tank unit
|
|
| 10. |
VOE8151926
|
[1] |
O-ring
|
|
| 11. |
VOE11712846
|
[1] |
Nipple
|
|
| 12. |
VOE11712847
|
[2] |
Nipple
|
|
| 13. |
VOE11147331
|
[1] |
Cover plate
|
|
| 14. |
VOE946440
|
[3] |
Flange screw
|
|
| 15. |
VOE13960141
|
[3] |
Washer
|
|
| 16. |
VOE11147370
|
[1] |
Brace
|
|
| 17. |
VOE13965192
|
[2] |
Screw
|
|
| 18. |
VOE13960145
|
[2] |
Washer
|
|
| 19. |
VOE11140699
|
[1] |
Rubber Cloth
|
|
| 20. |
VOE11147633
|
[1] |
Attachment
|
|
| 21. |
VOE60113082
|
[2] |
Flange screw
|
|
| 22. |
VOE11172780
|
[1] |
Anchorage
|
|
| 23. |
VOE13946173
|
[1] |
Screw
|
|
| 24. |
VOE11117464
|
[1] |
Plain washer
|
|
| 25. |
VOE11024720
|
[REQ] |
Plastic hose
|
L=1500MM
|
| 26. |
VOE949221
|
[1] |
Hose nipple
|
|
| 27. |
VOE4854955
|
[1] |
Nipple
|
|
| 28. |
VOE11172907
|
[1] |
Air filter
|
|
| 29. |
VOE4881440
|
[4] |
Cable tie
|
|
