日立零件查询（CC135-3）FLYWHEEL Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
197 次

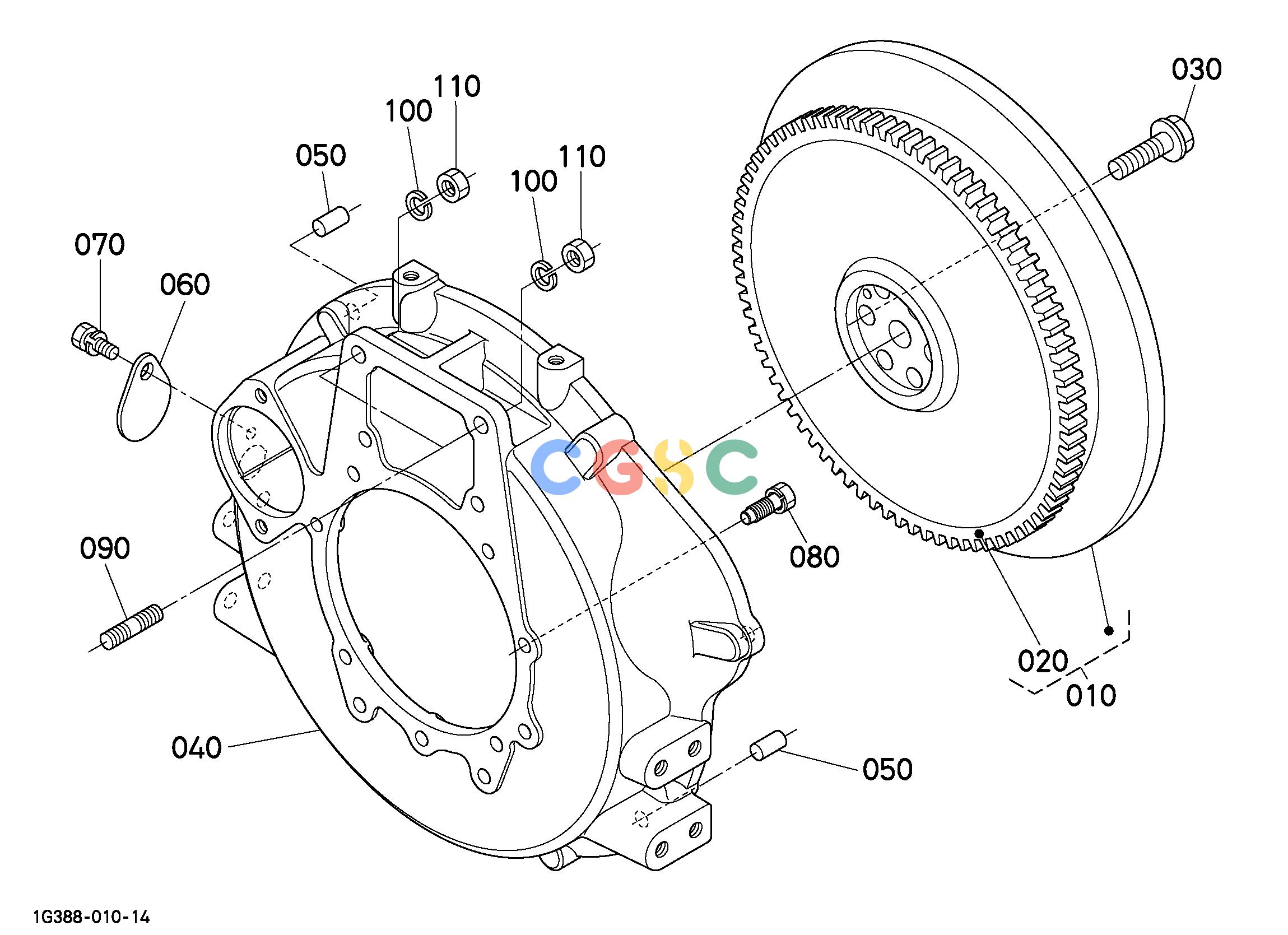

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | KBT1K33625010 | [1] | COMP.FLYWHEEL | |
| 010. | KBT1K33625013 | [1] | COMP.FLYWHEEL | 3 |
| 020. | KBT1A02163820 | [1] | GEAR,RING | |
| 030. | KBT1532125163 | [6] | BOLT,FLYWHEEL | |
| 030. | KBT1G91625160 | [6] | BOLT,FLYWHEEL | 3 |
| 040. | KBT1G38804610 | [1] | HOUSING,FLYWHEEL | |
| 050. | KBT6884966430 | [2] | PIN,KNOCK | |
| 060. | KBT3122014170 | [1] | COVER | |
| 070. | KBT0112350812 | [1] | BOLT | |
| 080. | KBT1642791010 | [11] | BOLT | |
| 090. | KBT0157451230 | [2] | STUD | |
| 100. | KBT0451260120 | [2] | WASHER,SPRING | |
| 110. | KBT0217650120 | [2] | NUT | |
