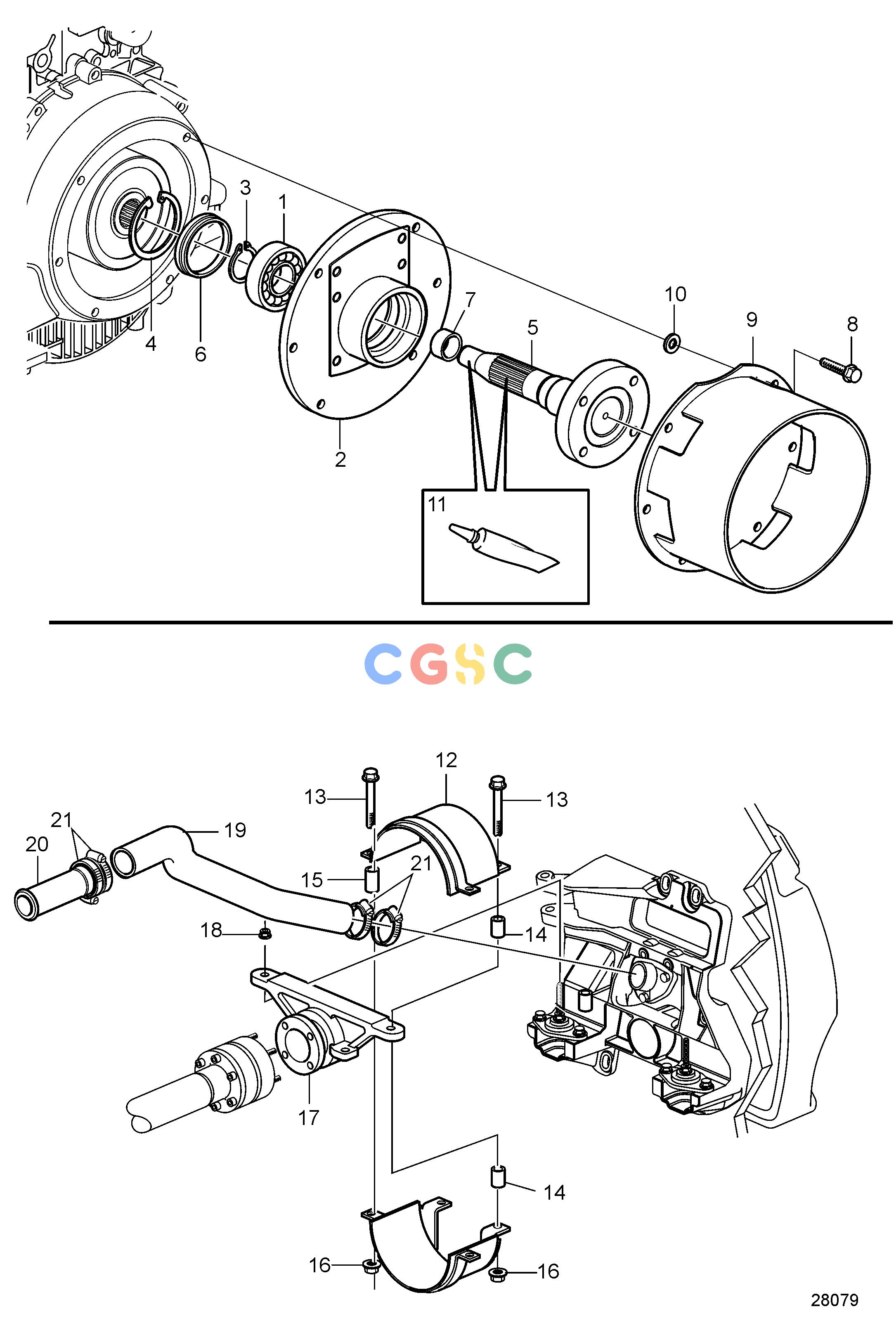

沃尔沃零件查询D3-110I-G; D3-140A-G; D3-140I-G; D3-150I-G; D3-170A-G; D3-170I-G; D3-200A-G; D3-200I-G; D3-220A-G; D3-220I-GTransmissionsJack Shaft Kit and Water JetEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
116 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
181355
|
[1] |
Ball bearing
|
Water Jet
|
| 2. |
853161
|
[1] |
Bearing housing
|
Water Jet
|
| 3. |
914465
|
[1] |
Snap ring
|
Water Jet
|
| 4. |
914538
|
[1] |
Snap ring
|
Water Jet
|
| 5. |
3888105
|
[1] |
Shaft
|
Water Jet
|
| 6. |
3888987
|
[1] |
Spacer ring
|
Water Jet
|
| 7. |
21642338
|
[1] |
Spacer sleeve
|
Water Jet
|
| 8. |
965186
|
[6] |
Flange screw
|
|
| 9. |
3588817
|
[1] |
Cover
|
|
| 10. |
190509
|
[6] |
Washer
|
|
| 11. |
1161325
|
[1] |
Silicone grease
|
|
| 12. |
3817552
|
[2] |
Cover
|
|
| 13. |
948039
|
[4] |
Flange screw
|
|
| 14. |
983740
|
[4] |
Spacer sleeve
|
|
| 15. |
983741
|
[2] |
Spacer sleeve
|
|
| 16. |
971096
|
[4] |
Flange nut
|
|
| 17. |
3862530
|
[1] |
Kit
|
|
| 18. |
977938
|
[1] |
Flange lock nut
|
|
| 19. |
22371852
|
[1] |
Hose
|
|
| 20. |
861090
|
[1] |
Tube
|
|
| 21. |
961669
|
[4] |
Hose clamp
|
|
