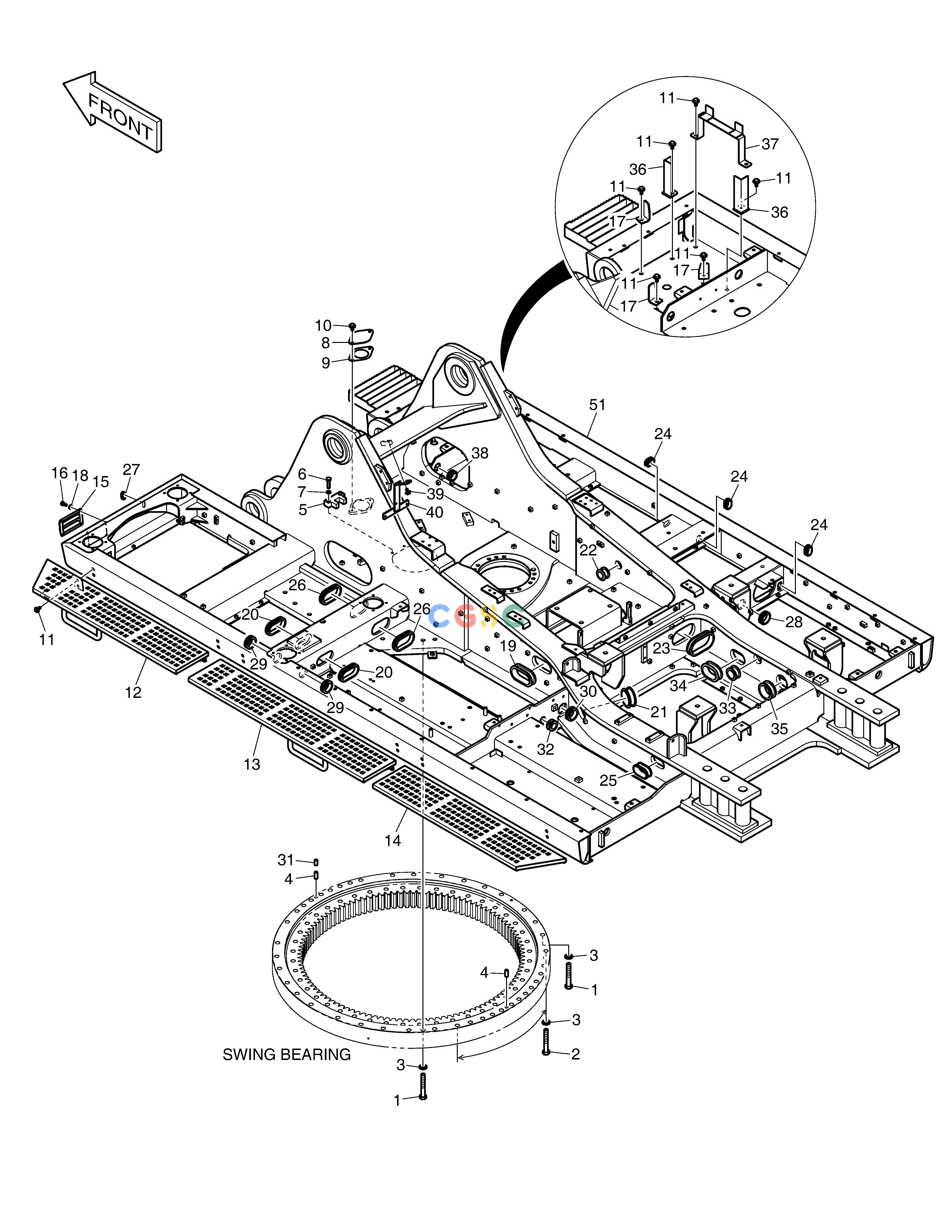

斗山零件查询MAIN FRAME DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
840 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
160620-00409
|
[-] |
|
|
| 1. |
120-00046A
|
[30] |
BOLT
|
|
| 10. |
DS0025023
|
[2] |
BOLT
|
|
| 11. |
DS0025025
|
[19] |
BOLT
|
|
| 12. |
625-00171B
|
[1] |
STEP
|
|
| 13. |
625-00172B
|
[1] |
STEP
|
|
| 14. |
625-00173B
|
[1] |
STEP
|
|
| 15. |
110921-02771
|
[1] |
GUARD,LAMP
|
|
| 16. |
2120-2166D5
|
[4] |
BOLT
|
|
| 17. |
195-02623B
|
[3] |
BRACKET
|
|
| 18. |
2114-1898D14
|
[4] |
WASHER
|
|
| 19. |
DS7601035
|
[1] |
BUSHING;RUBBER
|
|
| 2. |
S0776266
|
[14] |
BOLT
|
|
| 20. |
DS7601103
|
[2] |
|
|
| 21. |
DS7603082
|
[1] |
|
|
| 22. |
DS7603058
|
[1] |
BUSHING;RUBBER
|
|
| 23. |
DS7601058
|
[1] |
|
|
| 24. |
DS7601097
|
[3] |
|
|
| 25. |
2160-1201D13
|
[1] |
BUSHING;RUBBER
|
|
| 26. |
DS7601106
|
[2] |
|
|
| 27. |
160-00081
|
[1] |
CAP;RUBBER
|
|
| 28. |
DS7603093
|
[1] |
|
|
| 29. |
DS7603097
|
[2] |
|
|
| 3. |
2114-1831A
|
[44] |
. WASHER
|
|
| 30. |
DS7603088
|
[1] |
GUIDE,RUBBER
|
|
| 31. |
160-00027
|
[1] |
CAP
|
|
| 32. |
DS7603051
|
[1] |
|
|
| 33. |
DS7603061
|
[1] |
BUSHING;RUBBER
|
|
| 34. |
2160-1201D23
|
[1] |
|
|
| 35. |
2160-1004D42
|
[1] |
BUSHING;RUBBER
|
|
| 36. |
110406-02360
|
[2] |
|
|
| 37. |
110406-02361
|
[1] |
|
|
| 38. |
DS7603059
|
[1] |
BUSHING;RUBBER
|
|
| 39. |
DS0025015
|
[2] |
BOLT
|
|
| 4. |
2123-1107D7
|
[2] |
PIN,KNOCK
|
|
| 40. |
110452-00147
|
[1] |
|
|
| 5. |
K1002107A
|
[1] |
PLATE
|
|
| 51. |
160620-00410E
|
[1] |
|
|
| 6. |
S0565466
|
[2] |
BOLT
|
|
| 7. |
S5102903
|
[2] |
WASHER
|
|
| 8. |
621-02938B
|
[1] |
COVER
|
|
| 9. |
180-00463
|
[1] |
PACKING
|
|
