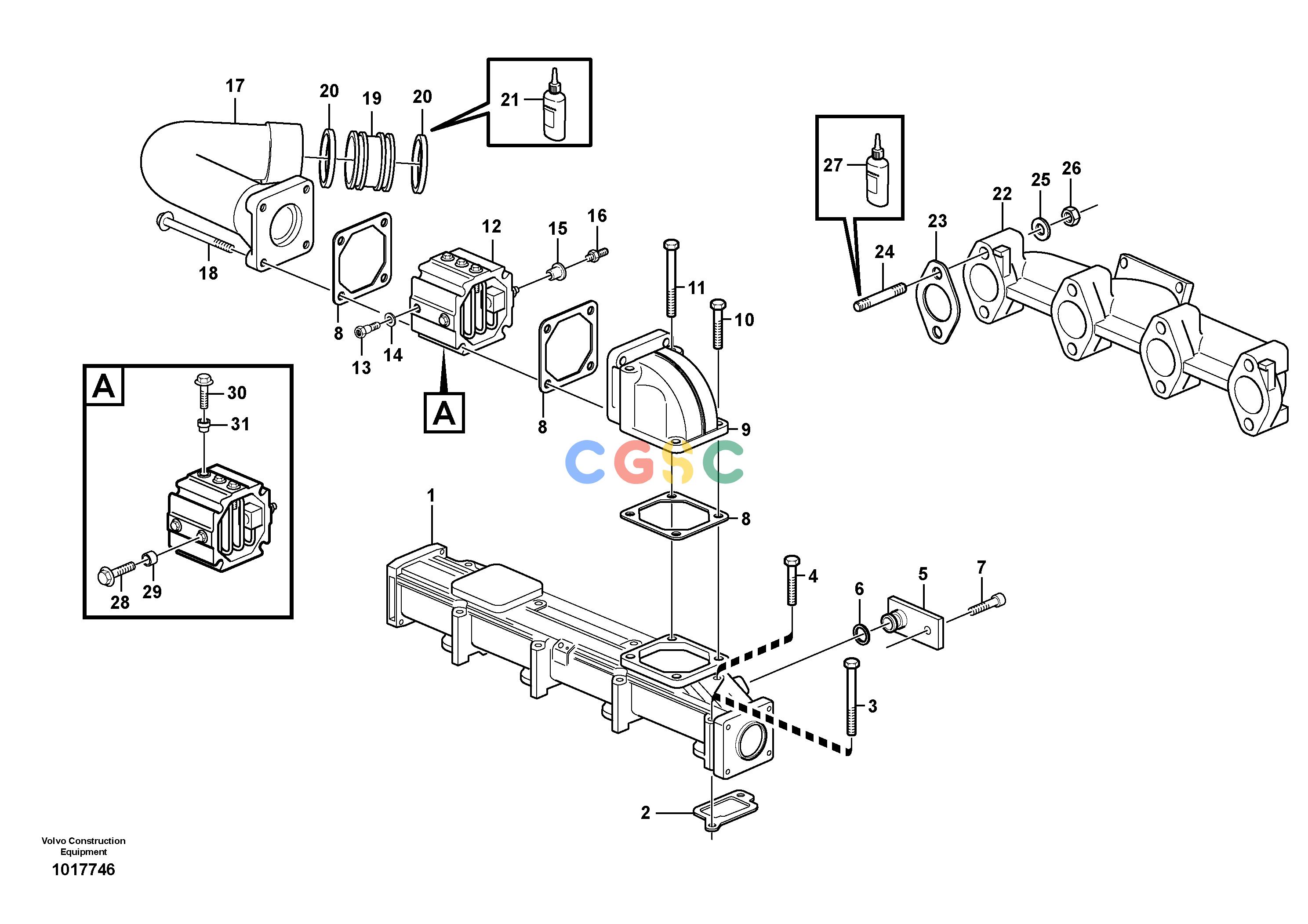

沃尔沃零件查询L50E Inlet manifold and exhaust manifoldBRAZIL, S/N 71001 - NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
299 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20565883
|
[1] |
Charge air pipe
|
|
| 2. |
VOE21815244
|
[4] |
Gasket
|
|
| 3. |
VOE20459830
|
[4] |
Screw
|
|
| 4. |
VOE22278501
|
[4] |
Hexagon screw
|
|
| 5. |
VOE20459910
|
[1] |
Plug
|
|
| 6. |
VOE20459909
|
[1] |
Sealing ring
|
|
| 7. |
VOE20450694
|
[1] |
Screw
|
|
| 8. |
VOE20531832
|
[3] |
Gasket
|
|
| 9. |
VOE20459938
|
[1] |
Elbow
|
|
| 10. |
VOE20405504
|
[2] |
Screw
|
M8x30MM
|
| 11. |
VOE20460124
|
[2] |
Screw
|
|
| 12. |
VOE20498227
|
[1] |
Heater
|
ENG - 01047118
|
| 12. |
VOE20758403
|
[1] |
Heater
|
ENG 01047119 -
|
| 13. |
VOE20498498
|
[1] |
Connector
|
|
| 14. |
VOE20498524
|
[1] |
Sealing ring
|
|
| 15. |
VOE20521558
|
[1] |
Insulator
|
|
| 16. |
VOE20572787
|
[1] |
Connector
|
ENG - 01099408
|
| 16. |
VOE20726089
|
[1] |
Connector
|
ENG 01099409 -
|
| 17. |
VOE20572780
|
[1] |
Elbow
|
|
| 18. |
VOE20460123
|
[4] |
Screw
|
|
| 19. |
VOE20405616
|
[1] |
Adapter
|
|
| 20. |
VOE20405536
|
[2] |
Sealing ring
|
|
| 21. |
|
[REQ] |
Fitting Compound
|
|
| 22. |
VOE21900911
|
[1] |
Exhaust pipe
|
|
| 23. |
VOE20557208
|
[4] |
Gasket
|
|
| 24. |
VOE20405587
|
[8] |
Stud
|
|
| 25. |
VOE20799731
|
[8] |
Washer
|
|
| 26. |
VOE20505959
|
[8] |
Hexagon nut
|
|
| 27. |
|
[REQ] |
Fitting Compound
|
|
| 28. |
VOE13949578
|
[2] |
Screw
|
|
| 29. |
VOE20758437
|
[2] |
Insulator
|
|
| 30. |
VOE20550356
|
[3] |
Bolt
|
|
| 31. |
VOE20550336
|
[3] |
Insulator
|
|
