日立零件查询（CC135-3）FUEL FILTER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
561 次

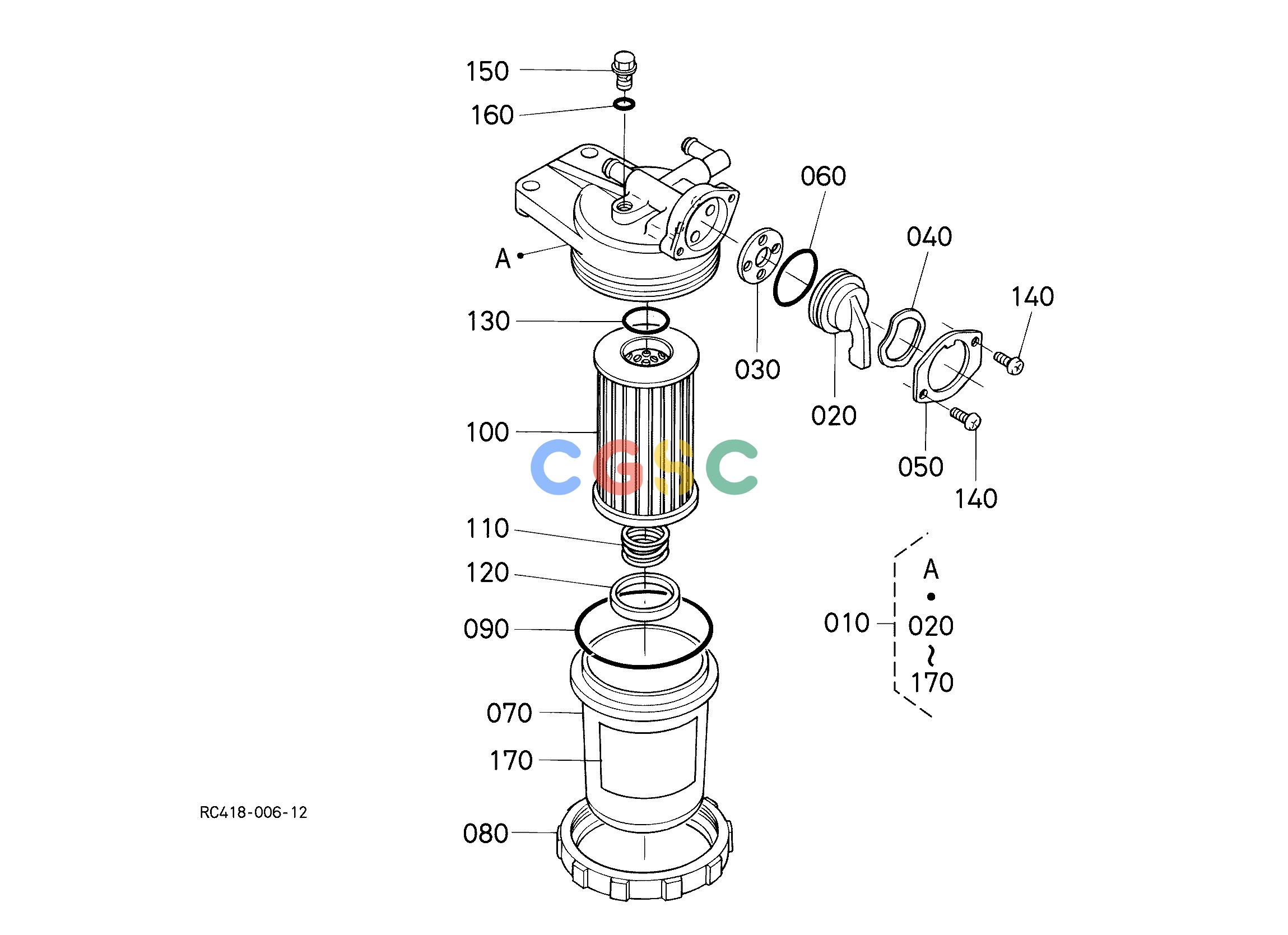

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | KBTRA21151270 | [1] | ASSY FILTER,FUEL | |
| 020. | KBT1552143522 | [1] | HANDLE,FILTER | |
| 030. | KBT1552143672 | [1] | GASKET | |
| 040. | KBT1A00143540 | [1] | PLATE,THRUST | |
| 050. | KBT1552143552 | [1] | RETAINER,HANDLE | |
| 060. | KBT0481110290 | [1] | O RING | |
| 070. | KBT1552143130 | [1] | CUP,FILTER | |
| 080. | KBT1552143150 | [1] | RING,RETAINER | |
| 090. | KBT0481150650 | [1] | O RING | |
| 100. | KBTRA21151280 | [1] | ELEMENT | |
| 110. | KBTRA21151290 | [1] | SPRING | |
| 120. | KBT1583143250 | [1] | FLOAT | |
| 130. | KBT0481600160 | [1] | O RING | |
| 140. | KBT0305450308 | [2] | SCREW,PAN-HEAD | |
| 150. | KBT1523143283 | [1] | SCREW,AIR BLEEDER | |
| 160. | KBT0481700060 | [1] | O RING | |
| 170. | KBT1687388430 | [1] | LABEL,FUEL | |
