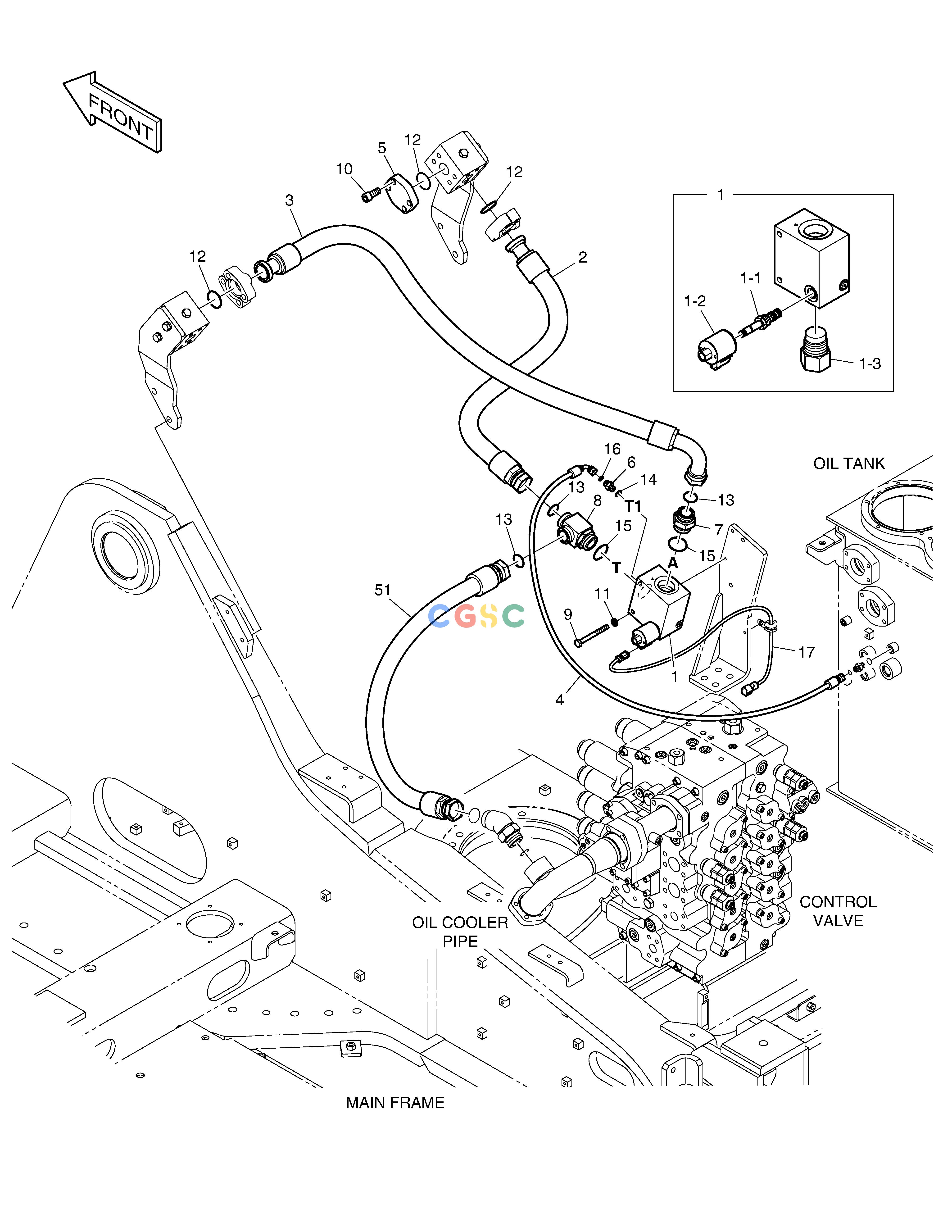

斗山零件查询MAIN PIPING(8) - ONE WAY DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08061
|
[-] |
|
|
| 1. |
410127-00067A
|
[1] |
|
|
| 1-1. |
410116-00694
|
[1] |
|
|
| 1-2. |
300715-00032
|
[1] |
|
|
| 1-3. |
410116-00695
|
[1] |
|
|
| 10. |
S2218366
|
[4] |
|
|
| 11. |
S5010613
|
[2] |
WASHER
|
|
| 12. |
2180-1026D23
|
[3] |
O-RING
|
|
| 13. |
2180-1026D37
|
[3] |
O-RING
|
|
| 14. |
S8000111
|
[1] |
O-RING
|
|
| 15. |
S8000381
|
[2] |
O-RING
|
|
| 16. |
S8030041
|
[1] |
O-RING
|
|
| 17. |
310207-00858A
|
[1] |
|
|
| 2. |
DS2016221
|
[1] |
|
|
| 3. |
DS2025170
|
[1] |
|
|
| 4. |
DS2121008
|
[1] |
|
|
| 5. |
2181-2157D8
|
[1] |
FLANGE
|
|
| 51. |
DS20111414
|
[1] |
|
|
| 6. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 7. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 8. |
DS2412028
|
[1] |
|
|
| 9. |
S0559466
|
[2] |
|
|
