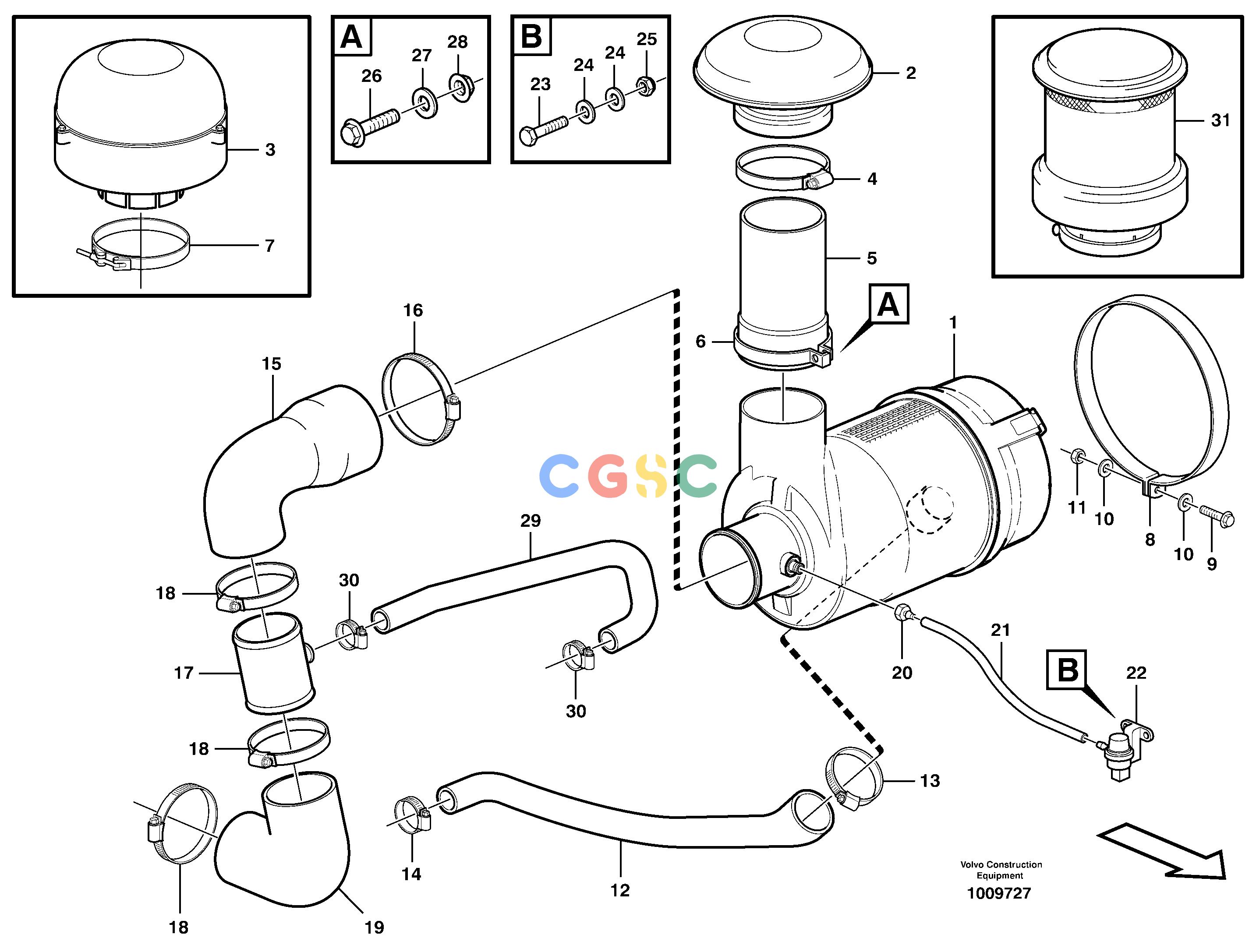

沃尔沃零件查询L50E Air filter with fitting partsBRAZIL, S/N 71001 -33757-82289VOE33757NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
668 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Air filter
|
E PROD
|
| |
|
[1] |
Air filter
|
L PROD
|
| 2. |
VOE11110213
|
[1] |
Cover
|
|
| 3. |
VOE11110436
|
|
Pre-cleaner
|
|
| 4. |
VOE943484
|
[1] |
Hose clamp
|
|
| 4. |
VOE943483
|
|
Hose clamp
|
|
| 5. |
VOE11172846
|
[1] |
Tube
|
|
| 5. |
VOE11110446
|
|
Extension pipe
|
|
| 6. |
VOE983099
|
[1] |
Clamp
|
|
| 7. |
VOE1544733
|
[0000] |
Hose clamp
|
|
| 8. |
VOE11172849
|
[2] |
Tensioning band
|
|
| 9. |
VOE13945444
|
[2] |
Screw
|
|
| 10. |
VOE13955894
|
[4] |
Washer
|
|
| 11. |
VOE13945408
|
[2] |
Nut
|
|
| 12. |
VOE11172848
|
[1] |
Air hose
|
|
| 13. |
VOE943479
|
[1] |
Hose clamp
|
|
| |
VOE943480
|
|
Hose clamp
|
|
| 14. |
VOE943476
|
[1] |
Hose clamp
|
|
| 15. |
VOE11410420
|
[1] |
Air hose
|
|
| 16. |
VOE943484
|
[1] |
Hose clamp
|
|
| 17. |
VOE11410421
|
[1] |
Inlet manifold
|
|
| 18. |
VOE943482
|
[3] |
Hose clamp
|
|
| 19. |
VOE11410419
|
[1] |
Air hose
|
|
| 20. |
VOE11033365
|
[1] |
Nipple
|
|
| 21. |
VOE943727
|
[REQ] |
Hose
|
L = 230 MM
|
| 22. |
VOE11039197
|
[1] |
Vacuum switch
|
SE208
|
| 23. |
VOE13955247
|
[2] |
Screw
|
|
| 24. |
VOE13960138
|
[4] |
Washer
|
|
| 25. |
VOE946577
|
[2] |
Lock nut
|
|
| 26. |
VOE13965185
|
[1] |
Screw
|
|
| 27. |
VOE13960143
|
[1] |
Washer
|
|
| 28. |
VOE13971095
|
[1] |
Flange nut
|
|
| 29. |
VOE11410463
|
[1] |
Air hose
|
|
| 30. |
VOE13943474
|
[2] |
Hose clamp
|
|
| 31. |
VOE16802765
|
[0000] |
Pre-cleaner
|
|
