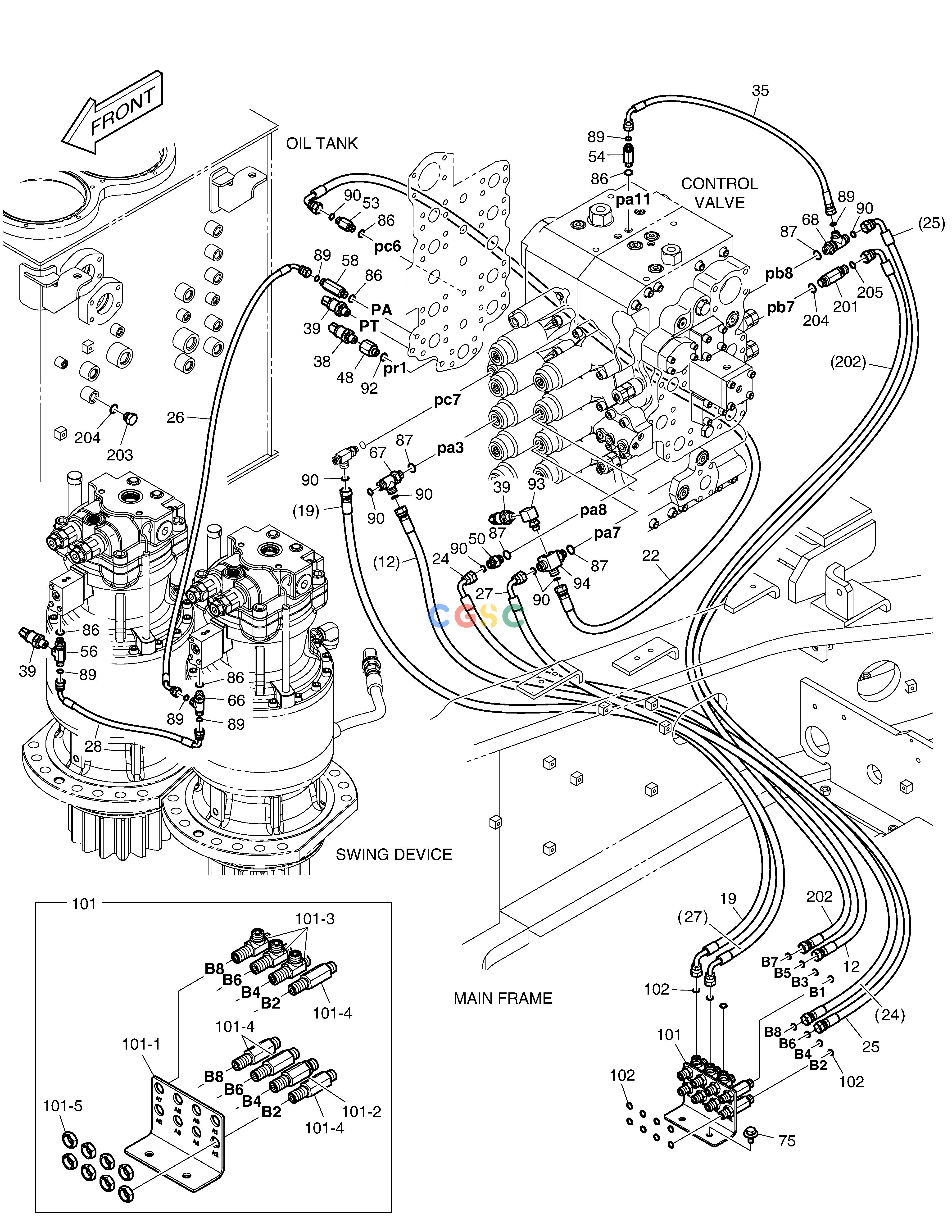

斗山零件查询PILOT PIPING(3) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
906 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-08171
|
[-] |
|
|
| 101. |
430216-00197A
|
[1] |
|
|
| 101-1. |
250122-00080
|
[1] |
|
|
| 101-2. |
410133-00003D2
|
[1] |
|
|
| 101-3. |
DS2416002
|
[3] |
|
|
| 101-4. |
DS2415019
|
[4] |
|
|
| 101-5. |
DS0301032
|
[8] |
NUT
|
|
| 102. |
S8030061
|
[19] |
O-RING
|
|
| 12. |
DS2119256
|
[1] |
|
|
| 19. |
DS2121040
|
[1] |
|
|
| 201. |
410133-00004D2
|
[1] |
|
|
| 202. |
DS2121140
|
[1] |
|
|
| 203. |
2181-1950D2
|
[1] |
PLUG
|
|
| 204. |
S8000141
|
[2] |
O-RING
|
|
| 205. |
S8030061
|
[1] |
O-RING
|
|
| 22. |
DS2121263
|
[1] |
|
|
| 24. |
DS2121301
|
[1] |
|
|
| 25. |
DS2121373
|
[1] |
|
|
| 26. |
DS2122109
|
[1] |
|
|
| 27. |
DS2123128
|
[1] |
|
|
| 28. |
DS2141011
|
[1] |
|
|
| 35. |
DS2143051
|
[1] |
|
|
| 38. |
2547-9045
|
[1] |
SENSOR;PRESSURE
|
|
| 39. |
K1057340
|
[3] |
SENSOR,PRESSURE
|
|
| 48. |
2181-2337D4
|
[1] |
|
|
| 50. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 53. |
2181-4133D42
|
[1] |
ADAPTER
|
|
| 54. |
2181-4133D44
|
[1] |
ADAPTER
|
|
| 56. |
430201-00129
|
[1] |
ADAPTER
|
|
| 58. |
DS2232099
|
[1] |
ADAPTER
|
|
| 66. |
181-00121D1
|
[1] |
TEE
|
|
| 67. |
181-00121D2
|
[1] |
TEE
|
|
| 68. |
181-00121D4
|
[1] |
TEE
|
|
| 75. |
DS0025017
|
[2] |
BOLT
|
|
| 86. |
S8000111
|
[5] |
O-RING
|
|
| 87. |
S8000141
|
[4] |
O-RING
|
|
| 89. |
S8030041
|
[5] |
O-RING
|
|
| 90. |
S8030061
|
[8] |
O-RING
|
|
| 92. |
S8040061
|
[1] |
O-RING
|
|
| 93. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 94. |
430225-00218
|
[1] |
|
|
