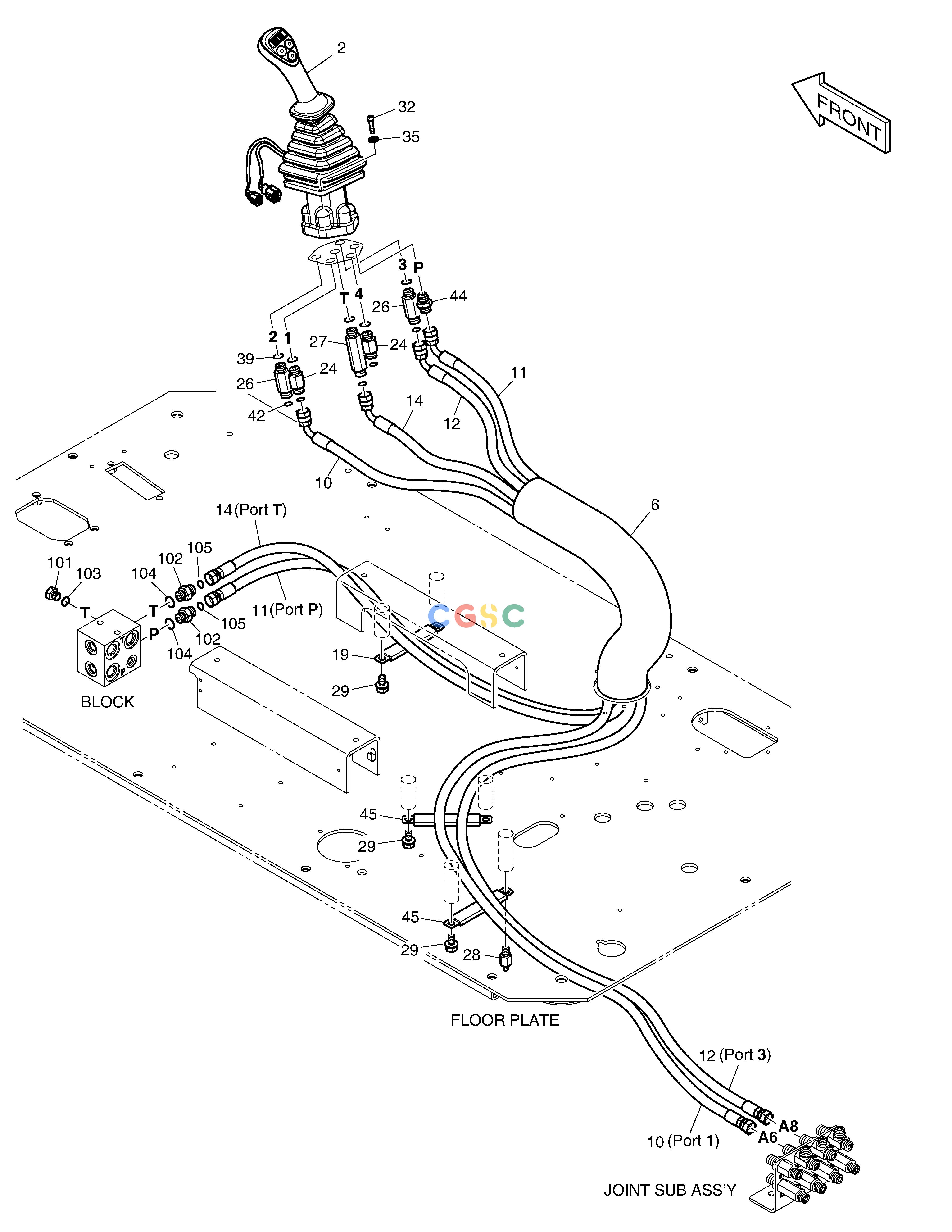

斗山零件查询PILOT PIPING(9) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
504 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-10568B
|
[-] |
|
|
| 10. |
DS2113029
|
[1] |
|
|
| 101. |
2181-1950D1
|
[1] |
PLUG
|
|
| 102. |
DS2232038
|
[2] |
ADAPTER
|
|
| 103. |
S8000111
|
[1] |
O-RING
|
|
| 104. |
S8000141
|
[2] |
O-RING
|
|
| 105. |
S8030061
|
[2] |
O-RING
|
|
| 11. |
DS2113043
|
[1] |
|
|
| 12. |
DS2113049
|
[1] |
|
|
| 14. |
DS2113054
|
[1] |
|
|
| 19. |
120202-00008
|
[1] |
|
|
| 2. |
410113-00212B
|
[1] |
|
|
| 24. |
2181-4133D24
|
[2] |
ADAPTER
|
|
| 26. |
DS2232085
|
[2] |
ADAPTER
|
|
| 27. |
DS2232169
|
[1] |
|
|
| 28. |
DS0014013
|
[1] |
|
|
| 29. |
DS0025042
|
[3] |
BOLT
|
|
| 32. |
S2205066
|
[4] |
BOLT
|
|
| 35. |
S5010313
|
[4] |
WASHER
|
|
| 39. |
S8000141
|
[5] |
O-RING
|
|
| 42. |
S8030061
|
[5] |
O-RING
|
|
| 44. |
300202-00029
|
[1] |
|
|
| 45. |
120202-00267
|
[2] |
|
|
| 6. |
K1003945
|
[1] |
PROTECTOR
|
|
