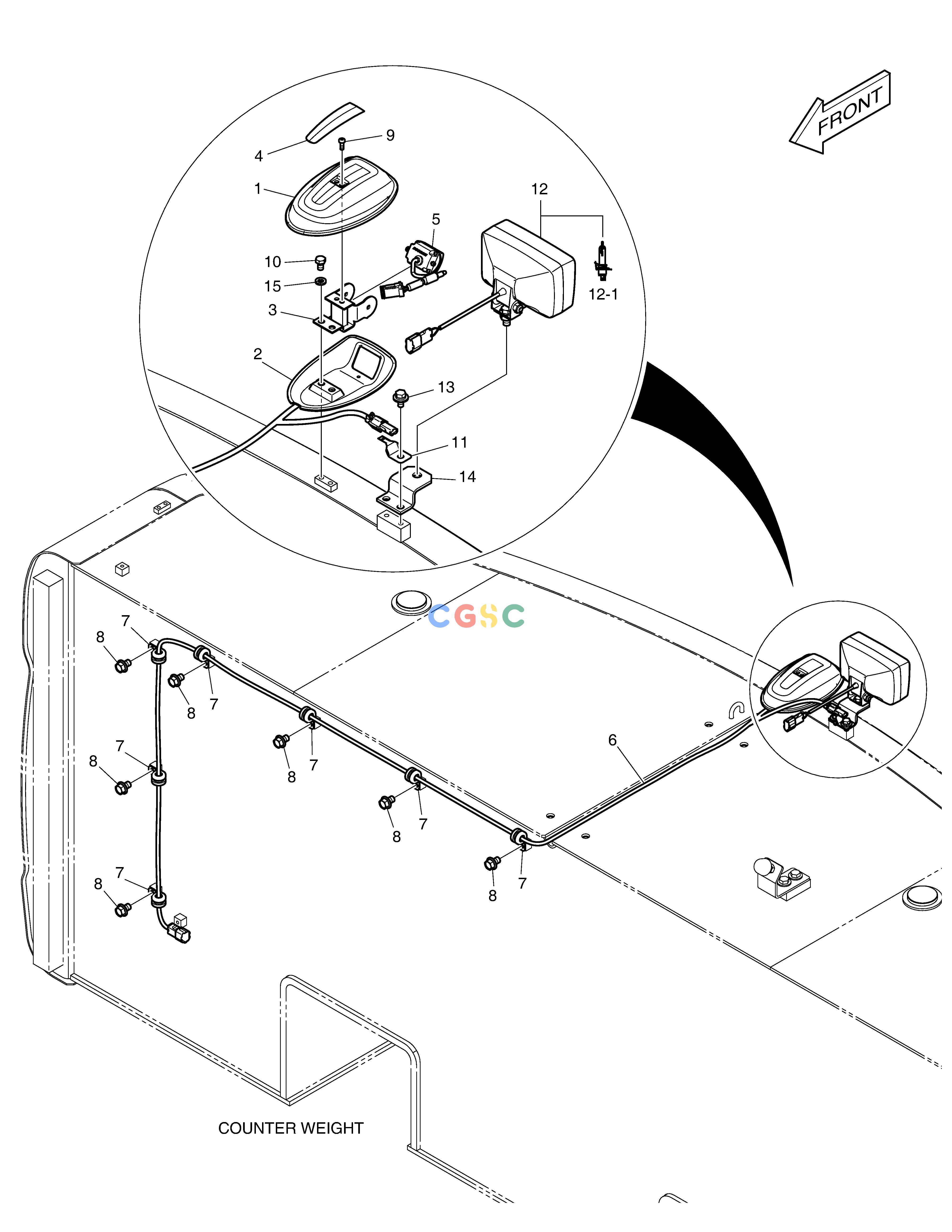

斗山零件查询REAR VIEW CAMERA & REAR LAMP DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
117 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02435
|
[-] |
|
|
| 1. |
K1044160A
|
[1] |
COVER
|
|
| 10. |
S0508566
|
[2] |
BOLT
|
|
| 11. |
2197-1661
|
[1] |
BRACKET
|
|
| 12. |
K1055454
|
[1] |
|
|
| 12-1. |
2515-1016D4
|
[1] |
. BULB,HALOGEN
|
|
| 13. |
DS0025033
|
[2] |
BOLT
|
|
| 14. |
195-02775A
|
[1] |
PLATE
|
|
| 15. |
S5102503
|
[2] |
. WASHER
|
|
| 2. |
K1044180A
|
[1] |
COVER
|
|
| 3. |
K1044181A
|
[1] |
BRACKET
|
|
| 4. |
K1044481A
|
[1] |
TAPE
|
|
| 5. |
301102-00021
|
[1] |
CAMERA
|
|
| 6. |
310207-03028B
|
[1] |
|
|
| 7. |
124-00208D1
|
[7] |
CLIP
|
|
| 8. |
K1001029
|
[7] |
BOLT
|
|
| 9. |
2120-2166D8
|
[2] |
BOLT
|
|
