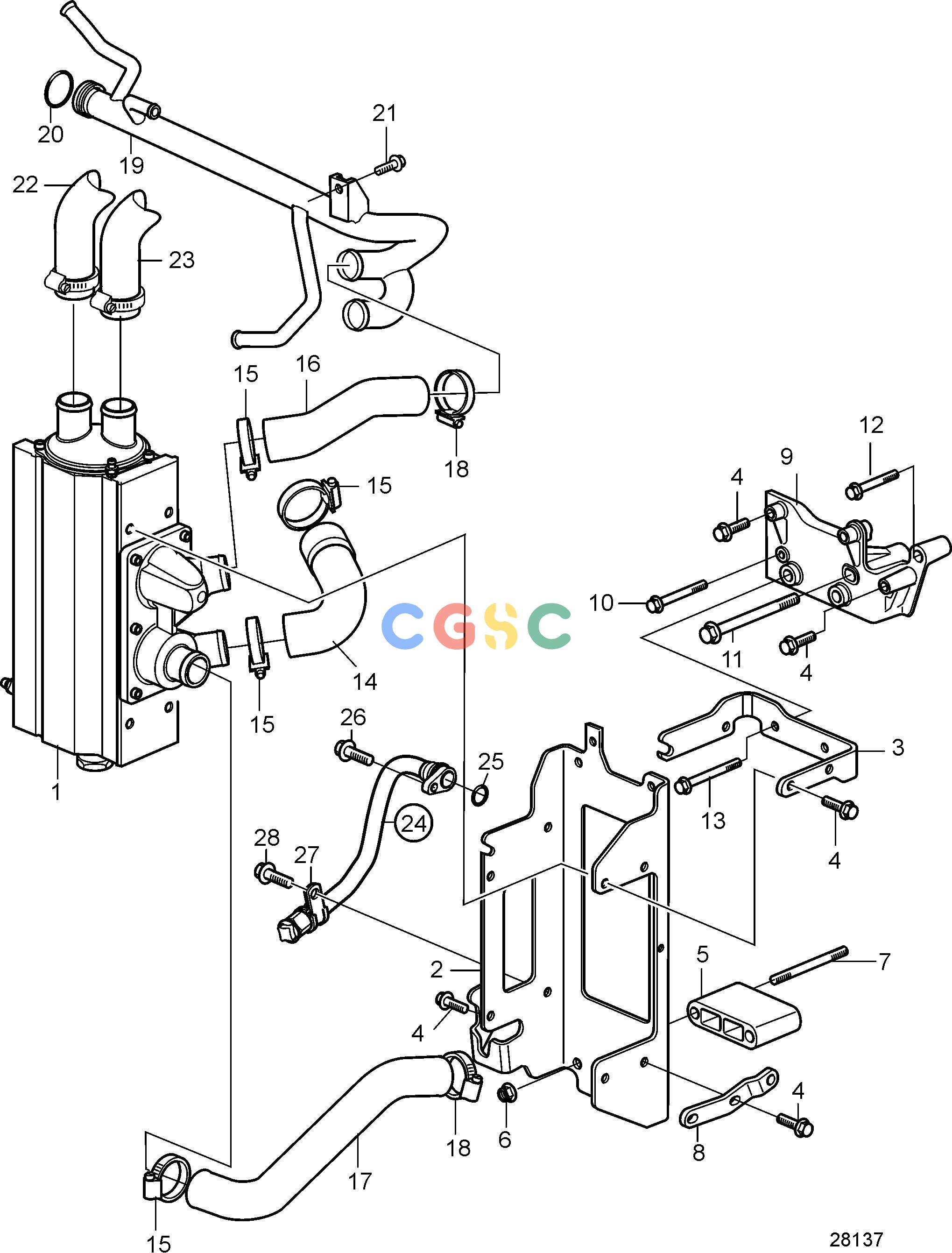

沃尔沃零件查询D3-110I-H; D3-140A-H; D3-140I-H; D3-150I-H; D3-170A-H; D3-170I-H; D3-200A-H; D3-200I-H; D3-220A-H; D3-220I-HCooling SystemHeat Exchanger with Installation PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
271 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22004363
|
[1] |
Heat exchanger
|
|
| 2. |
21572462
|
[1] |
Bracket
|
|
| 3. |
21308169
|
[1] |
Stay
|
|
| 4. |
946671
|
[11] |
Flange screw
|
M8x30mm
|
| 5. |
21306599
|
[1] |
Profile
|
|
| 6. |
971095
|
[2] |
Flange nut
|
|
| 7. |
953084
|
[2] |
Stud
|
M10x110mm
|
| 8. |
21406493
|
[1] |
Stay
|
|
| 9. |
21514338
|
[1] |
Bracket
|
|
| 10. |
968172
|
[1] |
Flange screw
|
M7x90mm
|
| 11. |
969313
|
[1] |
Flange screw
|
|
| 12. |
965187
|
[1] |
Flange screw
|
M10x60mm
|
| 13. |
969445
|
[2] |
Flange screw
|
|
| 14. |
21166146
|
[1] |
Hose
|
|
| 15. |
22274885
|
[4] |
Hose clamp
|
|
| 16. |
21166149
|
[1] |
Hose
|
|
| 17. |
21454184
|
[1] |
Hose
|
|
| 18. |
961669
|
[2] |
Hose clamp
|
|
| 19. |
21591184
|
[1] |
Inlet pipe
|
|
| 20. |
976045
|
[1] |
O-ring
|
|
| 21. |
984725
|
[1] |
Flange screw
|
|
| 22. |
21202798
|
[1] |
Hose
|
Inboard
|
| 22. |
21104921
|
[1] |
Hose
|
AQ
|
| 23. |
22004801
|
[1] |
Hose
|
Charge air cooler-Heat exchanger, Without servo pump.
|
| 23. |
22004787
|
[1] |
Hose
|
Servo Oil Cooler-Heat Exchanger, Replaced by 22990055
|
| 23. |
22990055
|
[1] |
Hose
|
Servo Oil Cooler-Heat Exchanger
|
| 24. |
21501494
|
[1] |
Hose
|
|
| 25. |
982292
|
[1] |
O-ring
|
|
| 26. |
984725
|
[1] |
Flange screw
|
|
| 27. |
947827
|
[1] |
Clamp
|
|
| 28. |
946501
|
[1] |
Flange screw
|
|
