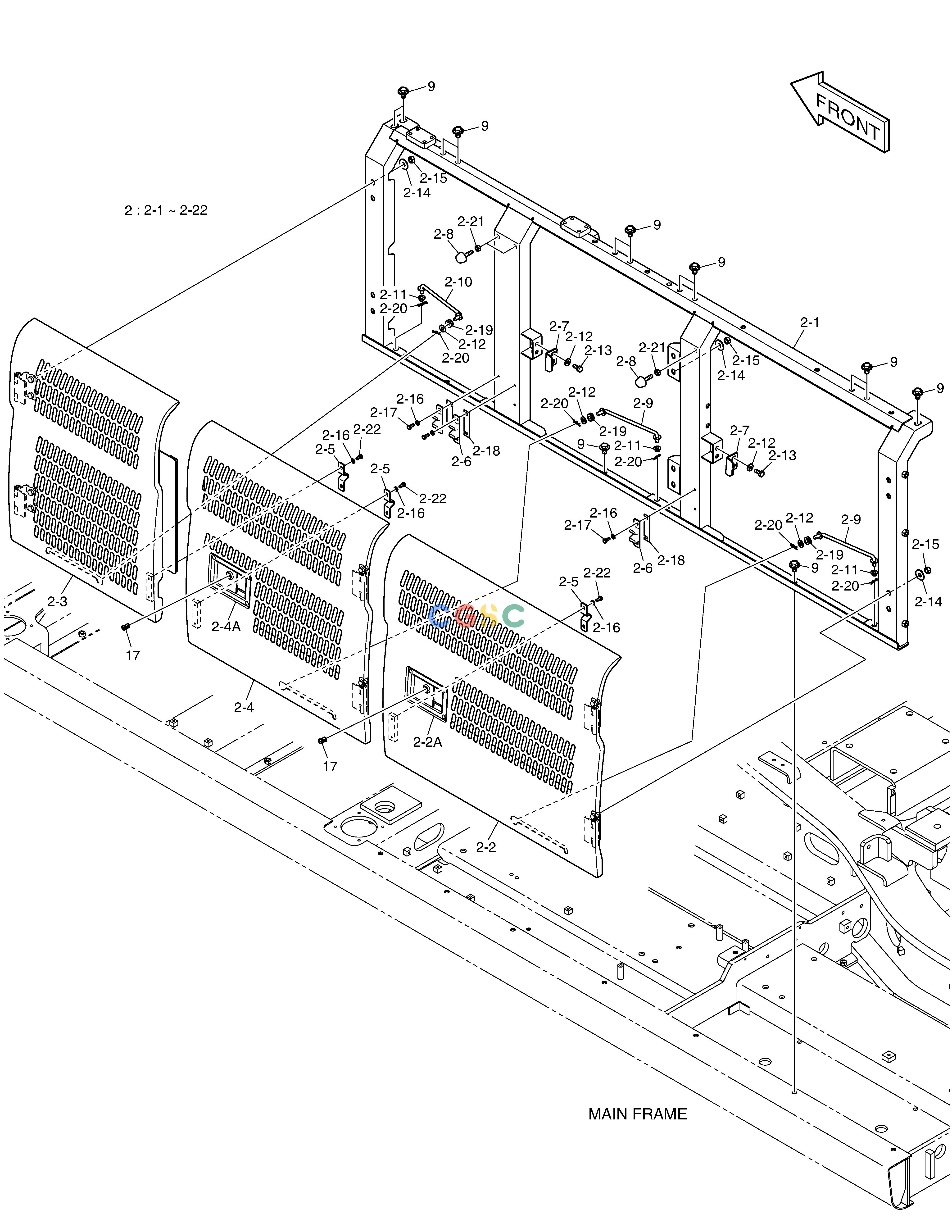

斗山零件查询SIDE DOOR - L.H DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
770 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110508-12571
|
[-] |
|
|
| 17. |
K1004630
|
[2] |
CYLINDER;KEY
|
|
| 2. |
110982-00655C
|
[2] |
|
|
| 2-1. |
110958-01878C
|
[1] |
|
|
| 2-10. |
101582-00618
|
[1] |
|
|
| 2-11. |
K1000602
|
[3] |
. BUSHING
|
|
| 2-12. |
2114-1058D45
|
[7] |
. WASHER
|
|
| 2-13. |
S0512066
|
[4] |
. BOLT
|
|
| 2-14. |
2114-1058D30
|
[12] |
. WASHER
|
|
| 2-15. |
S4012733
|
[12] |
NUT
|
|
| 2-16. |
S5010313
|
[12] |
WASHER
|
|
| 2-17. |
S0504653
|
[6] |
. BOLT
|
|
| 2-18. |
110947-00027
|
[3] |
. SHIM
|
|
| 2-19. |
K1008335
|
[3] |
. BUSHING
|
|
| 2-2. |
110982-00656
|
[1] |
|
|
| 2-20. |
2705-9002
|
[6] |
PIN
|
|
| 2-21. |
S4012633
|
[3] |
NUT
|
|
| 2-22. |
S0504553
|
[6] |
BOLT
|
|
| 2-2A. |
125-00034A
|
[1] |
LOCK
|
|
| 2-3. |
110982-00417B
|
[1] |
|
|
| 2-4. |
110982-00657
|
[1] |
|
|
| 2-4A. |
125-00034A
|
[1] |
LOCK
|
|
| 2-5. |
250201-00028
|
[3] |
. PLATE
|
|
| 2-6. |
110956-00002A
|
[3] |
. STOPPER
|
|
| 2-7. |
621-02726A
|
[2] |
. PLATE,LOCK
|
|
| 2-8. |
K1001260A
|
[3] |
STOPPER
|
|
| 2-9. |
101582-00619
|
[2] |
|
|
| 9. |
DS0025015
|
[18] |
BOLT
|
|
