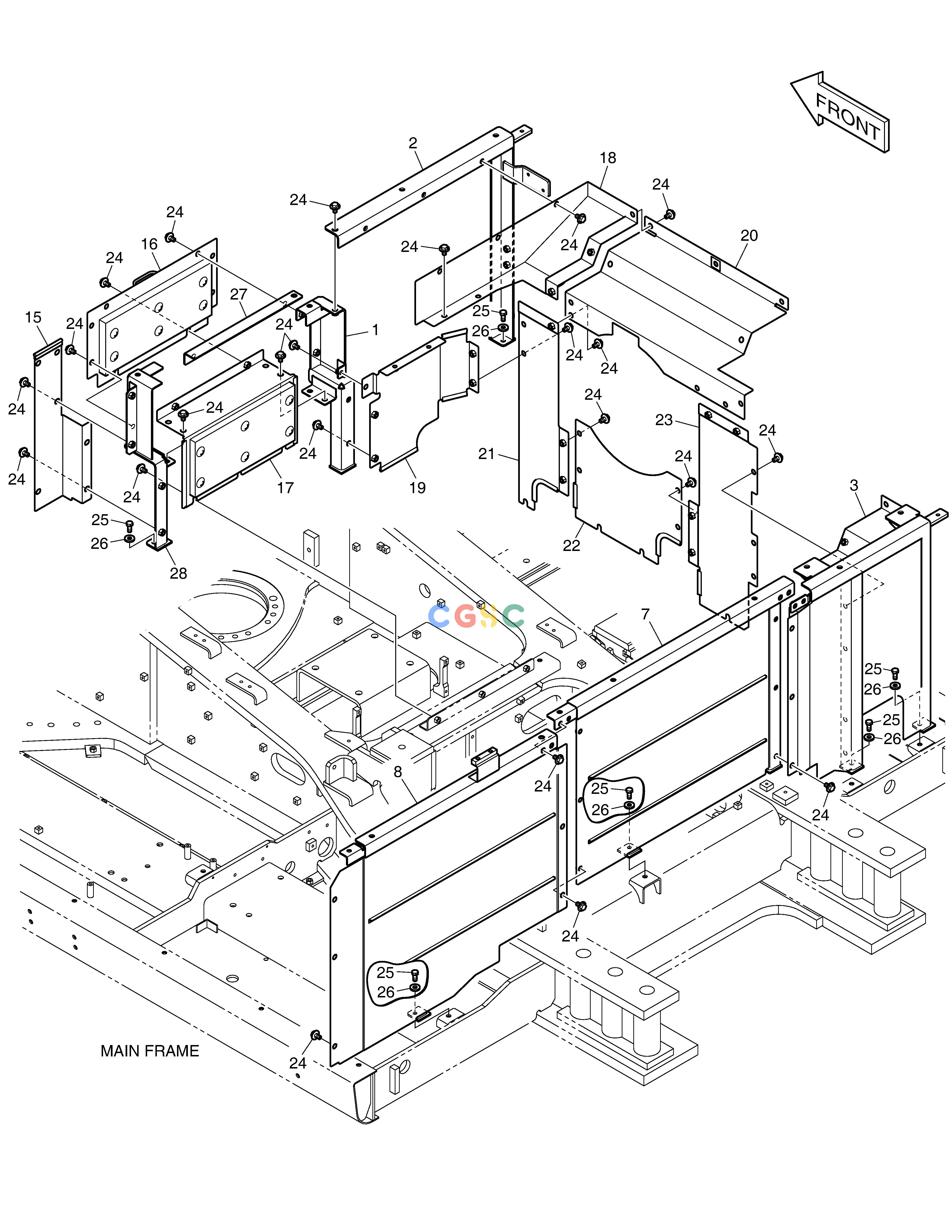

斗山零件查询SUPPORT & BAFFLE(1) DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
586 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
110958-02471
|
[-] |
|
|
| 1. |
110958-02434B
|
[1] |
|
|
| 15. |
110502-00719B
|
[1] |
|
|
| 16. |
110502-00961A
|
[1] |
|
|
| 17. |
110502-00962A
|
[1] |
|
|
| 18. |
110502-00723A
|
[1] |
|
|
| 19. |
110502-00724E
|
[1] |
|
|
| 2. |
110958-01888C
|
[1] |
|
|
| 20. |
110502-00722B
|
[1] |
|
|
| 21. |
110502-00725A
|
[1] |
|
|
| 22. |
110502-00727A
|
[1] |
|
|
| 23. |
110502-00728C
|
[1] |
|
|
| 24. |
DS0025015
|
[63] |
BOLT
|
|
| 25. |
S0515166
|
[8] |
BOLT
|
|
| 26. |
120810-00100
|
[8] |
|
|
| 27. |
110958-02435A
|
[1] |
|
|
| 28. |
110958-02436B
|
[1] |
|
|
| 3. |
110958-01889E
|
[1] |
|
|
| 7. |
110958-02474A
|
[1] |
|
|
| 8. |
110958-01875E
|
[1] |
|
|
