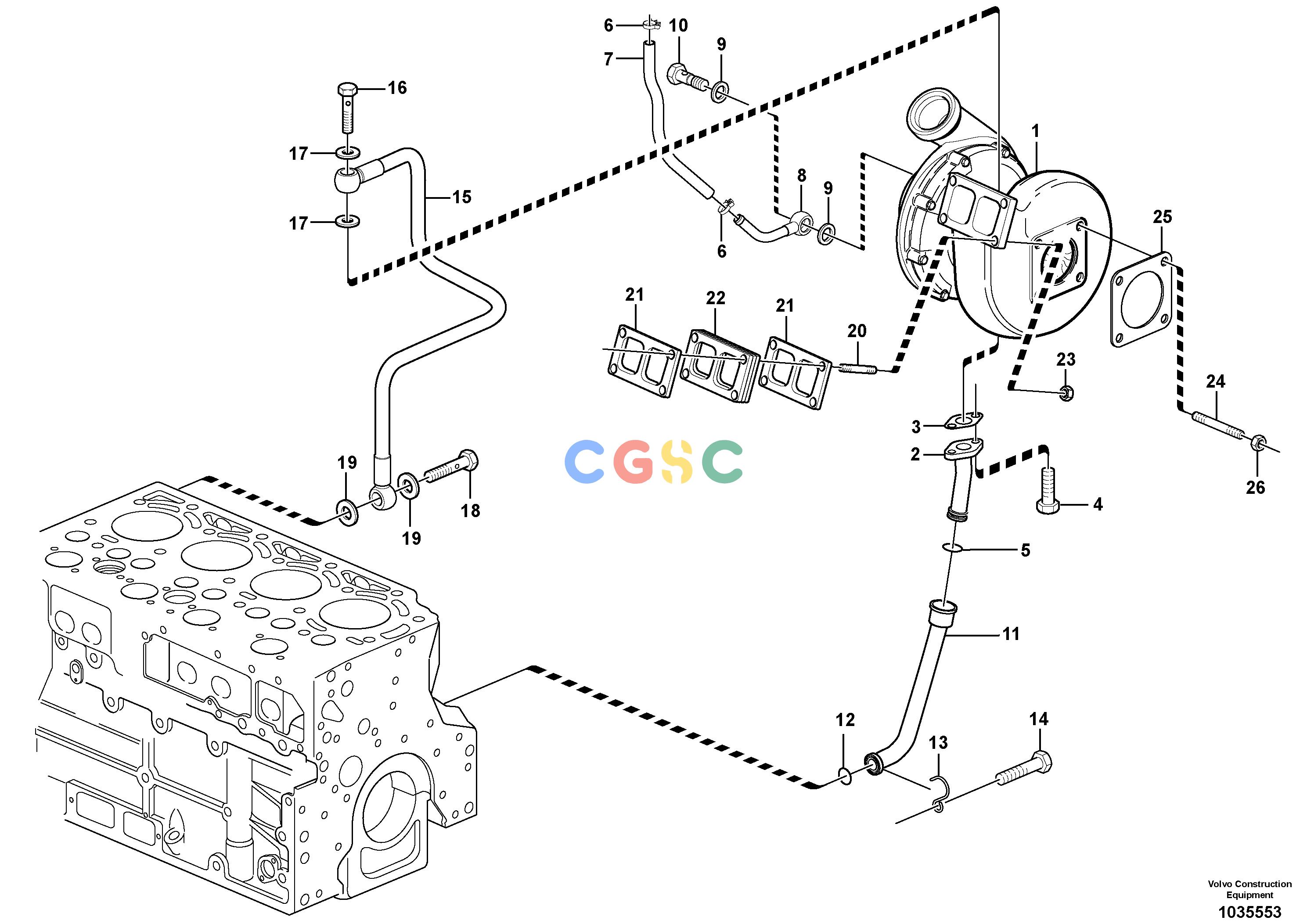

沃尔沃零件查询L50F Turbocharger with fitting partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
478 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21179874
|
[1] |
Turbocharger
|
|
| 2. |
VOE21027478
|
[1] |
Connection flange
|
|
| 3. |
VOE21027485
|
[1] |
Gasket
|
|
| 4. |
VOE13949578
|
[2] |
Screw
|
|
| 5. |
VOE20459172
|
[1] |
Sealing ring
|
|
| 6. |
VOE20405568
|
[2] |
Clip
|
|
| 7. |
VOE21269134
|
[1] |
Hose
|
|
| 8. |
VOE21179026
|
[1] |
Tube
|
|
| 9. |
VOE20971248
|
[2] |
Sealing ring
|
|
| 10. |
VOE888767
|
[1] |
Hollow screw
|
|
| 11. |
VOE21455776
|
[1] |
Return line
|
|
| 12. |
VOE20405822
|
[1] |
Sealing ring
|
|
| 13. |
VOE21524802
|
[1] |
Hook
|
|
| 14. |
VOE20405792
|
[1] |
Screw
|
|
| 15. |
VOE21171388
|
[1] |
Feed line
|
|
| 16. |
VOE20795867
|
[1] |
Hollow screw
|
|
| 17. |
VOE13947281
|
[2] |
Gasket
|
|
| 18. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 19. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 20. |
VOE20921970
|
[4] |
Stud
|
|
| 21. |
VOE21792306
|
[2] |
Gasket
|
|
| 22. |
VOE21165503
|
[1] |
Plate
|
|
| 23. |
VOE21055467
|
[4] |
Hexagon nut
|
|
| 24. |
VOE20459235
|
[4] |
Stud
|
|
| 25. |
VOE20858564
|
[1] |
Gasket
|
|
| 26. |
VOE20517048
|
[4] |
Hexagon nut
|
|
