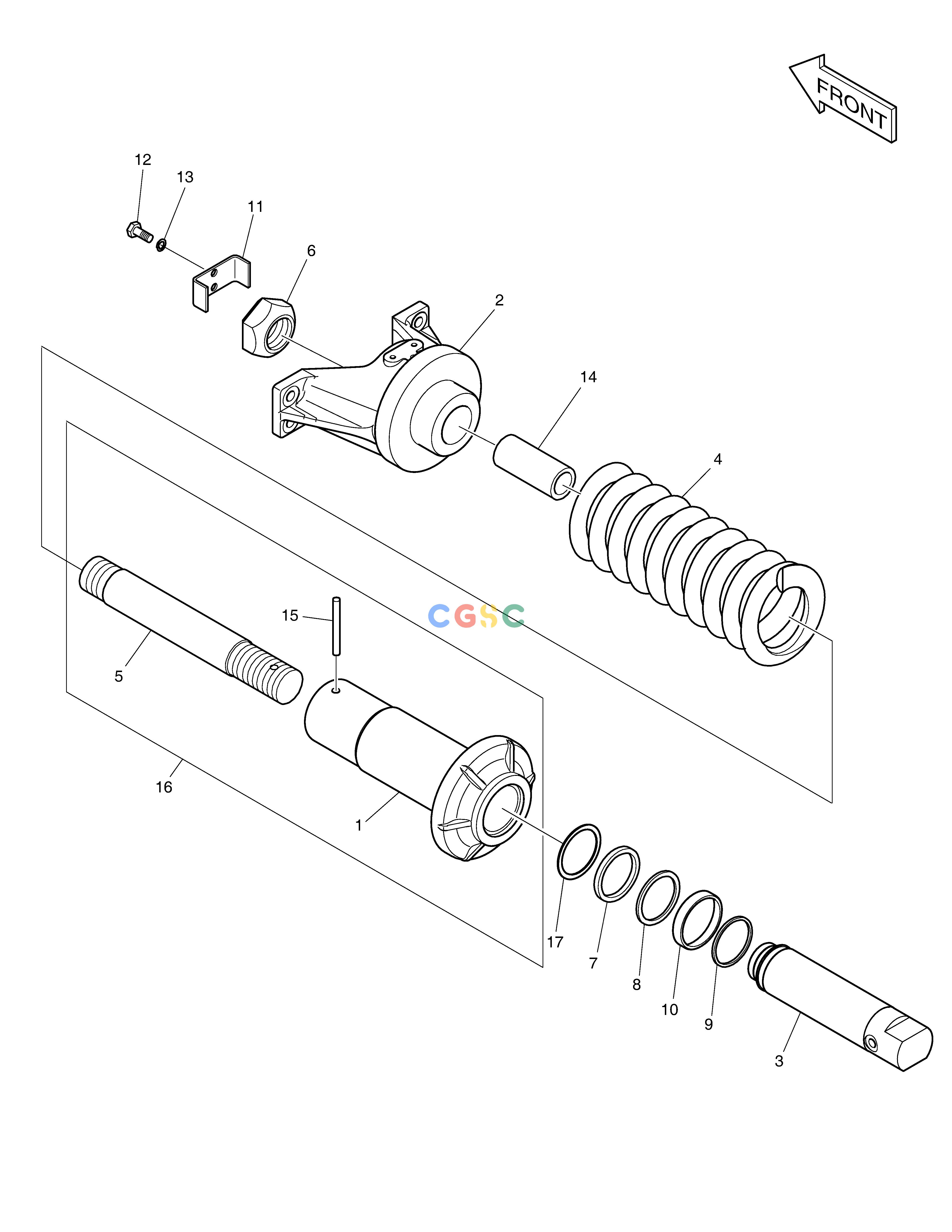

斗山零件查询TRACK SPRING DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
401107-01085
|
[1] |
|
|
| -. |
200101-00002A
|
[1] |
|
|
| 1. |
NA00079
|
[1] |
BODY
|
|
| 10. |
NA01877
|
[1] |
|
|
| 11. |
2621-6019
|
[1] |
PLATE
|
|
| 12. |
S0718351
|
[2] |
BOLT M14X1.5X35
|
|
| 13. |
S5102803
|
[2] |
WASHER
|
|
| 14. |
110956-00018
|
[1] |
|
|
| 15. |
NA01187
|
[1] |
SPRING PIN
|
|
| 16. |
160601-00016
|
[1] |
|
|
| 17. |
S6500750
|
[1] |
RING;RETAINING
|
|
| 2. |
110406-00404
|
[1] |
|
|
| 3. |
120601-00007
|
[1] |
|
|
| 4. |
K1000961A
|
[1] |
SPRING
|
|
| 5. |
110302-00017
|
[1] |
|
|
| 6. |
120306-00008
|
[1] |
|
|
| 7. |
NA00740
|
[1] |
PACKING
|
|
| 8. |
NA03258
|
[1] |
BACK UP RING
|
|
| 9. |
NA01082
|
[1] |
. SEAL
|
|
