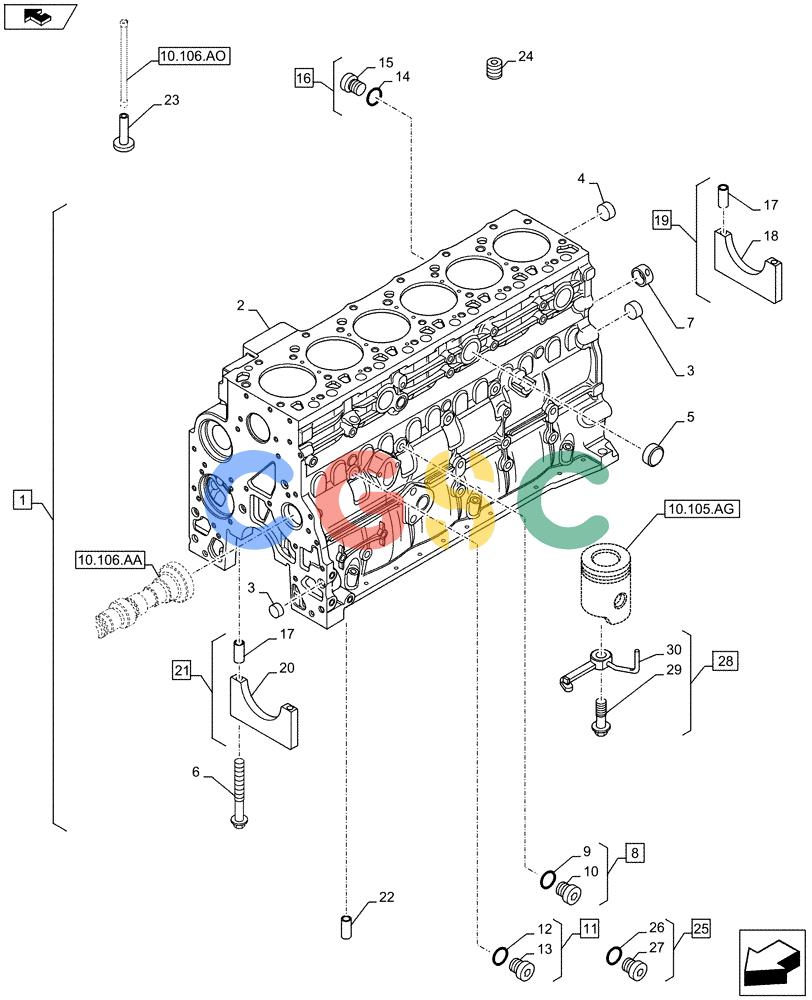

神钢零件查询(F4GE9684G J601) - ENGINE - 504375341 - 84250441 (7/13-) (10.001.AB[01]) - CRANKCASE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
501 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2830076 | [1] | CYLINDER BLOCK,6 Cylinders | TORASSY, Incl 2 - 7, 19, 21 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONCrankcase, Incl in 1 |
| 3. | 4895039 | [3] | EXPANSION PLUG,M17.73 | TOR |
| 4. | 4895038 | [6] | EXPANSION PLUG,M58.06 | TOR |
| 5. | 4895228 | [3] | EXPANSION PLUG,35.23mm x 7.94mm | TOR |
| 6. | 4891353 | [14] | SCREW,Flg Hd, M12 x 1.5 x 120 | TORM12 x 1.5 x 120 |
| 7. | 4895040 | [1] | BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L | TOR |
| 8. | 4895605 | [1] | HEX SOCKET PLUG,M14 x 1.5 | TORASSY, Incl 9, 10 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 8 |
| 10. | 4899115 | [1] | O-RING,2.2mm Thk x 11.3mm ID | TORID = 11.3 x 2.2 |
| 11. | 4899009 | [1] | PLUG,M10 x1 | TORASSY, Incl 12, 13 |
| 12. | 4899072 | [2] | O-RING,1.6mm Thk x 8.1mm ID | TORID = 8.1 x 1.6 |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 11 |
| 14. | 4895393 | [1] | O-RING,2.2mm Thk x 15.3mm ID | TORID = 15.3 x 2.2 |
| 16. | 4895392 | [3] | HEX SOCKET PLUG,M18 x 1.5 | TORASSY, Incl 14, 15 |
| 17. | 4899026 | [4] | DOWEL,M18 x 10 | TOR |
| 19. | 4895921 | [1] | BEARING ASSY,86.1mm D | TORASSY, Incl 17, 18 |
| 20. | 4892951 | [1] | BEARING CAP,24.5 mm | TOR |
| 21. | 4895919 | [6] | BEARING ASSY,86.1mm D | TORASSY, Incl 17, 20 |
| 22. | 4895049 | [2] | DOWEL,M16.05 x 10 | TOR |
| 23. | J931623 | [12] | TAPPET | CAS Superseded by part number: 4895180 |
| 24. | 4895078 | [2] | PIPE PLUG,1/2"-14 | TOR |
| 25. | 4895623 | [1] | HEX SOCKET PLUG,M16 x 1.5 | TORASSY, Incl 26, 27 |
| 26. | 4895625 | [1] | O-RING,13.3mm ID x 2.2mm Width | TORID = 13.3 x 2.2 Superseded by part number: 17281681 |
| 27. | NSS | [1] | NOT SOLD SEPARAT | CONPlug, Incl in 25 |
| 28. | 2852202 | [6] | NOZZLE, PISTON COOLI | TORASSY, Incl 29, 30 Superseded by part number: 5801910166, 5801639154 |
| 29. | 4894218 | [1] | SCREW,Special, M8 x 20 | TOR |
| 30. | 2852203 | [1] | NOZZLE, PISTON COOLI | TOR Superseded by part number: 5801910166, 5801639154 |
