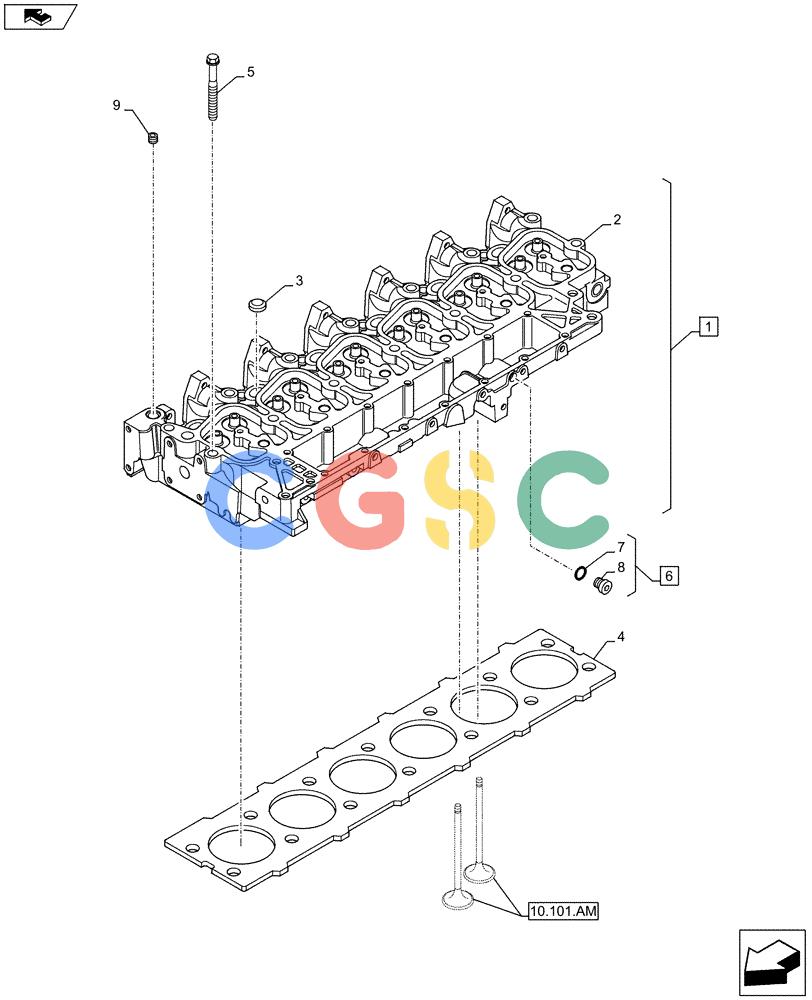

神钢零件查询(F4GE9684G J601) - ENGINE - 504375341 - 84250441 (7/13-) (10.101.AA) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
595 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 3. | 4895179 | [2] | EXPANSION PLUG,M20.93 | TOR |
| 4. | 2830922 | [1] | CYLINDER HEAD GASKET,1.4mm Thk | TOR1.25 mm |
| 4. | 2830923 | [1] | CYLINDER HEAD GASKET,1.15mm Thk | TOR1.15 mm |
| 5. | 4892861 | [6] | CAPTIVE WASHER SCREW,Wash Hd, M12 x 1.75 x 73 | TORM12 x 1.75 x 73 |
| 5. | 4892859 | [14] | BOLT,Flng, M12 x 1.75 x 143mm | TORM12 x 1.75 x 143 |
| 6. | 4899009 | [3] | PLUG,M10 x1 | TOR |
| 7. | 4899072 | [1] | O-RING,1.6mm Thk x 8.1mm ID | TORID = 8.1 x 1.6 |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CON |
