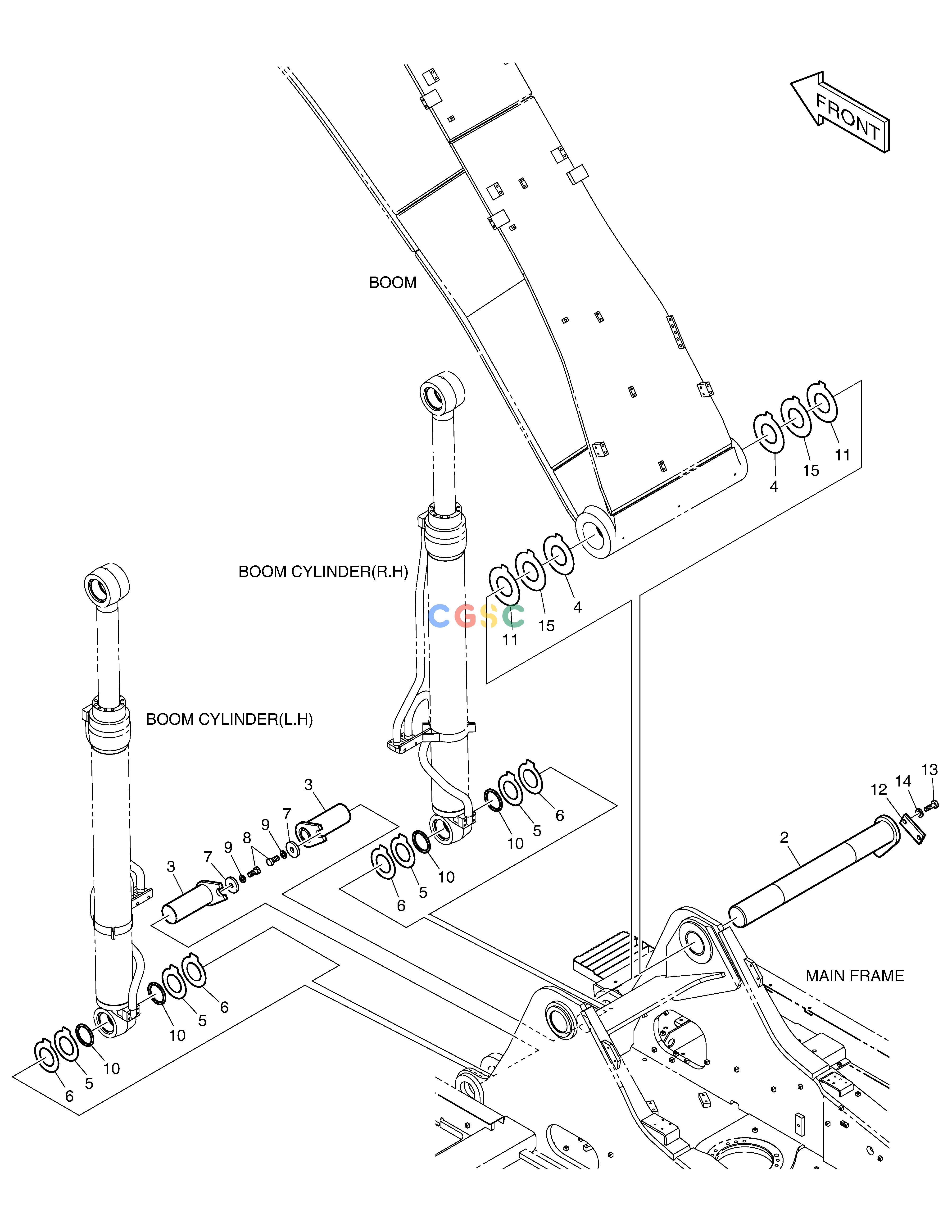

斗山零件查询BOOM MOUNTING DX490LC-5(S/N:10001~10011) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
809 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
650102-00297
|
[-] |
|
|
| 10. |
DS5502015
|
[4] |
PARE-POUSSIERES
|
|
| 11. |
DS7752039
|
[2] |
SHIM
|
|
| 12. |
K1027473
|
[1] |
PLATE
|
|
| 13. |
S0527656
|
[2] |
BOLT
|
|
| 14. |
2114-9012A
|
[2] |
WASHER
|
|
| 15. |
DS7752141
|
[2] |
|
|
| 2. |
120501-00099
|
[1] |
|
|
| 3. |
K1002608C
|
[2] |
PIN
|
|
| 4. |
DS7752038
|
[2] |
SHIM
|
|
| 5. |
DS7752031
|
[4] |
SHIM
|
|
| 6. |
DS7752032
|
[4] |
SHIM
|
|
| 7. |
2116-1060D5
|
[2] |
STOPPER
|
|
| 8. |
S0521456
|
[2] |
BOLT M16X2.0X40
|
|
| 9. |
2114-1816A
|
[2] |
WASHER
|
|
