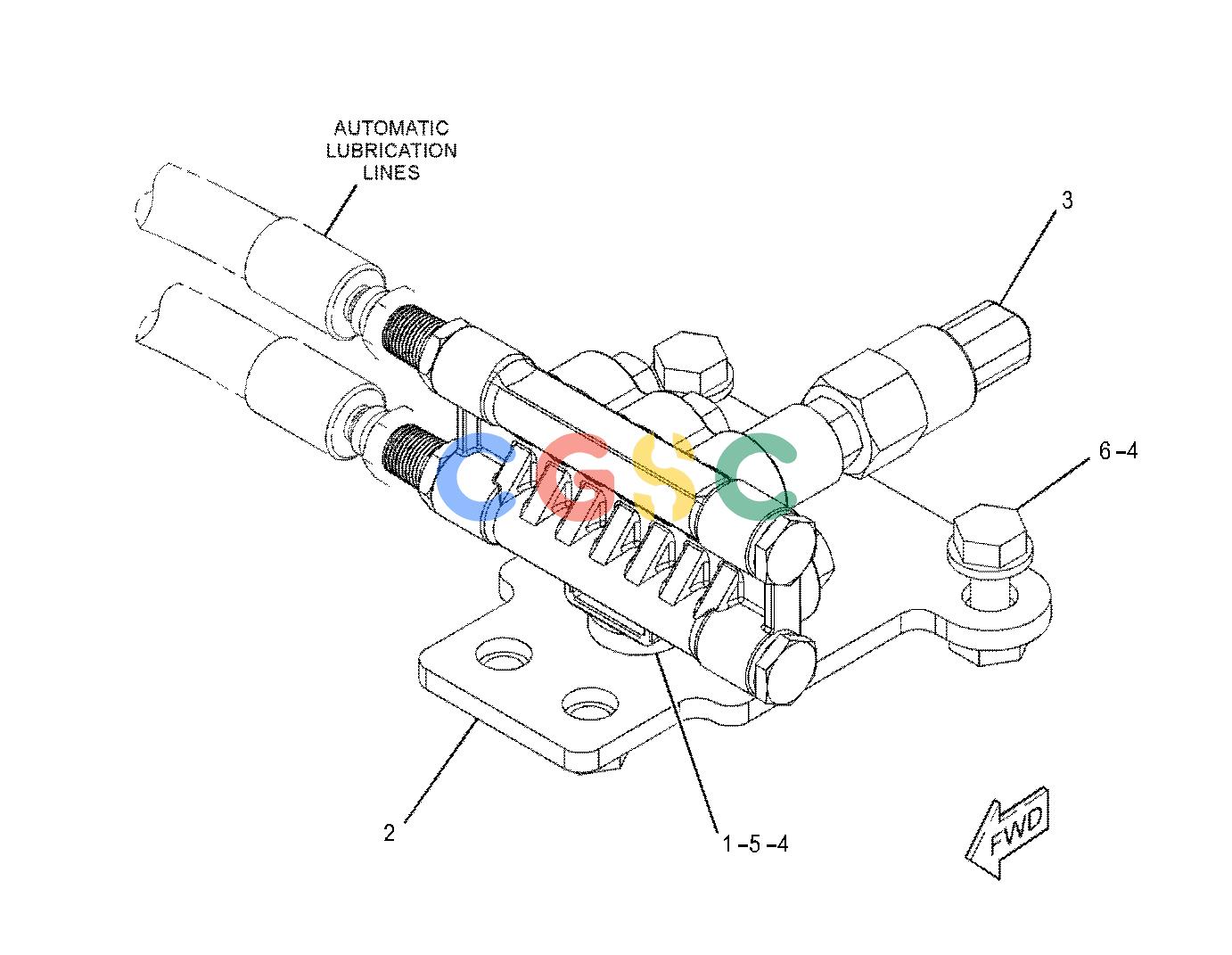

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 147-6513 | [1] | SPACER(12X25X5.6-MM THK) | |
| 2. | 394-8704 | [1] | PLATE AS | |
| 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | ||
| 3. | 395-0101Y | [1] | VALVE GP-LUBE DISTRIBUTION(7-INJECTOR) | |
| 4. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 6. | 8T-4195M | [2] | BOLT(M10X1.5X30-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
