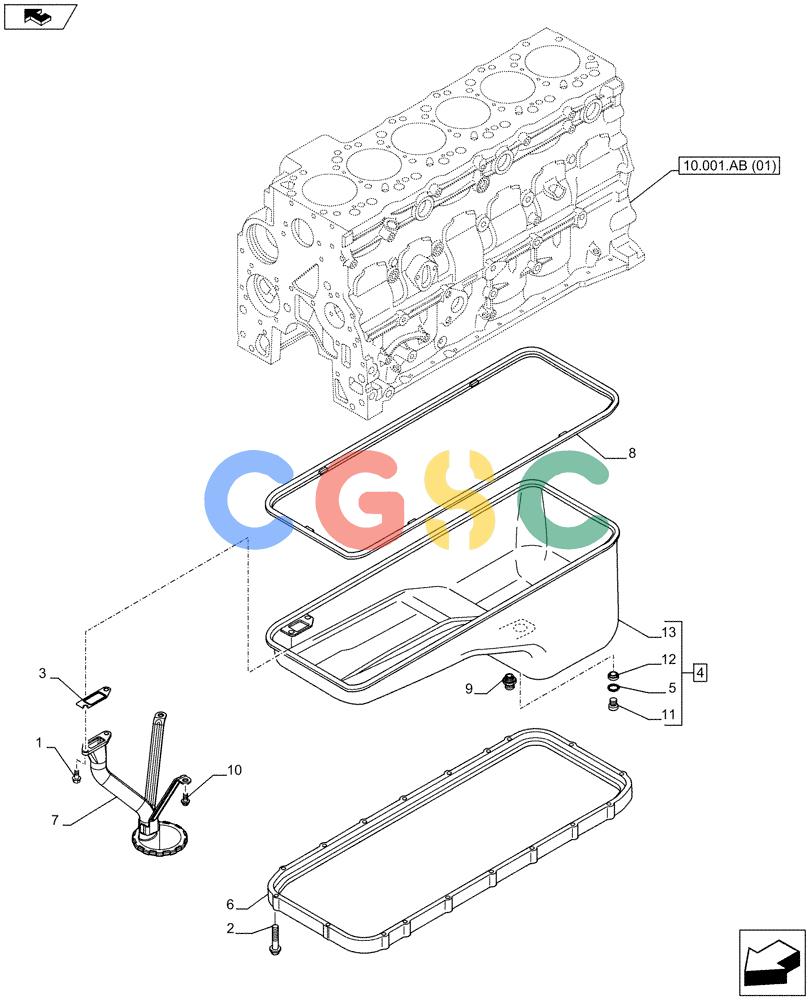

神钢零件查询(F4GE9684G J601) - ENGINE - 504375341 - 84250441 (7/13-) (10.102.AP) - ENGINE OIL PAN Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
799 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899020 | [2] | FLANGE BOLT,Hex, M8 x 1.25 x 20mm | TOR Superseded by part number: 16673635 |
| 2. | 4899091 | [18] | SCREW,Hex Flange Cap, M8 x 1.25 x 40.00mm | BAS |
| 3. | 4898301 | [1] | GASKET,0.42mm Thk | TOR |
| 4. | 2852308 | [1] | ENGINE OIL PAN | TORASSY, Incl 5, 11 - 13 Superseded by part number: 500388254 |
| 5. | 4895584 | [1] | O-RING,0.924mm ID x 0.103mm Width | TOR Superseded by part number: 17282280 |
| 5. | 2853728 | [1] | O-RING,M23.47 ID x 2.62 Thk | TOR Superseded by part number: 14457780 |
| 6. | 4897858 | [1] | SPACER | TOR |
| 7. | 84343612 | [1] | FILTER STRAINER | TOR Superseded by part number: 504388529 |
| 8. | 4897861 | [1] | OIL PAN GASKET SET,17.3mm Thk | TOR |
| 9. | 2853894 | [1] | DRAIN PLUG | TOR Superseded by part number: 504068028 |
| 10. | 4895291 | [3] | SCREW,Hex Flg, M10 x 1.5 x 20 | TOR |
| 11. | 4894139 | [1] | PLUG,Hex Soc, M22 x 1.5 | TOR |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CON |
